 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-069-05124		Well Classification: OW Status: PR - 2/1/2023
Well Name/No:K.W.B. (MUDDY UNIT) #1 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PROSPECT ENERGY LLC - 10312
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/1/2023
FacilityID:216712LocationID:307058
County:LARIMER #069Location:NWNE 19 8N68W 6
Field:FORT COLLINS - #25100Elevation:5110 ft.
Basin:DENVER (DJ) BASIN
Planned Location:530FNL  2480 FELLat/Long: 40.652280 / -105.047562Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.652396 / -105.047511Lat/Long Source: Field Measured

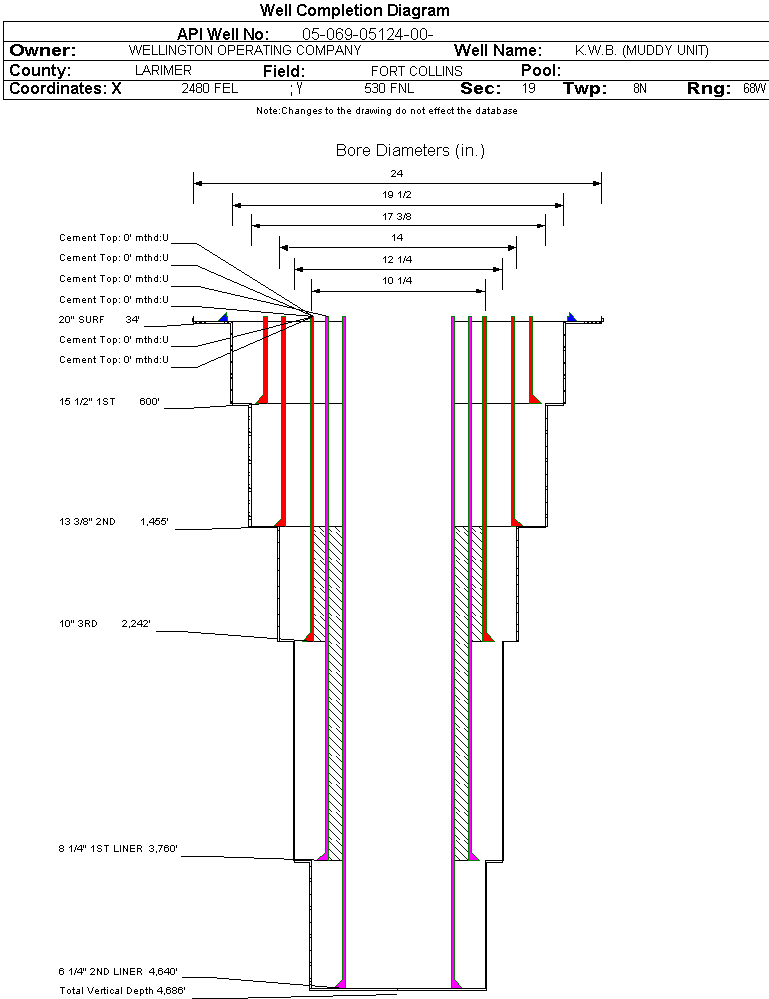

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 2/1/2023             Measured TD: 4686 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 2/1/2023
Wellbore Permit
Permit #:19280000 Expiration Date:6/21/1928
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit:MUDDY SANDSTONE Unit Number:
Wellbore Completed
Completion Date:9/20/1928
Spud Date:2/21/1928Spud Date Is:ACTUAL
Measured TD:4686 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: , Size: 20 in., Top: , Depth: 34 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: , Size: 15.5 in., Top: , Depth: 600 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Casing:String Type: 2ND, Hole Size: , Size: 13.375 in., Top: , Depth: 1455 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Casing:String Type: 3RD, Hole Size: , Size: 10 in., Top: , Depth: 2242 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Casing:String Type: 1ST LINER, Hole Size: , Size: 8.25 in., Top: , Depth: 3760 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Casing:String Type: 2ND LINER, Hole Size: , Size: 6.25 in., Top: , Depth: 4640 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:

Formation MDDY                     Formation Classification:  OW                     Status:  PR - 2/1/2023

 Completed Information for Formation MUDDY
1st Production Date:9/20/1928Choke Size:
Formation Name:MUDDYCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:9/20/1928
Treatment Summary:25,000# SAND, 1,200# ADOMITE, 15,000 GALS MUDDY CRUDE OIL, 2,000 PSI
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/25/1957Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 100
No Perforation Data was found for formation MDDY.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
