COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-067-09653		Well Classification: CBM Status: PR - 6/14/2010
Well Name/No:PAYNE #11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:RIM OPERATING INC - 74650
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/14/2010
FacilityID:300106LocationID:334034
County:LA PLATA #067Location:NWNE 17 32N6W N
Field:IGNACIO BLANCO - #38300Elevation:6266 ft.
Basin:SAN JUAN BASIN
Planned Location:846FNL  1442 FELLat/Long: 37.022120 / -107.519720Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.022120 / -107.519710Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 6/14/2010             Measured TD: 3384 ft.    Vertical TD: 3349 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 6/14/2010
Wellbore PermitDIRECTIONAL
Permit #:20086682 Expiration Date:12/8/2009
Proposed Top PZ Location:Sec:17 Twp: 32N 6W Footage: 1791 FNL  779 FEL
Bottom Hole Location:Sec:17 Twp: 32N 6W Footage: 1994 FNL  673 FEL
Proposed Depth/Form:3384 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: FRLD , Formation: FRUITLAND , Order: 112-209 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:1/11/2009
Spud Date:1/3/2009Spud Date Is:ACTUAL
Measured TD:3384 ft.Measured PB depth:3334 ft.
True Vertical TD:3349 ft.True Vertical PB depth:3299 ft.
Top PZ Location:Sec:17 Twp: 32N 6WFootage: 1791 FNL  779 FEL
Bottom Hole Location:Sec:17 Twp: 32N 6WFootage: 1994 FNL  673 FEL
Log Types:AIT-CNTL CBL WILL BE RUN.COMPLETION OF WELL NOT STARTED.
Log Types:AIT-CNTL CBL

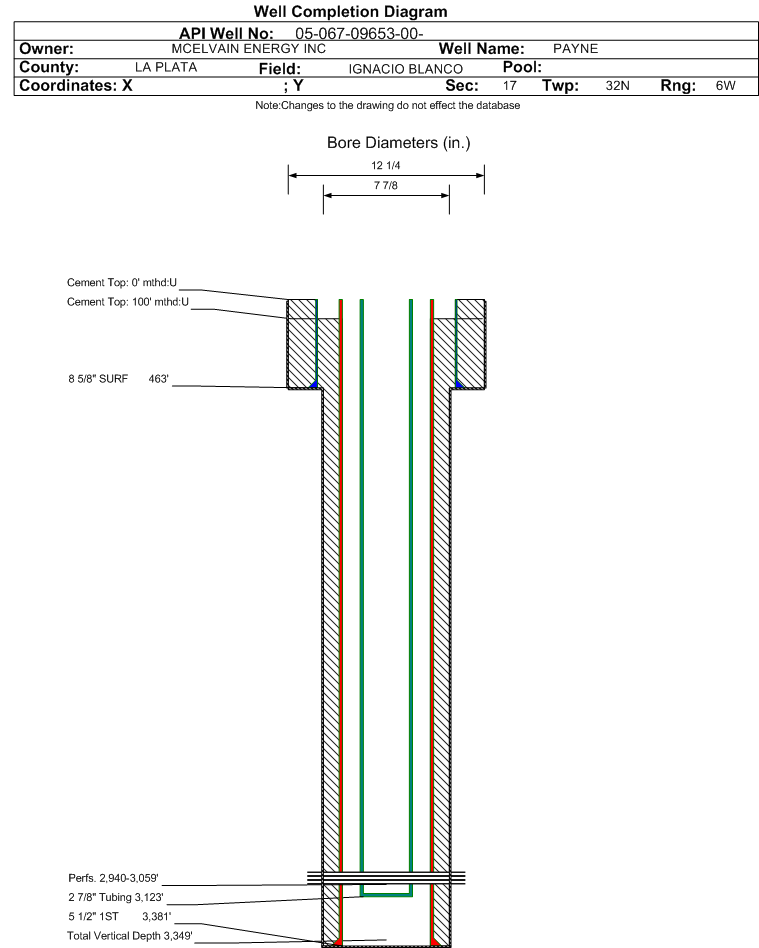

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 463 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 463 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 3381 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 100 ft., Bottom: 3381 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
OJO ALAMO1895 ft.1971 ft.NN
KIRTLAND1972 ft.2907 ft.NN
FRUITLAND2908 ft.3091 ft.NN
PICTURED CLIFFS3092 ft.3391 ft.NN

Formation FRLDC                   Formation Classification:  GW                   Status:  PR - 6/14/2010                 Interval Top: 2940 ft.    Interval Bottom: 3059 ft.

 Completed Information for Formation FRUITLAND COAL
1st Production Date:6/24/2010Choke Size:
Formation Name:FRUITLAND COALCommingled:
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Date:6/6/2010
Treatment Summary:LWR COAL - 1000 GAL 15% HCL, 1,908 BBLS 2% KCL, 9,832# 20/40 SAND, 73,765# 16/30 SAND, 19,712# 16/30 ACTIVATED CRC. UPPR COAL - 500 GAL 15% HCL, 2016 GAL 2% KCL, 10,010# 20/40, 59,568# 16/30, 43,712# 16/30 ACTIVATED CRC.
Tubing Size:2.875 in.Tubing Setting Depth:3123 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/14/2010Test Method:FLOWING
Hours Tested:5Gas Type:COAL GAS
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 18
BTU_GAS 994
CALC_BBLS_H2O 85
CALC_MCF_GAS 374
CASING_PRESS 500
MCF_GAS 78
TUBING_PRESS 220
Perforation Data:
Interval Top:2940 ft.# Of Holes:138
Interval Bottom:3059 ft.Hole Size:0.43 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)88223
GOR
GOR DeterminationMCFE
Average BOE per Day41.627
Average MCFE per Day241.449

 Federal Financial Assurance  i

 Tribal Well  i No
