Wellbore #00 Wellbore Classification: CBM Status: PR - 10/1/2016 Measured TD: 3640 ft. Vertical TD: 3222 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 10/1/2016 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/22/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1473 FSL 1273 FEL | | Bottom Hole Location: | Sec:9 Twp: 32N 7W | Footage: 1560 FSL 1050 FEL | | Proposed Depth/Form: | 3474 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | INDIAN | Surface Owner: | INDIAN | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: FRLDC , Formation: FRUITLAND COAL , Order: 112-181 , Unit Acreage: 320, Drill Unit: S2 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 350 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 220, Top: 0 ft., Bottom: 350 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 3474 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 570, Top: 0 ft., Bottom: 3473 ft. |
| | |

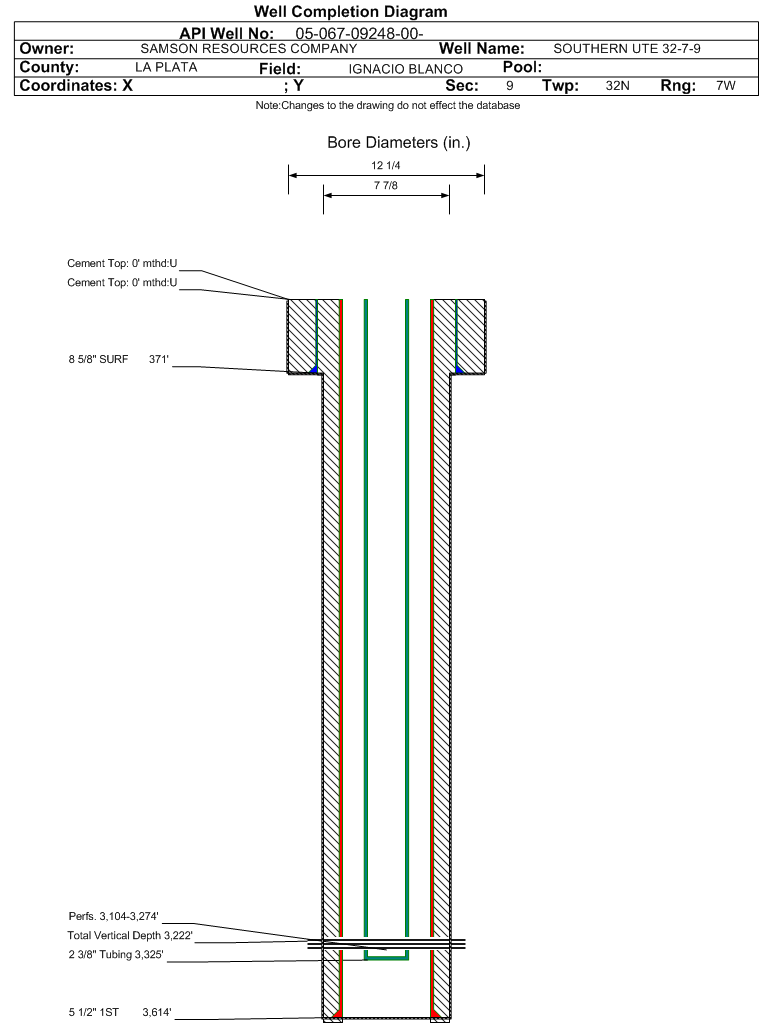

| Wellbore Completed | | Completion Date: | 7/16/2010 | | Spud Date: | 7/12/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 3640 ft. | Measured PB depth: | 3540 ft. | | True Vertical TD: | 3222 ft. | True Vertical PB depth: | 3134 ft. | | Top PZ Location: | Sec:09 Twp: 32N 07W | Footage: 751 FSL 928 FEL | | Bottom Hole Location: | Sec:09 Twp: 32N 07W | Footage: 698 FSL 675 FEL | | Log Types: | CBL/GR/CCL/RST | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 371 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 260, Top: 0 ft., Bottom: 380 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 3614 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 510, Top: 0 ft., Bottom: 3640 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | KIRTLAND | 2055 ft. | 3102 ft. | | | | FRUITLAND | 3102 ft. | 3420 ft. | | | | PICTURED CLIFFS | 3420 ft. | | | |
Formation FRLDC Formation Classification: GW Status: PR - 10/1/2016 Interval Top: 3104 ft. Interval Bottom: 3274 ft.| Completed Information for Formation FRUITLAND COAL | | 1st Production Date: | 9/16/2010 | Choke Size: | | | Formation Name: | FRUITLAND COAL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/7/2010 | | Treatment Summary: | Frac with 2,634bbls fluid and 152.880# sand. Acidize 6,300gals with 15% HCL. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 3325 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/21/2010 | Test Method: | pumping | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 43 | | BTU_GAS | 980 | | CALC_BBLS_H2O | 43 | | CALC_MCF_GAS | 162 | | CASING_PRESS | 160 | | MCF_GAS | 162 | | TUBING_PRESS | 160 |
| | Perforation Data: | | Interval Top: | 3104 ft. | # Of Holes: | 256 | | Interval Bottom: | 3274 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 63901 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 30.185 |
| Average MCFE per Day | 175.077 |
| Federal Financial Assurance | i | |
|
|
