COGIS - WELL SCOUT CARD

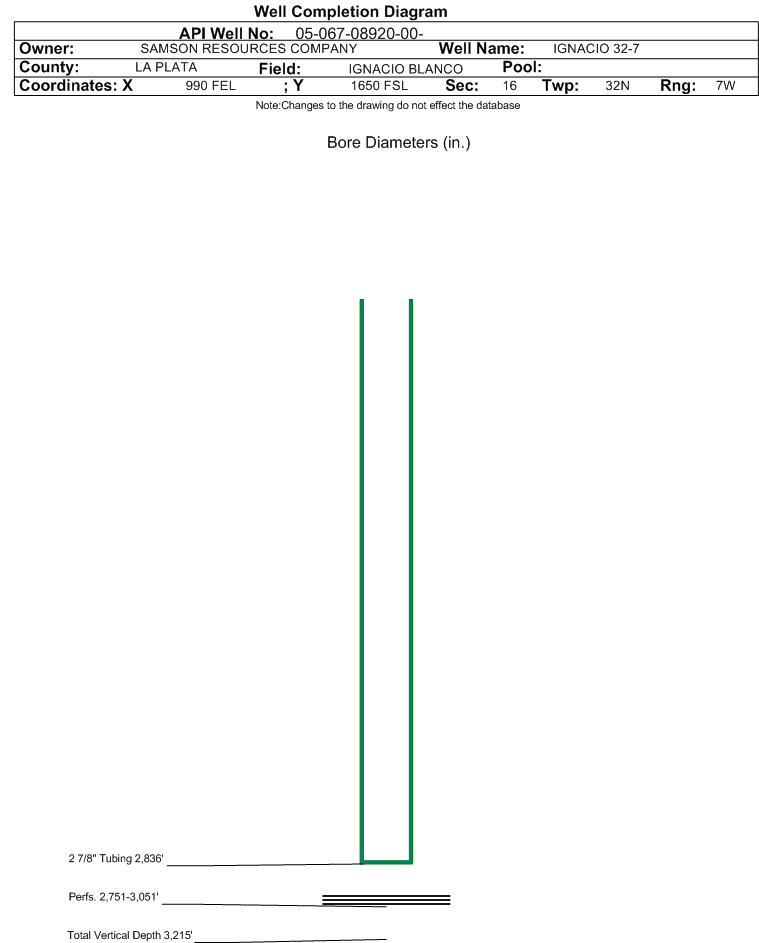

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-067-08920		Well Classification: GW Status: PR - 10/1/2016
Well Name/No:IGNACIO 32-7 #16-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:RED WILLOW PRODUCTION COMPANY - 81295
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/1/2016
FacilityID:271261LocationID:311930
County:LA PLATA #067Location:NESE 16 32N7W N
Field:IGNACIO BLANCO - #38300Elevation:6235 ft.
Basin:SAN JUAN BASIN
Planned Location:1650FSL  990 FELLat/Long: 37.014361 / -107.608500Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.014028 / -107.608479Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2016             Measured TD:     Vertical TD: 3215 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2016
Wellbore Permit
Permit #:20040205 Expiration Date:2/12/2005
Proposed Depth/Form:3100 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: FRLDC , Formation: FRUITLAND COAL , Order: 112-157 , Unit Acreage: 320, Drill Unit: S/2
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 400 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 280, Top: 0 ft., Bottom: 400 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 3100 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 430, Top: 0 ft., Bottom: 3100 ft.
Wellbore Completed
Completion Date:5/14/2004
Spud Date:4/16/2004Spud Date Is:ACTUAL
Measured TD:Measured PB depth:
True Vertical TD:3215 ft.True Vertical PB depth:3160 ft.
Log Types:SDL/DSN;HRI GR/CCL/CBLFROM PBTD 3160'WLM) TO 2400'
FormationInterval TopLog BottomCoredDSTs
FRUITLAND COAL2650 ft.3050 ft.NN
PICTURED CLIFFS3050 ft.NN

Formation FRLDC                   Formation Classification:  GW                   Status:  PR - 10/1/2016                 Interval Top: 2751 ft.    Interval Bottom: 3051 ft.

 Completed Information for Formation FRUITLAND COAL
1st Production Date:N/AChoke Size:0.047 in.
Formation Name:FRUITLAND COALCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/14/2004
Treatment Summary:SPOT 300 GAL 15% DI HCI @ 3051'. 2000 GAL 15% HCI ADIC IN 6 SETTINGS. SPEARHEAD FRAC W/ 1000 10% FORMIC ACID & FRAC DN 5-1/2" CSG W/ 95,300 GAL 20# DELTA 140 FRAC FLUID W/SANDWEDGE; 229,356# 20/40 BRADY SAND
Tubing Size:2.875 in.Tubing Setting Depth:2836 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/17/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 405
BBLS_OIL 0
CALC_BBLS_H2O 405
CALC_BBLS_OIL 0
CALC_MCF_GAS 333
CASING_PRESS 760
MCF_GAS 333
TUBING_PRESS 510
Perforation Data:
Interval Top:2751 ft.# Of Holes:
Interval Bottom:3051 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)87166
GOR
GOR DeterminationMCFE
Average BOE per Day41.191
Average MCFE per Day238.901

 Federal Financial Assurance  i

 Tribal Well  i No
