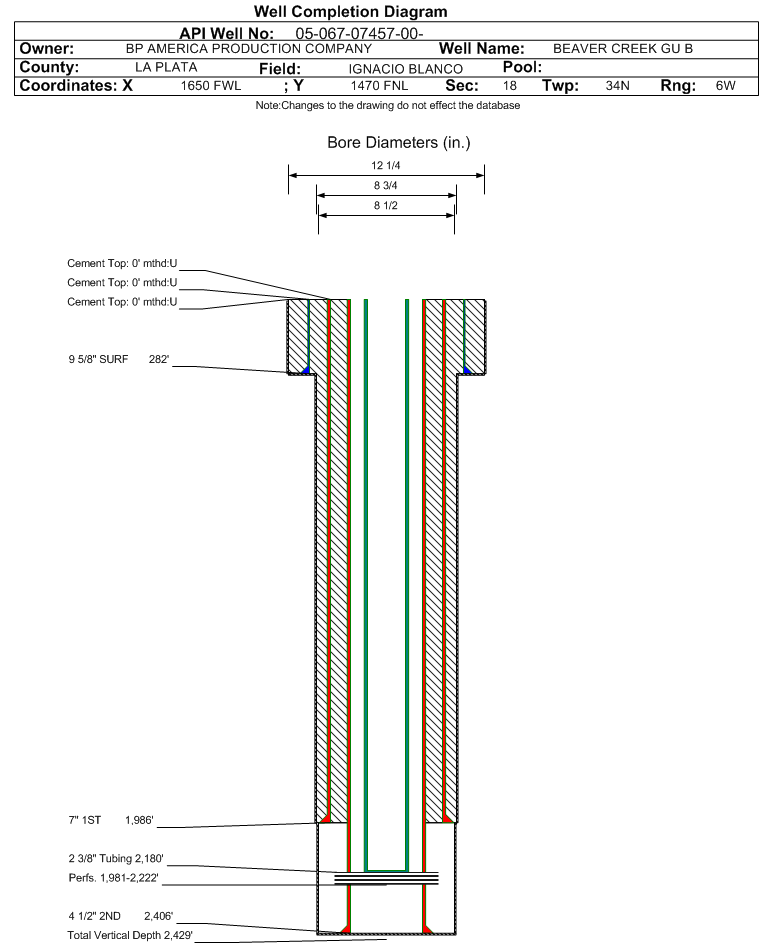

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-067-07457		Well Classification: CBM Status: PR - 12/31/2001
Well Name/No:BEAVER CREEK B #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:SIMCOE LLC - 10749
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:18022
Facility Status:PRStatus Date12/31/2001
FacilityID:215852LocationID:326092
County:LA PLATA #067Location:SENW 18 34N6W N
Field:IGNACIO BLANCO - #38300Elevation:6814 ft.
Basin:SAN JUAN BASIN
Planned Location:1470FNL  1650 FWLLat/Long: 37.217458 / -107.572650Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.217372 / -107.572410Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 12/31/2001             Measured TD: 2429 ft.    Vertical TD: 2429 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 12/31/2001
Wellbore Permit
Permit #:900129 Expiration Date:6/13/1990
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: FRLDC , Formation: FRUITLAND COAL , Order: 0 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:8/12/1990
Measured TD:2429 ft.Measured PB depth:2365 ft.
True Vertical TD:2429 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 282 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 1986 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 2ND, Hole Size: , Size: 4.5 in., Top: 0 ft., Depth: 2406 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FRUITLAND COAL1981 ft.
PICTURED CLIFFS2286 ft.

Formation FRLDC                   Formation Classification:  GW                   Status:  PR - 12/31/2001                Interval Top: 1981 ft.    Interval Bottom: 2222 ft.

 Completed Information for Formation FRUITLAND COAL
1st Production Date:N/AChoke Size:
Formation Name:FRUITLAND COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/12/1990
Treatment Summary:NO NEW PERFORATING PERFORMED. STIMULATED ORIGINAL PERFS W/ 103446 GALS GELLED-WATER, 251713# SD, AIR 49.8 BPM @ 902 #, ISIP 847#.
Tubing Size:2.375 in.Tubing Setting Depth:2180 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation FRLDC.
Perforation Data:
Interval Top:1981 ft.# Of Holes:
Interval Bottom:2222 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)61744
GOR
GOR DeterminationMCFE
Average BOE per Day29.171
Average MCFE per Day169.197

 Federal Financial Assurance  i

 Tribal Well  i No
