COGIS - WELL SCOUT CARD

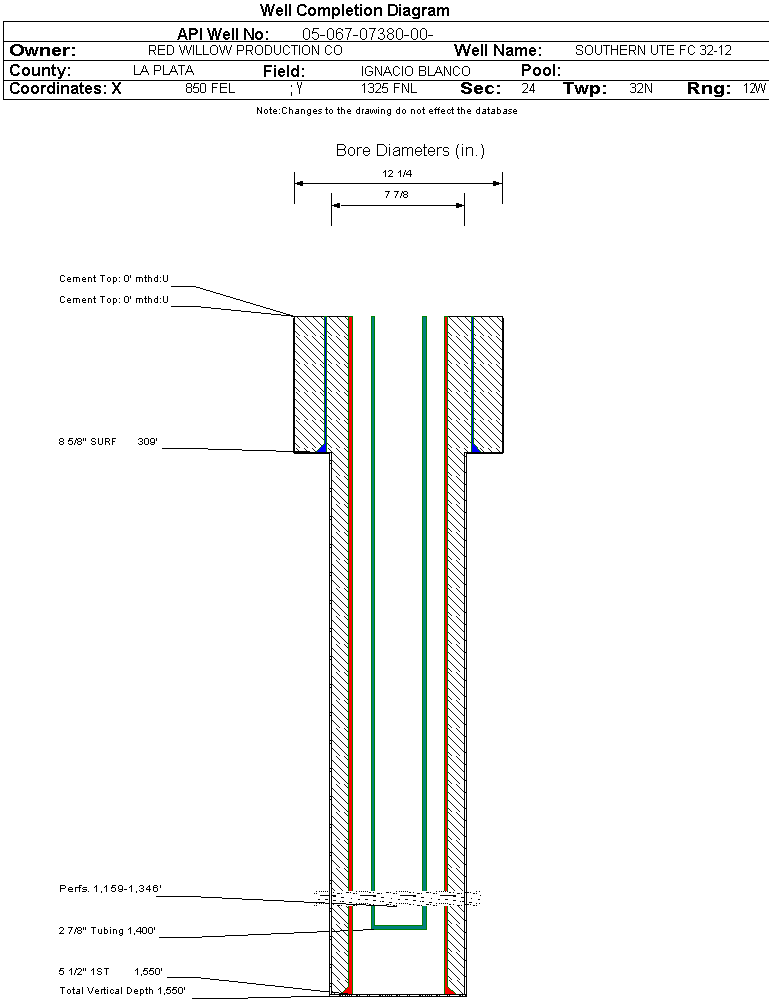

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-067-07380		Well Classification: CBM Status: PA - 5/26/2023
Well Name/No:SOUTHERN UTE FC 32-12 #24-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:RED WILLOW PRODUCTION COMPANY - 81295
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:BIA750-88-1001
Facility Status:PAStatus Date5/26/2023
FacilityID:215775LocationID:326051
County:LA PLATA #067Location:SENE 24 32N12W N
Field:IGNACIO BLANCO - #38300Elevation:6080 ft.
Basin:SAN JUAN BASIN
Planned Location:1325FNL  850 FELLat/Long: 37.006879 / -108.095064Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.006879 / -108.095064Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: AB - 5/26/2023             Measured TD: 1550 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        AB - 5/26/2023
Wellbore Permit
Permit #:19890744 Expiration Date:1/5/1990
Proposed Depth/Form:1500 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:INDIANSurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: FRLDC , Formation: FRUITLAND COAL , Order: 112-61 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:12/10/1989
Spud Date:11/15/1989Spud Date Is:ACTUAL
Measured TD:1550 ft.Measured PB depth:1488 ft.
True Vertical TD:True Vertical PB depth:
Log Types:FORM DEN/COAL LOG,CBL/VDL/GR.
Casing:String Type: CONDUCTOR, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 309 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: 309 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 309 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1550 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 835 ft., Bottom: 1550 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FRUITLAND COAL1036 ft.
PICTURED CLIFFS1367 ft.
LEWIS1468 ft.

Formation FRLDC                   Formation Classification:  GW                   Status:  AB - 5/26/2023                 Interval Top: 1159 ft.    Interval Bottom: 1346 ft.

 Completed Information for Formation FRUITLAND COAL
1st Production Date:4/4/1990Choke Size:0.000 in.
Formation Name:FRUITLAND COALCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:12/10/1989
Treatment Summary:SEE SCANNED DOCUMENT 00672557
Tubing Size:2.875 in.Tubing Setting Depth:1400 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation FRLDC.
Perforation Data:
Interval Top:1159 ft.# Of Holes:234
Interval Bottom:1346 ft.Hole Size:0.45 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/26/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i Yes
