COGIS - WELL SCOUT CARD

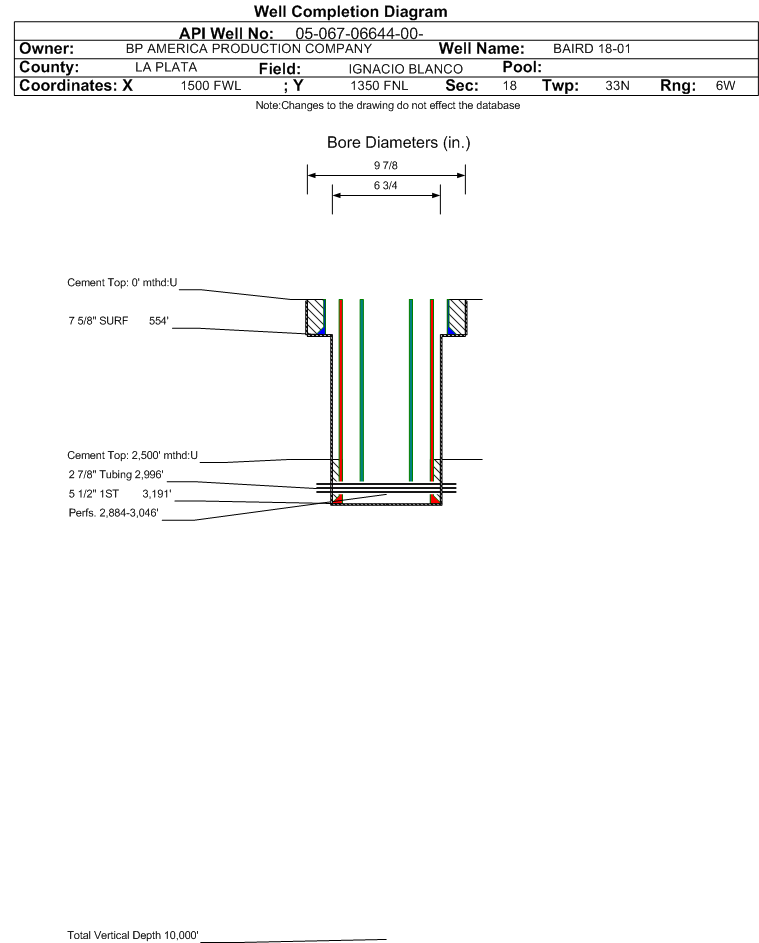

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-067-06644		Well Classification: CBM Status: PR - 11/1/2022
Well Name/No:BAIRD 18-01 #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:SIMCOE LLC - 10749
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/1/2022
FacilityID:215039LocationID:325582
County:LA PLATA #067Location:SENW 18 33N6W N
Field:IGNACIO BLANCO - #38300Elevation:6563 ft.
Basin:SAN JUAN BASIN
Planned Location:1350FNL  1500 FWLLat/Long: 37.107720 / -107.545698Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.107833 / -107.545513Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 11/1/2022             Measured TD: 3200 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 11/1/2022
Wellbore Permit
Permit #:19821490 Expiration Date:1/15/1983
Proposed Depth/Form:3200 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: FRLDC , Formation: FRUITLAND COAL , Order: 0 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:3/10/1986
Spud Date:10/2/1982Spud Date Is:ACTUAL
Measured TD:3200 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:COMP DEN COMP NEU IND ELEC CBL
Casing:String Type: SURF, Hole Size: 9.875 in., Size: 7.625 in., Top: 0 ft., Depth: 554 ft., Weight: 26.4 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 554 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 6.75 in., Size: 5.5 in., Top: 0 ft., Depth: 3191 ft., Weight: 17.0 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 2500 ft., Bottom: 3191 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
KIRTLAND1896 ft.
FRUITLAND2791 ft.
PICTURED CLIFFS3101 ft.

Formation FRLDC                   Formation Classification:  GW                   Status:  PR - 11/1/2022                 Interval Top: 2884 ft.    Interval Bottom: 3046 ft.

 Completed Information for Formation FRUITLAND COAL
1st Production Date:8/15/1984Choke Size:0.250 in.
Formation Name:FRUITLAND COALCommingled:
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.875 in.Tubing Setting Depth:2996 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/7/1983Test Method:FLOWING
Hours Tested:3Gas Type:COAL GAS
Gas Disposal:FLARED
Test TypeMeasure
BBLS_H2O 7
CALC_BBLS_H2O 60
CALC_MCF_GAS 76
CASING_PRESS 860
MCF_GAS 9
TUBING_PRESS 10
Perforation Data:
Interval Top:2884 ft.# Of Holes:
Interval Bottom:3046 ft.Hole Size:

Sidetrack #01             Wellbore Classification:              Status: EP - 5/15/2007             Measured TD:

 Wellbore Data for Sidetrack #01Wellbore Classification:         EP - 5/15/2007
Wellbore PermitDIRECTIONAL
Permit #:20061424 Expiration Date:5/15/2007
Proposed Top PZ Location:Sec: Twp: Footage: 1222 FNL  1524 FWL
Bottom Hole Location:Sec:18 Twp: 33N 6W Footage: 1635 FNL  2495 FWL
Proposed Depth/Form:4000 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:TIFFANY UNIT Unit Number:COC 60317X
Formation And Spacing:Code: FRLDC , Formation: FRUITLAND COAL , Order: 112-122 , Unit Acreage: 320, Drill Unit: N2
Casing:String Type: SURF, Hole Size: 9.875 in., Size: 7.625 in., Top: , Depth: 542 ft., Weight: 26.4 , Citings Type: PLANNED
Cement:Sacks: 200, Top: 0 ft., Bottom: 542 ft.
Casing:String Type: 1ST, Hole Size: 6.75 in., Size: 5.5 in., Top: , Depth: 3200 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 3200 ft.
Casing:String Type: 1ST LINER, Hole Size: , Size: 3.5 in., Top: , Depth: 3943 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:N/A
Measured TD:Measured PB depth:
True Vertical TD:True Vertical PB depth:
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)16406
GOR
GOR DeterminationMCFE
Average BOE per Day7.754
Average MCFE per Day44.967

 Federal Financial Assurance  i

 Tribal Well  i No
