Wellbore #00 Wellbore Classification: OW Status: AB - 10/1/1981 Measured TD: 1218 ft. Vertical TD: 1218 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 10/1/1981 | | Wellbore Permit | | | Permit #: | 19801142 | Expiration Date: | 8/22/1981 | | Proposed Depth/Form: | 8750 ft. | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | INDIAN | Surface Owner: | Not available | | Unit: | | Unit Number: | |
| | |

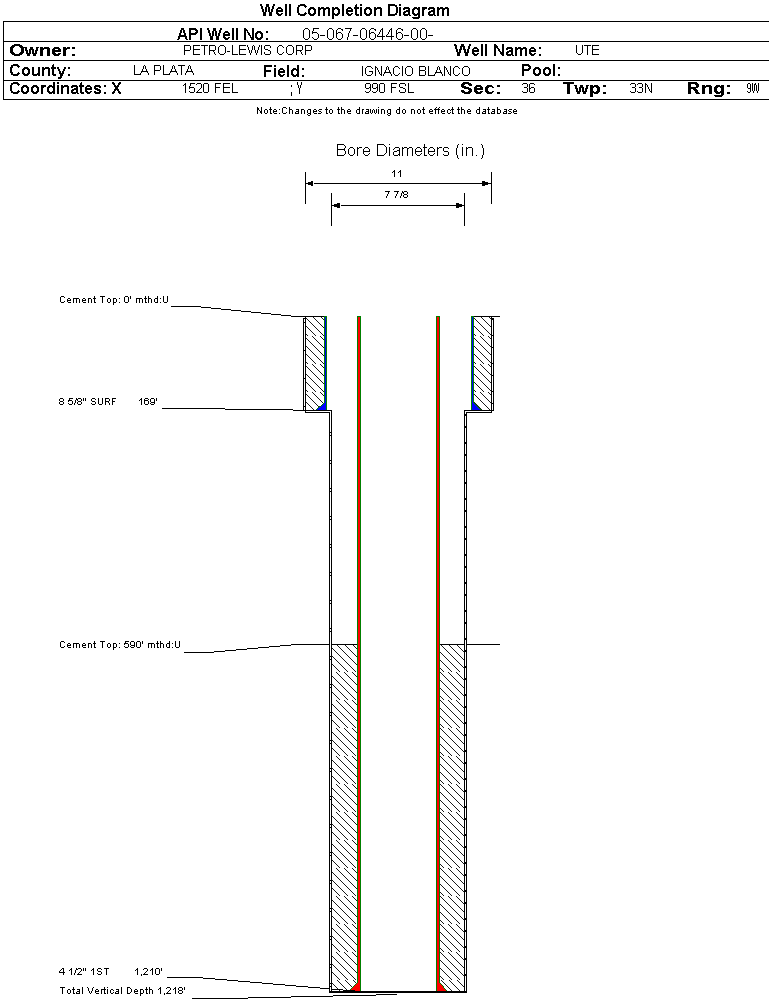

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 7/7/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 1218 ft. | Measured PB depth: | 1168 ft. | | True Vertical TD: | 1218 ft. | True Vertical PB depth: | 1168 ft. | | Log Types: | DUAL IND.,GR,SPONTANEOUS POTENTIAL,COMP.DENSITY | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 169 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 45, Top: 0 ft., Bottom: 169 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 1210 ft., Weight: 9.5 , Citings Type: ACTUAL | | Cement: | Sacks: 125, Top: 590 ft., Bottom: 1210 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE A | 650 ft. | 680 ft. | N | N | | PIERRE B | 1047 ft. | 1067 ft. | N | N | | No formation data to display. |
|
|
|
|
|
|
| Reported Plugged | Y | 10/01/1981 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
