Facility Detail

COGIS - WELL SCOUT CARD

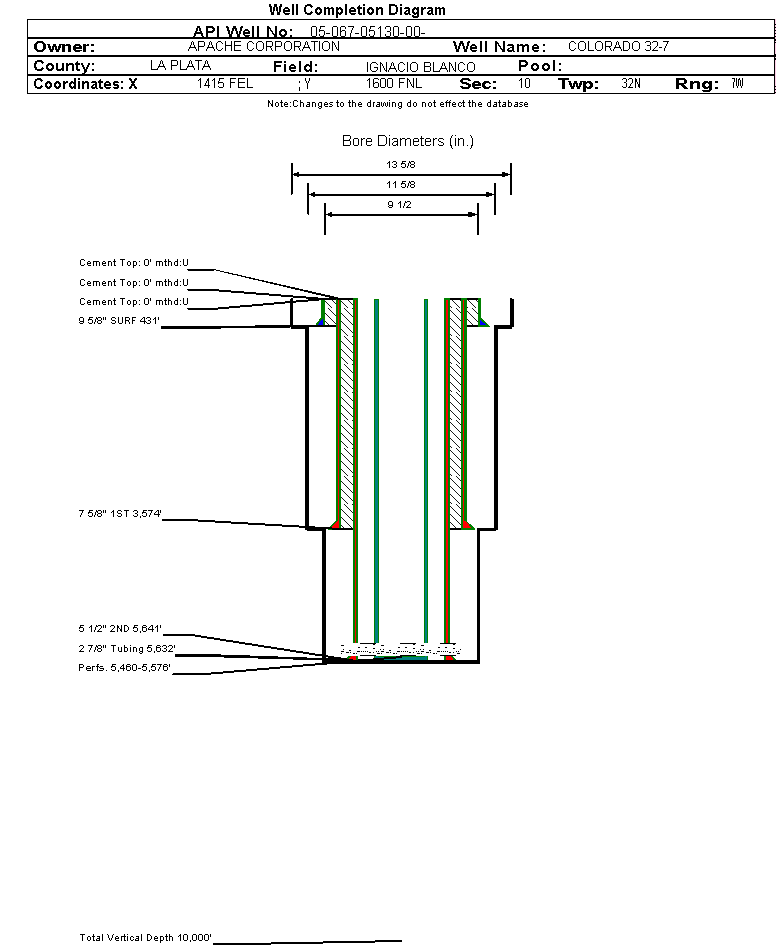

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-067-05130		Well Classification: GW Status: PR - 2/1/2019
Well Name/No:COLORADO 32-7 #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:HIGH RIVER RESOURCES OPERATING LLC - 10734
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:14201514
Facility Status:PRStatus Date2/1/2019
FacilityID:213861LocationID:325044
County:LA PLATA #067Location:SWNE 10 32N7W N
Field:IGNACIO BLANCO - #38300Elevation:6366 ft.
Basin:SAN JUAN BASIN
Planned Location:1600FNL  1415 FELLat/Long: 37.034441 / -107.591759Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.034480 / -107.591720Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/1/2019             Measured TD: 5650 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/1/2019
Wellbore Permit
Permit #:19610000 Expiration Date:3/7/1962
Proposed Depth/Form:5650 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:INDIANSurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:4/9/1961
Spud Date:3/15/1961Spud Date Is:ACTUAL
Measured TD:5650 ft.Measured PB depth:5636 ft.
True Vertical TD:True Vertical PB depth:
Casing:String Type: SURF, Hole Size: , Size: 9.625 in., Top: , Depth: 431 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: , Size: 7.625 in., Top: , Depth: 3574 ft., Weight: 26.4 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: , Bottom: , Determination Method:
Casing:String Type: 2ND, Hole Size: , Size: 5.5 in., Top: , Depth: 5641 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 90, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FRUITLAND2658 ft.
PICTURED CLIFFS2976 ft.
CLIFF HOUSE5190 ft.
MENEFEE5248 ft.
POINT LOOKOUT5434 ft.

Formation MVRD                     Formation Classification:  GW                     Status:  PR - 2/1/2019                  Interval Top: 5460 ft.    Interval Bottom: 5576 ft.

 Completed Information for Formation MESAVERDE
1st Production Date:11/24/1991Choke Size:0.750 in.
Formation Name:MESAVERDECommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/9/1961
Treatment Summary:
Tubing Size:2.875 in.Tubing Setting Depth:5632 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/2/1961Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_MCF_GAS 3645
CASING_PRESS 271
MCF_GAS 3645
TUBING_PRESS 383
Perforation Data:
Interval Top:5460 ft.# Of Holes:
Interval Bottom:5576 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)5376
GOR
GOR DeterminationMCFE
Average BOE per Day2.540
Average MCFE per Day14.731

 Federal Financial Assurance  i

 Tribal Well  i Yes
