COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-063-06031		Well Classification: DA Status: PA - 10/21/1970
Well Name/No:STATE #1-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:UNION TEXAS PETROLEUM - 91500
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:CO 70/7566
Facility Status:PAStatus Date10/21/1970
FacilityID:213472LocationID:384985
County:KIT CARSON #063Location:NENE 36 11S51W 6
Field:WILDCAT - #99999Elevation:5105 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  660 FELLat/Long: 39.052050 / -103.053577Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 10/21/1970             Measured TD: 5422 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 10/21/1970
Wellbore Permit
Permit #:19700503 Expiration Date:9/29/1971
Proposed Depth/Form:5800 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:STATESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCMP , Formation: WOLFCAMP , Order: 0 , Unit Acreage: 40, Drill Unit: NENE
Wellbore Completed
Completion Date:10/21/1970
Spud Date:10/5/1970Spud Date Is:ACTUAL
Measured TD:5422 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types: DUAL INDUCTION-LATEROLOG, COMPENSATED FORMATION DENSITY LOG (GAMMA-GAMMA), SIDEWALL NEUTRON POROSITY LOG

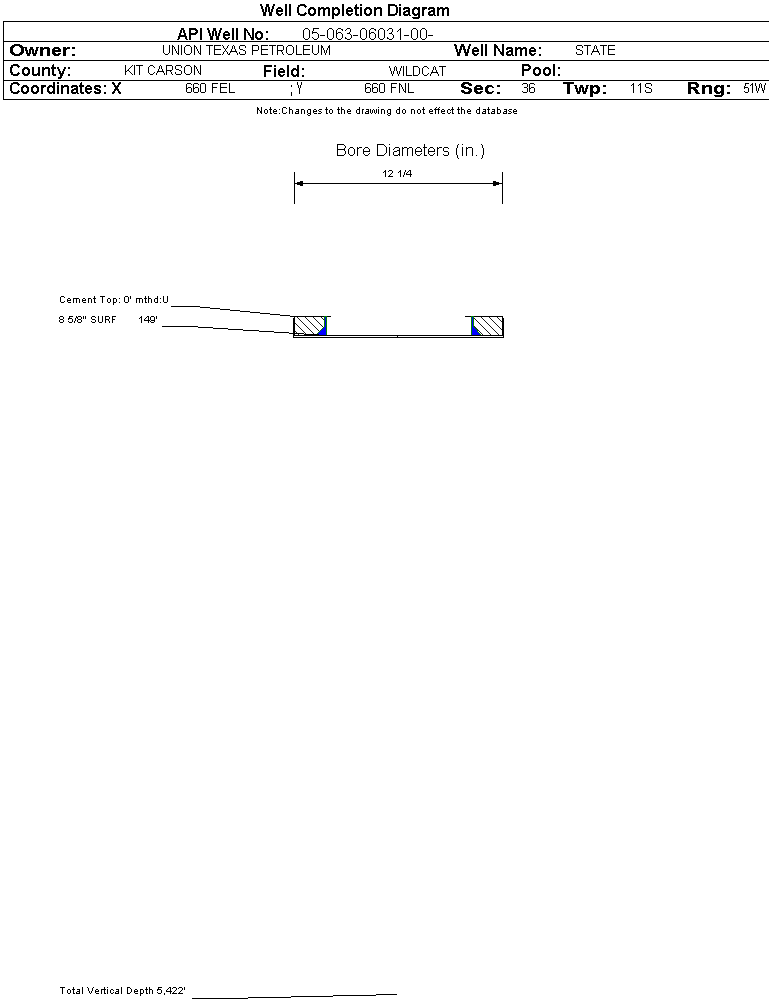

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 149 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA1965 ft.
CODELL2544 ft.
D SAND2932 ft.
J SAND2975 ft.
SKULL CREEK3190 ft.
MORRISON3325 ft.
BLAINE4054 ft.
STONE CORRAL4315 ft.
WOLFCAMP4592 ft.
VIRGIL5204 ft.
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/21/1970
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
