COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-061-06476		Well Classification: OW Status: PA - 4/29/1986
Well Name/No:STATE #1-16
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:EOG RESOURCES INC - 27742
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:85/1302
Facility Status:PAStatus Date4/29/1986
FacilityID:213115LocationID:384641
County:KIOWA #061Location:NENW 16 20S45W 6
Field:MOCKINGBIRD - #55440Elevation:3847 ft.
Basin:HUGOTON EMBAYMENT
Planned Location:660FNL  1980 FWLLat/Long: 38.322453 / -102.464664Lat/Long Source: Calculated From Footages

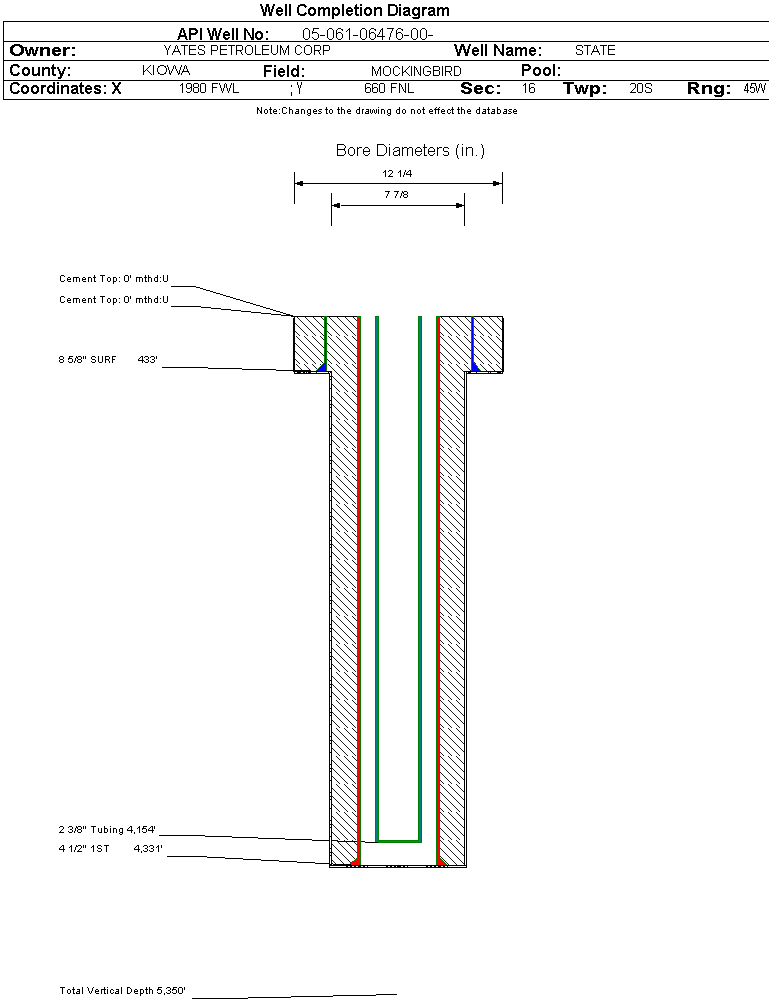

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 4/29/1986             Measured TD: 5350 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 4/29/1986
Wellbore Permit
Permit #:19860050 Expiration Date:5/16/1986
Proposed Depth/Form:5150 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:STATESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MRTN , Formation: MARMATON , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:4/11/1986
Spud Date:1/31/1986Spud Date Is:ACTUAL
Measured TD:5350 ft.Measured PB depth:4329 ft.
True Vertical TD:True Vertical PB depth:
Log Types:BCS; CNLD; DI; NGRS; HRD; CYBERLOOK
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 433 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4331 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 165, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
STONE CORRAL2146 ft.
NEVA2865 ft.
PENNSYLVANIAN3287 ft.
HEEBNER3658 ft.
MARMATON4134 ft.
CHEROKEE K4298 ft.
ATOKA4560 ft.
MORROW4812 ft.
KEYES5038 ft.
MISSISSIPPIAN5074 ft.

Formation MRTN                     Formation Classification:  GW                     Status:  AB - 4/29/1986                 Interval Top: 4134 ft.

 Completed Information for Formation MARMATON
1st Production Date:4/11/1986Choke Size:0.000 in.
Formation Name:MARMATONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:4/11/1986
Treatment Summary:SEE SCAN DOCUMENT # 573451
Tubing Size:2.375 in.Tubing Setting Depth:4154 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/29/1986Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 25
BBLS_OIL 32
No Perforation Data was found for formation MRTN.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/29/1986
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
