COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-061-06002		Well Classification: OW Status: PR - 8/1/2022
Well Name/No:PYLES, BERTHA #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:RAMPIKE RESOURCES LTD - 10777
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2022
FacilityID:212642LocationID:324792
County:KIOWA #061Location:NESW 10 19S45W 6
Field:BRANDON - #7500Elevation:3935 ft.
Basin:HUGOTON EMBAYMENT
Planned Location:1980FSL  1980 FWLLat/Long: 38.416972 / -102.448024Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 38.417110 / -102.447970Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 8/1/2022             Measured TD: 4842 ft.    Vertical TD: 4842 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 8/1/2022
Wellbore Permit
Permit #:19670048 Expiration Date:2/20/1968
Proposed Depth/Form:4950 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MSSP , Formation: MISSISSIPPIAN , Order: 0 , Unit Acreage: 80, Drill Unit: E2SW
Wellbore Completed
Completion Date:4/15/1967
Spud Date:2/16/1967Spud Date Is:ACTUAL
Measured TD:4842 ft.Measured PB depth:4821 ft.
True Vertical TD:4842 ft.True Vertical PB depth:
Log Types: DUAL INDUCTION-LATEROLOG, GAMMA-GAMMA MICROSEISMOGRAM LOG-SIDEWALL NEUTRON POROSITY LOG - GAMMA-COLLAR PERF. RECORD (CASED HOLE)

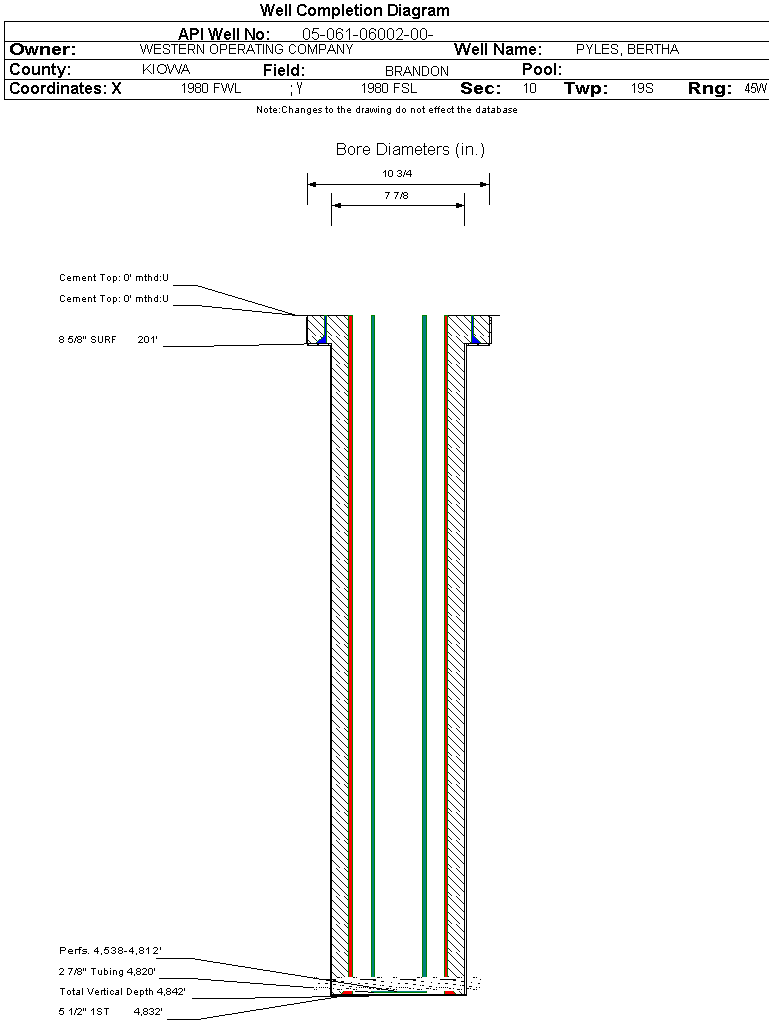

Casing:String Type: SURF, Hole Size: 10.75 in., Size: 8.625 in., Top: 0 ft., Depth: 201 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4832 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
STONE CORRAL2236 ft.
KANSAS CITY3586 ft.
MARMATON3952 ft.
CHEROKEE K4094 ft.
MORROW4343 ft.
MISSISSIPPIAN4512 ft.
OSAGE4787 ft.

Formation MSSP                     Formation Classification:  OW                     Status:  PR - 8/1/2022                  Interval Top: 4538 ft.    Interval Bottom: 4812 ft.

 Completed Information for Formation MISSISSIPPIAN
1st Production Date:7/1/1989Choke Size:0.000 in.
Formation Name:MISSISSIPPIANCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:4/15/1967
Treatment Summary:SEE SCANNED DOCUMENT #0572197
Tubing Size:2.875 in.Tubing Setting Depth:4820 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/17/1967Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_OIL 360
GRAVITY_OIL 38
Perforation Data:
Interval Top:4538 ft.# Of Holes:87
Interval Bottom:4812 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)5687
Total Gas Produced (MCF)0
GOR
GOR DeterminationBOE
Average BOE per Day15.600
Average MCFE per Day90.482

 Federal Financial Assurance  i

 Tribal Well  i No
