COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-061-05143		Well Classification: OW Status: PR - 3/1/2025
Well Name/No:DAWSON #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:RAMPIKE RESOURCES LTD - 10777
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/1/2025
FacilityID:212635LocationID:324791
County:KIOWA #061Location:NESE 4 19S45W 6
Field:BRANDON - #7500Elevation:3888 ft.
Basin:HUGOTON EMBAYMENT
Planned Location:1980FSL  660 FELLat/Long: 38.431362 / -102.457405Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 38.431360 / -102.457500Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 3/1/2025             Measured TD: 4837 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 3/1/2025
Wellbore Permit
Permit #:19660181 Expiration Date:5/24/1967
Proposed Depth/Form:5000 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MSSP , Formation: MISSISSIPPIAN , Order: 0 , Unit Acreage: 80, Drill Unit: E2SE
Wellbore Completed
Completion Date:7/3/1966
Spud Date:5/24/1966Spud Date Is:ACTUAL
Measured TD:4837 ft.Measured PB depth:4800 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types: DUAL INDUCTION-LATEROLOG; DENSITY LOG; SIDEWALL NEUTRON LOG; SONIC AMPLITUDE LOG

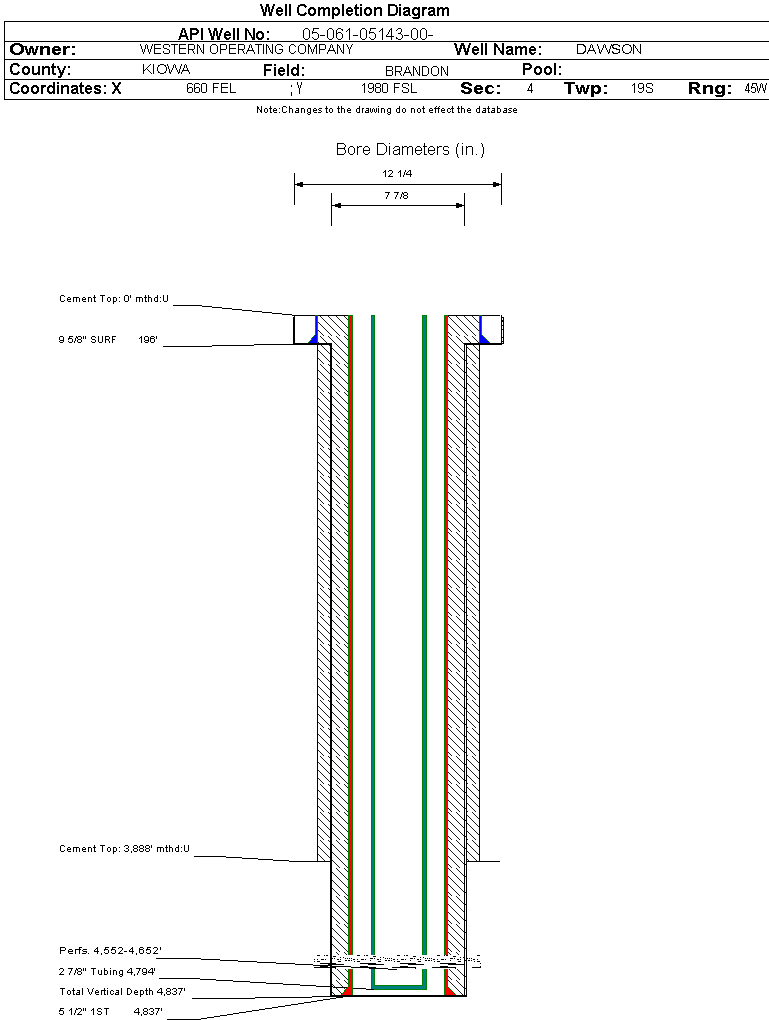

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 196 ft., Weight: 43.5 , Citings Type: ACTUAL
Cement:Sacks: 165, Top: 0 ft., Bottom: 196 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4837 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 4130 ft., Bottom: 4837 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
DAKOTA723 ft.
BLAINE1696 ft.
STONE CORRAL2218 ft.
NEVA2907 ft.
VIRGIL3241 ft.
LANSING3589 ft.
CHEROKEE K4084 ft.
MORROW4342 ft.
MISSISSIPPIAN4515 ft.

Formation MSSP                     Formation Classification:  OW                     Status:  PR - 3/1/2025                  Interval Top: 4552 ft.    Interval Bottom: 4652 ft.

 Completed Information for Formation MISSISSIPPIAN
1st Production Date:6/3/1966Choke Size:0.000 in.
Formation Name:MISSISSIPPIANCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:7/3/1966
Treatment Summary:SEE SCANNED DOCUMENT #00572058
Tubing Size:2.875 in.Tubing Setting Depth:4794 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/12/1971Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 608
BBLS_OIL 67
CALC_BBLS_H2O 608
CALC_BBLS_OIL 67
GRAVITY_OIL 39
Perforation Data:
Interval Top:4552 ft.# Of Holes:29
Interval Bottom:4652 ft.Hole Size:0.5 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)2574
Total Gas Produced (MCF)0
GOR
GOR DeterminationBOE
Average BOE per Day6.997
Average MCFE per Day40.582

 Federal Financial Assurance  i

 Tribal Well  i No
