COGIS - WELL SCOUT CARD

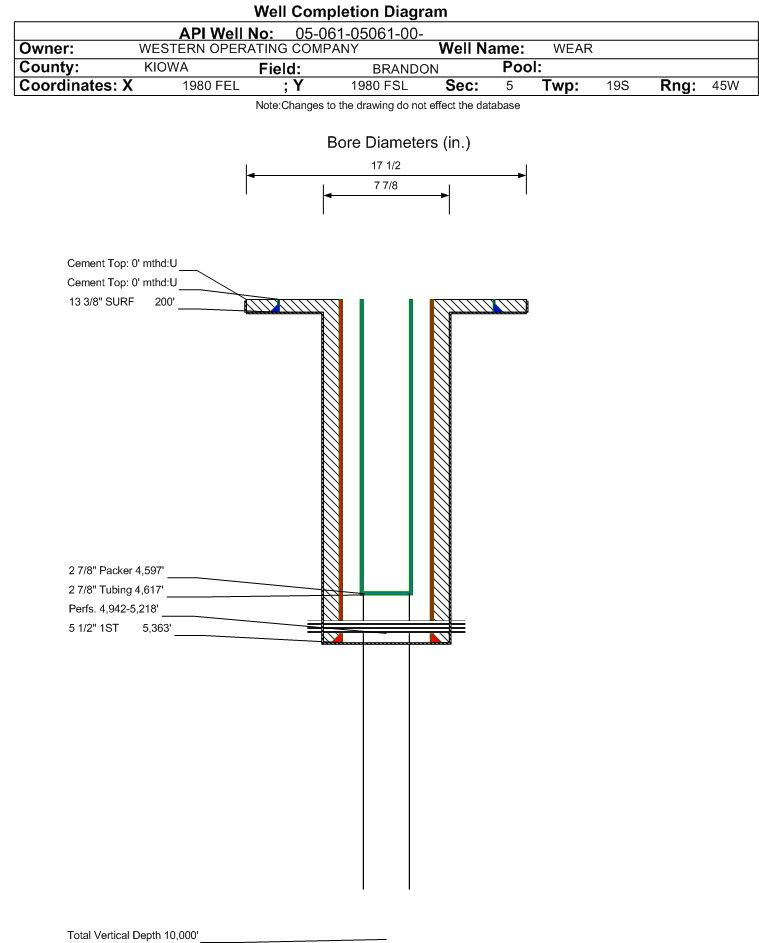

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-061-05061		Well Classification: DSPW Status: IJ - 6/12/2024
Well Name/No:WEAR #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:RAMPIKE RESOURCES LTD - 10777
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:IJStatus Date6/12/2024
FacilityID:212608LocationID:324789
County:KIOWA #061Location:NWSE 5 19S45W 6
Field:BRANDON - #7500Elevation:3881 ft.
Basin:HUGOTON EMBAYMENT
Planned Location:1980FSL  1980 FELLat/Long: 38.431062 / -102.480275Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 38.431310 / -102.480170Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DSPW             Status: IJ - 6/12/2024             Measured TD: 5303 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: DSPW        IJ - 6/12/2024
Wellbore Permit
Permit #:19600000 Expiration Date:10/24/1961
Proposed Depth/Form:5250 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MSSP , Formation: MISSISSIPPIAN , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:11/24/1969
Spud Date:10/1/1969Spud Date Is:ACTUAL
Measured TD:5303 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types: LATERAL LOG - GAMMA RAY - SONIC
Casing:String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 200 ft., Weight: 44.5 , Citings Type: ACTUAL
Cement:Sacks: 275, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 5363 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: , Determination Method:

Formation ABCK                     Formation Classification:  DSPW                     Status:  IJ - 6/12/2024                 Interval Top: 4942 ft.    Interval Bottom: 5218 ft.

 Completed Information for Formation ARBUCKLE
1st Production Date:N/AChoke Size:
Formation Name:ARBUCKLECommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/24/1969
Treatment Summary:SEE SCANNED DOCUMENT #00572427
Tubing Size:2.875 in.Tubing Setting Depth:4870 ft.
Tubing Packer Depth:4870 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 9700
CALC_BBLS_H2O 9700
Perforation Data:
Interval Top:4942 ft.# Of Holes:54
Interval Bottom:5218 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (UIC)YDefined Inactive
09/30/2024
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
