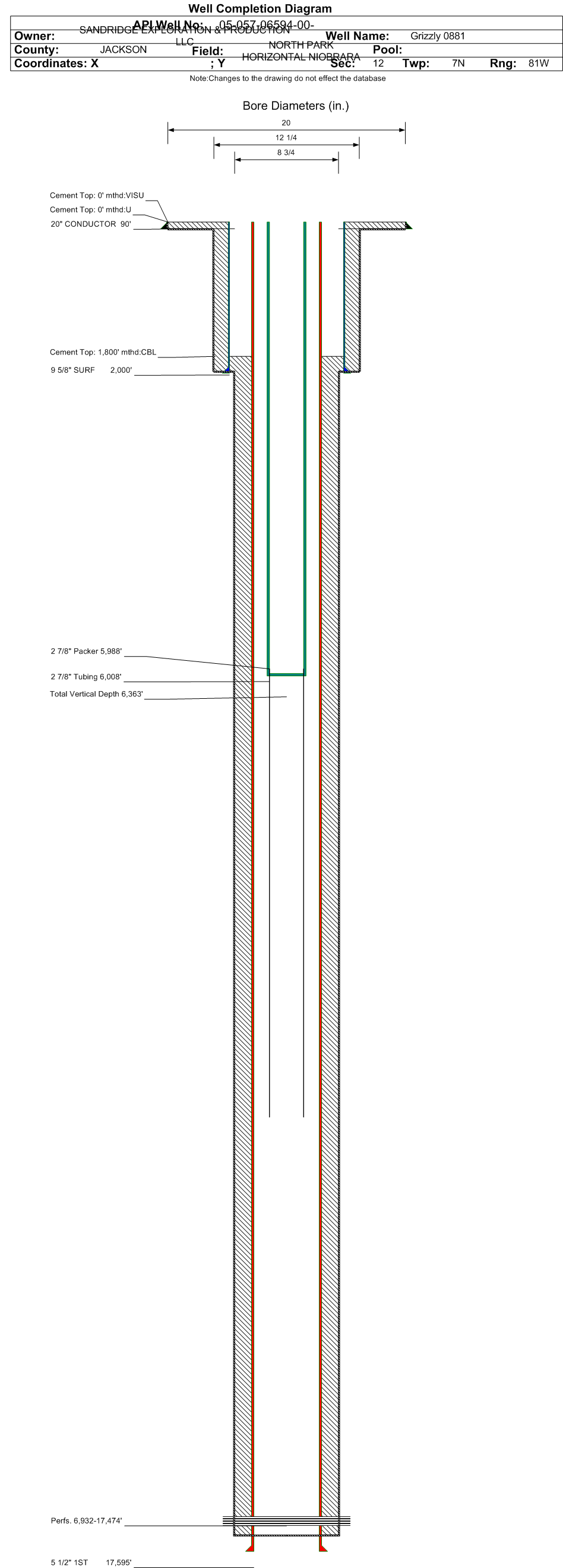

Wellbore #00 Wellbore Classification: OW Status: PR - 11/1/2021 Measured TD: 17600 ft. Vertical TD: 6363 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 11/1/2021 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/17/2019 | | Proposed Top PZ Location: | Sec:1 Twp: 7N 81W | Footage: 118 FSL 2068 FEL | | Bottom Hole Location: | Sec:36 Twp: 8N 81W | Footage: 101 FNL 2305 FEL | | Proposed Depth/Form: | 18624 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 531-43 , Unit Acreage: 1280, Drill Unit: Sec 1 & 36: All | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 90 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 189, Top: 0 ft., Bottom: 90 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 510, Top: 0 ft., Bottom: 2000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 18624 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 3036, Top: 0 ft., Bottom: 18624 ft. |
| | |
| Wellbore Completed | | Completion Date: | 6/29/2017 | | Spud Date: | 6/6/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 17600 ft. | Measured PB depth: | 17545 ft. | | True Vertical TD: | 6363 ft. | True Vertical PB depth: | 6360 ft. | | Top PZ Location: | Sec:1 Twp: 7N 81W | Footage: 118 FSL 2068 FEL | | Bottom Hole Location: | Sec:36 Twp: 8N 81W | Footage: 101 FNL 2305 FEL | | Log Types: | Triple Combo, MWD/LWD, CBL, Mud | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 20 in., Top: 0 ft., Depth: 90 ft., Weight: 94 , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: , Bottom: , Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2000 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 500, Top: 0 ft., Bottom: 2000 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 17595 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 3230, Top: 1800 ft., Bottom: 17595 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | COALMONT | 0 ft. | | | | | PIERRE | 3060 ft. | | | | | SUSSEX | 3781 ft. | | | | | SHANNON | 4358 ft. | | | | | MANCOS | 5773 ft. | | | | | NIOBRARA | 6329 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 11/1/2021 Interval Top: 6932 ft. Interval Bottom: 17474 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 9/18/2017 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/7/2017 | Treatment End Date: | 8/21/2017 | | Treatment Summary: | Plug and Perf Completion: 1,295 bbls of 15% HCL Acid, 225,354 bbls of crosslink water, and 1,079,526 lbs of 40/70, 6,613,021 lbs of 30/50 and 2,937,972 lbs of 20/40 proppant.
| | Total fluid used in treatment (bbls): | 226649 | Max pressure during treatment (psi): | 8124 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 42 | | Total acid used in treatment (bbls): | 1295 | Min frac gradient (psi/ft): | 0.77 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 53305 | | Fresh water used in treatment (bbls): | 225354 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 10630519 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 6008 ft. | | Tubing Packer Depth: | 6008 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/30/2017 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 2134 | | BBLS_OIL | 389 | | BTU_GAS | 1650 | | CALC_BBLS_H2O | 2134 | | CALC_BBLS_OIL | 389 | | CALC_GOR | 403 | | CALC_MCF_GAS | 157 | | CASING_PRESS | 465 | | GRAVITY_OIL | 38 | | MCF_GAS | 157 | | TUBING_PRESS | 3495 |
| | Perforation Data: | | Interval Top: | 6932 ft. | # Of Holes: | 1260 | | Interval Bottom: | 17474 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3174 |
| Total Gas Produced (MCF) | 9320 |
| GOR | 2936 |
| GOR Determination | BOE |
| Average BOE per Day | 13.108 |
| Average MCFE per Day | 76.044 |
| Federal Financial Assurance | i | |
|
|
