Wellbore #00 Wellbore Classification: DSPW Status: IJ - 10/5/2023 Measured TD: 10788 ft. Vertical TD: 9997 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: DSPW IJ - 10/5/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/8/2019 | | Proposed Top PZ Location: | Sec:16 Twp: 7N 80W | Footage: 978 FSL 659 FEL | | Bottom Hole Location: | Sec:16 Twp: 7N 80W | Footage: 929 FSL 310 FEL | | Proposed Depth/Form: | 10654 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DKTA , Formation: DAKOTA , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: ENRD , Formation: ENTRADA , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: LKTA , Formation: LAKOTA , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 531-23 , Unit Acreage: 1280, Drill Unit: Sec. 16 & 21: All | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16.25 in., Top: 0 ft., Depth: 51 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 51 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2318 ft., Weight: 40 , Citings Type: PLANNED | | Cement: | Sacks: 585, Top: 0 ft., Bottom: 2318 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 10654 ft., Weight: 29 , Citings Type: PLANNED | | Cement: | Sacks: 1515, Top: , Bottom: 10654 ft. |
| | |

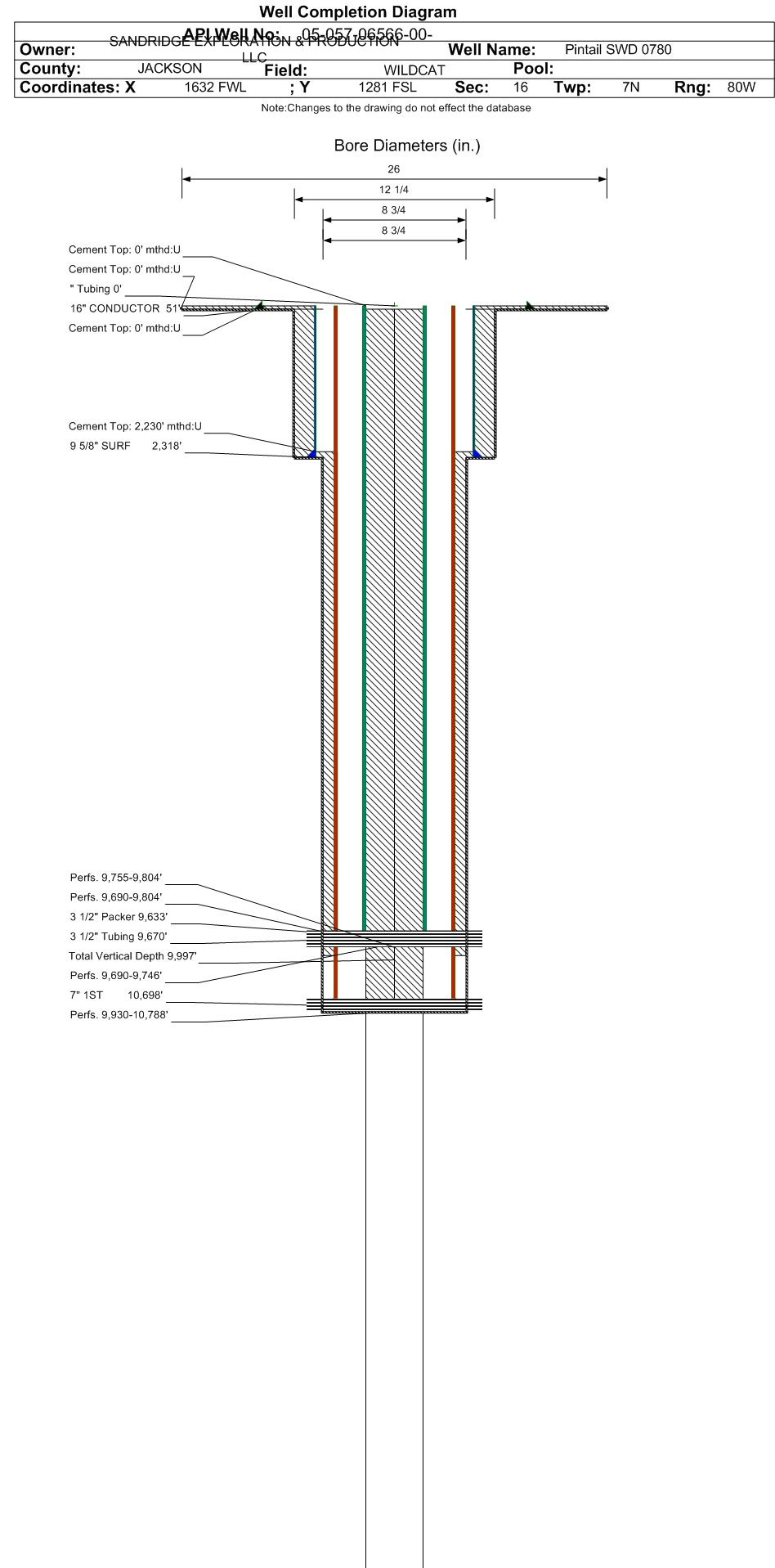

| Wellbore Completed | | Completion Date: | 1/18/2018 | | Spud Date: | 8/25/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 10788 ft. | Measured PB depth: | 9870 ft. | | True Vertical TD: | 9997 ft. | True Vertical PB depth: | 9138 ft. | | Top PZ Location: | Sec:16 Twp: 7N 80W | Footage: 978 FSL 659 FEL | | Bottom Hole Location: | Sec:16 Twp: 7N 80W | Footage: 929 FSL 310 FEL | | Log Types: | | | Log Types: | Mud, CBL, MWD (Triple Combo in 05-057-06562) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 51 ft., Weight: 75 , Citings Type: ACTUAL | | Cement: | Sacks: 60, Top: 0 ft., Bottom: 51 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2318 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 585, Top: 0 ft., Bottom: 2318 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 10698 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 965, Top: 2230 ft., Bottom: 9930 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | COALMONT | 0 ft. | | | | | LANCE | 2944 ft. | | | | | FOX HILLS | 3924 ft. | | | | | PIERRE | 4486 ft. | | | | | SUSSEX | 5642 ft. | | | | | SHANNON | 6351 ft. | | | | | MANCOS | 7913 ft. | | | | | NIOBRARA | 8264 ft. | | | | | CARLILE | 8832 ft. | | | | | FRONTIER | 9067 ft. | | | | | GRANEROS | 9281 ft. | | | | | MOWRY | 9546 ft. | | | | | DAKOTA | 9690 ft. | | | | | LAKOTA | 9755 ft. | | | | | MORRISON | 9900 ft. | | | | | ENTRADA | 10574 ft. | | | | | CHUGWATER | 10720 ft. | | | |
Formation ENRD Formation Classification: OW Status: AB - 2/18/2018 Interval Top: 9930 ft. Interval Bottom: 10788 ft.| Completed Information for Formation ENTRADA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | ENTRADA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 2/18/2018 | Treatment End Date: | N/A | | Treatment Summary: | Circulation could not be established to perforate this formation. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation ENRD. |
| | Perforation Data: | | Interval Top: | 9930 ft. | # Of Holes: | | | Interval Bottom: | 10788 ft. | Hole Size: | |
|
Formation LKTA Formation Classification: OW Status: CM - 4/27/2020 Interval Top: 9755 ft. Interval Bottom: 9804 ft.| Completed Information for Formation LAKOTA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | LAKOTA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation LKTA. |
| | Perforation Data: | | Interval Top: | 9755 ft. | # Of Holes: | 196 | | Interval Bottom: | 9804 ft. | Hole Size: | 0.56 in. |
|
Formation DK-LK Formation Classification: DSPW Status: IJ - 10/5/2023 Interval Top: 9690 ft. Interval Bottom: 9804 ft.| Completed Information for Formation DAKOTA-LAKOTA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | DAKOTA-LAKOTA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | ACID JOB | | Treatment Date: | 2/26/2018 | Treatment End Date: | 3/4/2018 | | Treatment Summary: | The acid treatment contained 2 stages, all stimulated with water and acid. 452 bbls of 15% NEFE HCL acid and 1556 bbls of freshwater. | | Total fluid used in treatment (bbls): | 2008 | Max pressure during treatment (psi): | 4800 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 2 | | Total acid used in treatment (bbls): | 452 | Min frac gradient (psi/ft): | 0.65 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 790 | | Fresh water used in treatment (bbls): | 1556 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | 3.5 in. | Tubing Setting Depth: | 9655 ft. | | Tubing Packer Depth: | 9647 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation DK-LK. |
| | Perforation Data: | | Interval Top: | 9690 ft. | # Of Holes: | 396 | | Interval Bottom: | 9804 ft. | Hole Size: | 0.56 in. |
|
Formation DKTA Formation Classification: OW Status: CM - 4/27/2020 Interval Top: 9690 ft. Interval Bottom: 9746 ft.| Completed Information for Formation DAKOTA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | DAKOTA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation DKTA. |
| | Perforation Data: | | Interval Top: | 9690 ft. | # Of Holes: | 200 | | Interval Bottom: | 9746 ft. | Hole Size: | 0.56 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
