COGIS - WELL SCOUT CARD

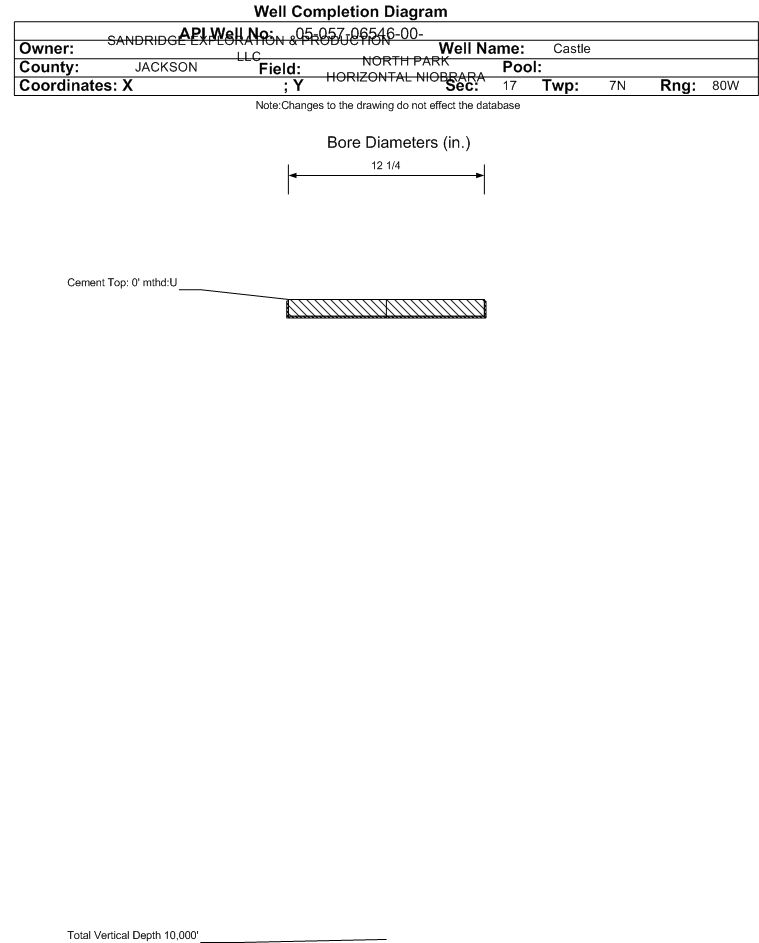

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-057-06546		Well Classification: DA Status: PA - 6/23/2016
Well Name/No:Castle #0780 2-17H20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:FULCRUM ENERGY OPERATING LLC - 10805
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/23/2016
FacilityID:444873LocationID:324757
County:JACKSON #057Location:NWNW 17 7N80W 6
Field:NORTH PARK HORIZONTAL NIOBRARA - #60120Elevation:8149 ft.
Basin:NORTH PARK BASIN
Planned Location:187FNL  743 FWLLat/Long: 40.584244 / -106.404447Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.584244 / -106.404447Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification:              Status: AB - 6/23/2016             Measured TD: 264 ft.

 Wellbore Data for Original WellboreWellbore Classification:         AB - 6/23/2016
Wellbore Permit
Permit #: Expiration Date:2/16/2018
Proposed Top PZ Location:Sec:17 Twp: 7N 80W Footage: 921 FNL  789 FWL
Bottom Hole Location:Sec:20 Twp: 7N 80W Footage: 300 FSL  990 FWL
Proposed Depth/Form:16925 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 531-22 , Unit Acreage: 1280, Drill Unit: Sec. 17 & 20: All
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16.25 in., Top: 0 ft., Depth: 90 ft., Weight: 42 , Citings Type: PLANNED
Cement:Sacks: 189, Top: 0 ft., Bottom: 90 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2500 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 576, Top: 0 ft., Bottom: 2500 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 16925 ft., Weight: 20 , Citings Type: PLANNED
Cement:Sacks: 2981, Top: 2300 ft., Bottom: 16925 ft.
Wellbore Completed
Completion Date:N/A
Spud Date:6/15/2016Spud Date Is:ACTUAL
Measured TD:264 ft.Measured PB depth:264 ft.
True Vertical TD:True Vertical PB depth:
Bottom Hole Location:Sec:20 Twp: 7N 80WFootage: 300 FSL  990 FWL
Log Types:
Casing:String Type: OPEN HOLE, Hole Size: 12.25 in., Size: , Top: 0 ft., Depth: 264 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/23/2016
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
