COGIS - WELL SCOUT CARD

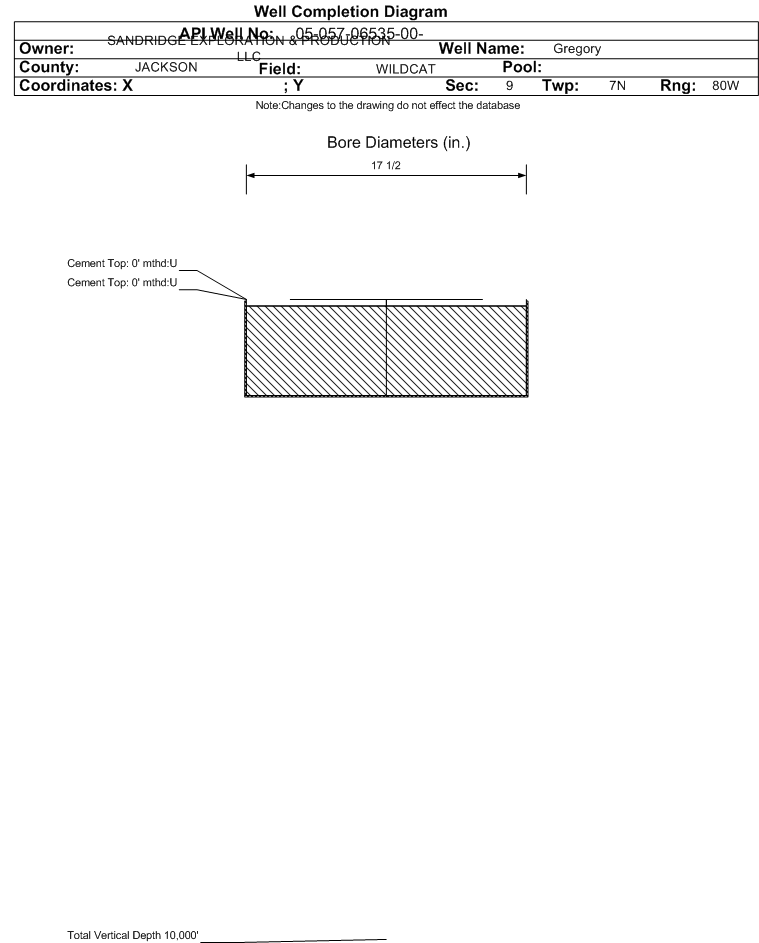

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-057-06535		Well Classification: LO Status: PA - 1/21/2016
Well Name/No:Gregory #5-09H
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:FULCRUM ENERGY OPERATING LLC - 10805
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/21/2016
FacilityID:439602LocationID:439603
County:JACKSON #057Location:SWSW 9 7N80W 6
Field:WILDCAT - #99999Elevation:8118 ft.
Basin:NORTH PARK BASIN
Planned Location:202FSL  71 FWLLat/Long: 40.585258 / -106.387760Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.585258 / -106.387760Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: LO             Status: PA - 1/21/2016             Measured TD: 1500 ft.

 Wellbore Data for Original WellboreWellbore Classification: LO        PA - 1/21/2016
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:10/30/2016
Proposed Top PZ Location:Sec:9 Twp: 7N 80W Footage: 965 FSL  350 FWL
Bottom Hole Location:Sec:9 Twp: 7N 80W Footage: 300 FNL  350 FWL
Proposed Depth/Form:12448 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 531-18 , Unit Acreage: 640, Drill Unit: Sec. 9: All
Casing:String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 1500 ft., Weight: 54.5 , Citings Type: PLANNED
Cement:Sacks: 1083, Top: 0 ft., Bottom: 1500 ft.
Casing:String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 5550 ft., Weight: 40 , Citings Type: PLANNED
Cement:Sacks: 1320, Top: 0 ft., Bottom: 5550 ft.
Casing:String Type: 2ND, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 12315 ft., Weight: 20 , Citings Type: PLANNED
Cement:Sacks: 1336, Top: 5350 ft., Bottom: 12315 ft.
Wellbore Completed
Completion Date:1/20/2016
Spud Date:1/15/2016Spud Date Is:ACTUAL
Measured TD:1500 ft.Measured PB depth:1400 ft.
True Vertical TD:True Vertical PB depth:
Bottom Hole Location:Sec:9 Twp: 7N 80WFootage: 300 FNL  350 FWL
Log Types:No logs were run. No casing was set.
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 104 ft., Weight: 52.78 , Citings Type: ACTUAL
Cement:Sacks: 216, Top: 0 ft., Bottom: 104 ft., Determination Method: VISU
Casing:String Type: OPEN HOLE, Hole Size: 17.5 in., Size: , Top: 104 ft., Depth: 1500 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/21/2016
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
