COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-057-06530		Well Classification: LO Status: SO - 1/1/2021
Well Name/No:Ray Ranch 0780 #4-21H16
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:FULCRUM ENERGY OPERATING LLC - 10805
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SOStatus Date1/1/2021
FacilityID:438251LocationID:438250
County:JACKSON #057Location:NWNE 21 7N80W 6
Field:NORTH PARK HORIZONTAL NIOBRARA - #60120Elevation:8239 ft.
Basin:NORTH PARK BASIN
Planned Location:251FNL  1912 FELLat/Long: 40.569535 / -106.375849Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.569535 / -106.375851Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: LO             Status: AP - 6/30/2025             Measured TD: 2407 ft.

 Wellbore Data for Original WellboreWellbore Classification: LO        AP - 6/30/2025
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:6/29/2028
Proposed Top PZ Location:Sec:21 Twp: 7N 80W Footage: 2022 FSL  1151 FEL
Bottom Hole Location:Sec:16 Twp: 7N 80W Footage: 100 FNL  351 FEL
Proposed Depth/Form:18723 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 531-65 , Unit Acreage: 640, Drill Unit: Township 7 North, Ra
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 96 ft., Weight: 106.5 , Citings Type: PLANNED
Cement:Sacks: 315, Top: 0 ft., Bottom: 96 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2407 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 663, Top: 0 ft., Bottom: 2407 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 18723 ft., Weight: 20 , Citings Type: PLANNED
Cement:Sacks: 3136, Top: 1407 ft., Bottom: 18723 ft.
Wellbore Completed
Completion Date:8/11/2016
Spud Date:8/9/2016Spud Date Is:ACTUAL
Measured TD:2407 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Bottom Hole Location:Sec:16 Twp: 7N 80WFootage: 100 FNL  351 FEL
Log Types:

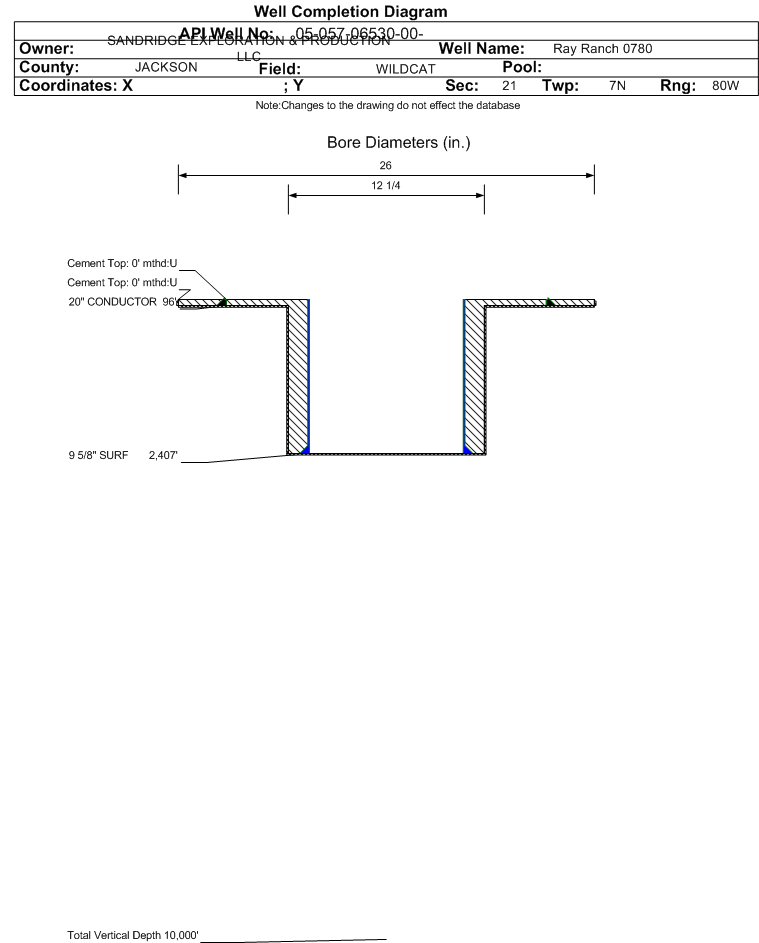

Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 96 ft., Weight: 106.5 , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 96 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2407 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 663, Top: 0 ft., Bottom: 2407 ft., Determination Method: VISU
  No formation data to display.
Primary Well Designation:
Noticed Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
07/08/2025
Defined Inactive (SO )YDefined Inactive
01/01/2021
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
