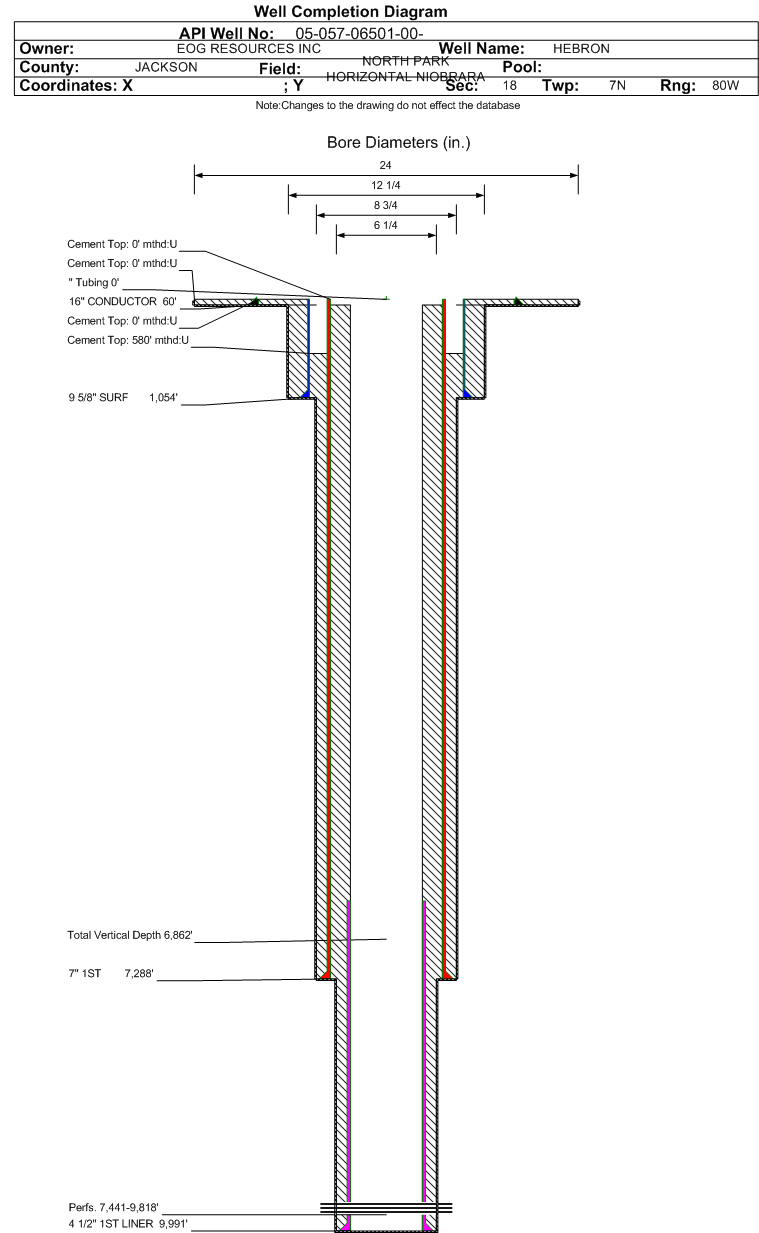

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-057-06501		Well Classification: OW Status: TA - 10/1/2025
Well Name/No:HEBRON #1-18H
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:FULCRUM ENERGY OPERATING LLC - 10805
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:TAStatus Date10/1/2025
FacilityID:413066LocationID:414127
County:JACKSON #057Location:NWNE 18 7N80W 6
Field:NORTH PARK HORIZONTAL NIOBRARA - #60120Elevation:8154 ft.
Basin:NORTH PARK BASIN
Planned Location:308FNL  2326 FELLat/Long: 40.584161 / -106.415492Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.584158 / -106.415492Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: TA - 10/1/2025             Measured TD: 9994 ft.    Vertical TD: 6862 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        TA - 10/1/2025
Wellbore PermitHORIZONTAL
Permit #:20088417 Expiration Date:8/24/2010
Proposed Top PZ Location:Sec:7 Twp: 7N 80W Footage: 807 FSL  1898 FEL
Bottom Hole Location:Sec:7 Twp: 7N 80W Footage: 2048 FNL  1099 FEL
Proposed Depth/Form:12607 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 531-2 , Unit Acreage: 628, Drill Unit: ALL
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 50 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 50, Top: 0 ft., Bottom:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 1000 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 405, Top: 0 ft., Bottom:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: , Depth: 7941 ft., Weight: 23 , Citings Type: PLANNED
Cement:Sacks: 520, Top: 1654 ft., Bottom:
Casing:String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: , Depth: 12607 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 540, Top: 6991 ft., Bottom:
Wellbore Completed
Completion Date:10/14/2010
Spud Date:8/19/2010Spud Date Is:ACTUAL
Measured TD:9994 ft.Measured PB depth:9988 ft.
True Vertical TD:6862 ft.True Vertical PB depth:6857 ft.
Top PZ Location:Sec:7 Twp: 7N 80WFootage: 807 FSL  1898 FEL
Bottom Hole Location:Sec:7 Twp: 7N 80WFootage: 2048 FNL  1099 FEL
Log Types:CBL/VDL/GR/CCL, 2 MUD
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1054 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 408, Top: 0 ft., Bottom: 1054 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7288 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 870, Top: 580 ft., Bottom: 7288 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 6.25 in., Size: 4.5 in., Top: 6452 ft., Depth: 9991 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4461 ft.
SHANNON5001 ft.
NIOBRARA6593 ft.

Formation NBRR                     Formation Classification:  OW                     Status:  TA - 10/1/2025                 Interval Top: 7441 ft.    Interval Bottom: 9818 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:12/20/2010Choke Size:
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/15/2010
Treatment Summary:250,755# 20/40 Sand, 9,970 Gals Linear Gel Pad, 125,877 Gals Linear Gel 20, 24,109 Gals Delta 200 Pad, 158,253 Gals Delta 200
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/25/2010Test Method:Flowing
Hours Tested:24Gas Type:SHALE
Gas Disposal:FLARED
Test TypeMeasure
BBLS_OIL 30
BTU_GAS 1605
CASING_PRESS 50
GRAVITY_OIL 34
MCF_GAS 70
TUBING_PRESS 110
Perforation Data:
Interval Top:7441 ft.# Of Holes:243
Interval Bottom:9818 ft.Hole Size:0.75 in.
Primary Well Designation:
Noticed Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
03/30/2023
Defined Inactive (TA )YDefined Inactive
05/18/2025
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
