Wellbore #00 Wellbore Classification: OW Status: TA - 8/1/2025 Measured TD: 12120 ft. Vertical TD: 6937 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW TA - 8/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 9/18/2015 | | Proposed Top PZ Location: | Sec:31 Twp: 7N 80W | Footage: 623 FNL 2451 FEL | | Bottom Hole Location: | Sec:31 Twp: 7N 80W | Footage: 568 FSL 623 FWL | | Proposed Depth/Form: | 8000 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 531-1 , Unit Acreage: 622, Drill Unit: ALL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1430 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 1010, Top: 0 ft., Bottom: 1430 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 11060 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 1900, Top: 0 ft., Bottom: 12120 ft. | | Casing: | String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: , Depth: 6750 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 560, Top: 6750 ft., Bottom: | | Casing: | String Type: OPEN HOLE, Hole Size: 8.75 in., Size: , Top: 1000 ft., Depth: 8000 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

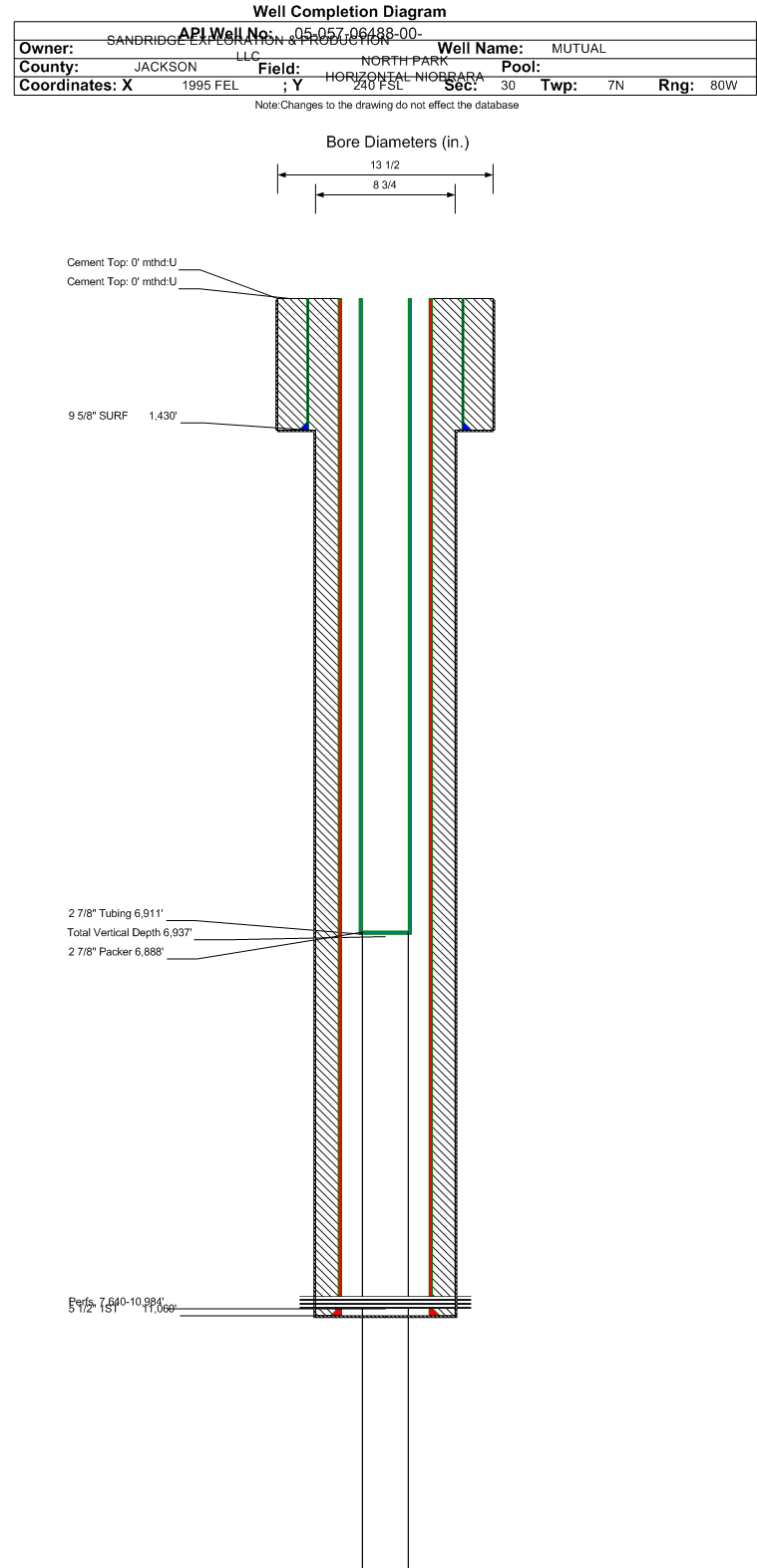

| Wellbore Completed | | Completion Date: | 10/27/2014 | | Spud Date: | 8/21/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 12120 ft. | Measured PB depth: | 11060 ft. | | True Vertical TD: | 6937 ft. | True Vertical PB depth: | 7015 ft. | | Top PZ Location: | Sec:31 Twp: 7N 80W | Footage: 623 FNL 2451 FEL | | Bottom Hole Location: | Sec:31 Twp: 7N 80W | Footage: 568 FSL 623 FWL | | Log Types: | MWD Gamma Ray, CBL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1430 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 1010, Top: 0 ft., Bottom: 1430 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 11060 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 1900, Top: 0 ft., Bottom: 11060 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | TERTIARY | 0 ft. | | N | N | | SUDDUTH COAL | 2264 ft. | | N | N | | SHANNON | 5344 ft. | | N | N | | NIOBRARA | 6712 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: TA - 8/1/2025 Interval Top: 7640 ft. Interval Bottom: 10984 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 12/22/2014 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 11/10/2014 | Treatment End Date: | 11/18/2014 | | Treatment Summary: | Twenty four stage horizontal well stimulation with 4,591,685 lbs of 20/40 sand; 845 barrells of 15%HCL; 106,015 barrels of crosslink gel. | | Total fluid used in treatment (bbls): | 106860 | Max pressure during treatment (psi): | 7803 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 24 | | Total acid used in treatment (bbls): | 845 | Min frac gradient (psi/ft): | 0.68 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 15048 | | Fresh water used in treatment (bbls): | 106015 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4591685 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 6911 ft. | | Tubing Packer Depth: | 6908 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/23/2014 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 668 | | BBLS_OIL | 301 | | BTU_GAS | 1450 | | CALC_BBLS_H2O | 668 | | CALC_BBLS_OIL | 301 | | CALC_GOR | 678 | | CALC_MCF_GAS | 204 | | CASING_PRESS | 850 | | GRAVITY_OIL | 37 | | MCF_GAS | 204 | | TUBING_PRESS | 771 |
| | Perforation Data: | | Interval Top: | 7640 ft. | # Of Holes: | 1152 | | Interval Bottom: | 10984 ft. | Hole Size: | 0.375 in. |
|
Sidetrack #01 Wellbore Classification: Status: AL - 8/16/2022 Measured TD: | Wellbore Data for Sidetrack #01 | Wellbore Classification: AL - 8/16/2022 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 9/18/2015 | | Proposed Top PZ Location: | Sec:31 Twp: 7N 80W | Footage: 600 FNL 2562 FEL | | Bottom Hole Location: | Sec:31 Twp: 7N 80W | Footage: 620 FSL 620 FWL | | Proposed Depth/Form: | 12518 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 531-1 , Unit Acreage: 622, Drill Unit: ALL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 405, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7647 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 530, Top: 800 ft., Bottom: 7647 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.25 in., Size: 4.5 in., Top: 6750 ft., Depth: 12518 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 575, Top: 6750 ft., Bottom: 12518 ft. |
| | |
| Wellbore Completed | | Completion Date: | N/A | | Measured TD: | | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1430 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 1010, Top: 0 ft., Bottom: 1430 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 11060 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 1900, Top: , Bottom: 11060 ft., Determination Method: | | No formation data to display. |
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
07/01/2025 |
| Defined Inactive (TA) | Y | Last Production
07/16/2025 |
| Low Producing | Y | Production Period
01/2025 - 12/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | Y |
|
|
