COGIS - WELL SCOUT CARD

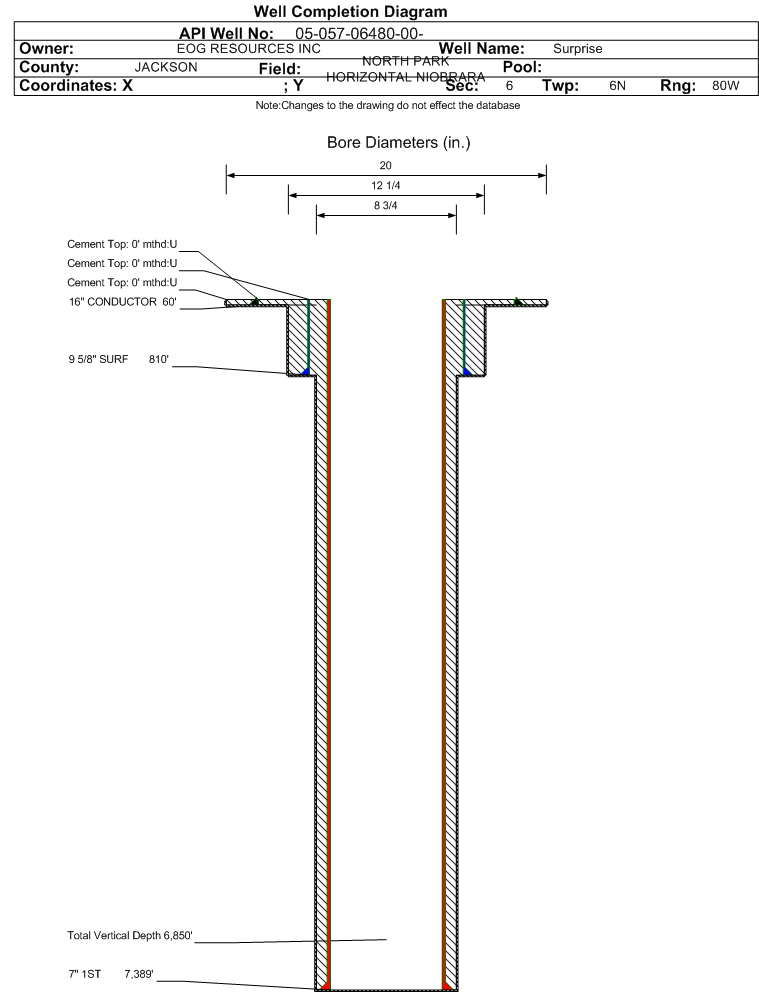

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-057-06480		Well Classification: OW Status: SI - 8/1/2022
Well Name/No:Surprise #4-06H
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:FULCRUM ENERGY OPERATING LLC - 10805
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:Fee/Fed 65600
Facility Status:SIStatus Date8/1/2022
FacilityID:298842LocationID:416625
County:JACKSON #057Location:SWSE 6 6N80W 6
Field:NORTH PARK HORIZONTAL NIOBRARA - #60120Elevation:8218 ft.
Basin:NORTH PARK BASIN
Planned Location:382FSL  2025 FELLat/Long: 40.512561 / -106.416789Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.512561 / -106.416789Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 2/10/2017             Measured TD: 9990 ft.    Vertical TD: 6850 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 2/10/2017
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:4/12/2012
Proposed Top PZ Location:Sec:7 Twp: 6N 80W Footage: 867 FNL  1928 FWL
Bottom Hole Location:Sec:7 Twp: 6N 80W Footage: 1873 FSL  1051 FWL
Proposed Depth/Form:11446 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 531-2 , Unit Acreage: 623, Drill Unit: All
Casing:String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: , Depth: 6228 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 510, Top: 6228 ft., Bottom: 6228 ft.
Casing:String Type: 1ST LINER, Hole Size: 6.25 in., Size: 4.5 in., Top: , Depth: 11446 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 530, Top: 5940 ft., Bottom: 11446 ft.
Wellbore Completed
Completion Date:8/18/2010
Spud Date:8/5/2010Spud Date Is:ACTUAL
Measured TD:9990 ft.Measured PB depth:9990 ft.
True Vertical TD:6850 ft.True Vertical PB depth:6850 ft.
Bottom Hole Location:Sec:7 Twp: 6N 80WFootage: 1873 FSL  1051 FWL
Log Types:MWD
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 42 , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 60 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 810 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 810 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7389 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 1050, Top: 0 ft., Bottom: 7389 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
TERTIARY0 ft.1248 ft.NN
SUDDUTH COAL2248 ft.2992 ft.NN
SUSSEX4469 ft.5047 ft.NN
SHANNON5047 ft.6173 ft.NN
NIOBRARA6173 ft.6491 ft.NN
  No formation data to display.

Sidetrack #01             Wellbore Classification: OW             Status: SI - 8/1/2022             Measured TD: 11200 ft.    Vertical TD: 6927 ft.

 Wellbore Data for Sidetrack #01Wellbore Classification: OW        SI - 8/1/2022
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:10/14/2012
Proposed Top PZ Location:Sec:7 Twp: 6N 80W Footage: 616 FNL  2016 FWL
Bottom Hole Location:Sec:7 Twp: 6N 80W Footage: 620 FSL  620 FWL
Proposed Depth/Form:11446 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 531-2 , Unit Acreage: 640, Drill Unit: ALL
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 60 ft., Weight: 42 , Citings Type: PLANNED
Cement:Sacks: 50, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 800 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 325, Top: 0 ft., Bottom: 800 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: , Depth: 7294 ft., Weight: 23 , Citings Type: PLANNED
Cement:Sacks: 570, Top: 0 ft., Bottom: 7294 ft.
Casing:String Type: 1ST LINER, Hole Size: 6.25 in., Size: 4.5 in., Top: , Depth: 11446 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 530, Top: 5940 ft., Bottom: 11446 ft.
Wellbore Completed
Completion Date:10/5/2010
Spud Date:8/5/2010Spud Date Is:ACTUAL
Measured TD:11200 ft.Measured PB depth:11192 ft.
True Vertical TD:6927 ft.True Vertical PB depth:6925 ft.
Top PZ Location:Sec:7 Twp: 6N 80WFootage: 616 FNL  2016 FWL
Bottom Hole Location:Sec:7 Twp: 6N 80WFootage: 620 FSL  620 FWL
Log Types:Weatherford CMI/GR, CBL, MUD, MUD, HOLE VOLE CALIPER
Casing:String Type: CONDUCTOR, Hole Size: 22 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 42 , Citings Type: ACTUAL
Cement:Sacks: 50, Top: 0 ft., Bottom: 60 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 810 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 810 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7389 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 1050, Top: 800 ft., Bottom: 7389 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 6.25 in., Size: 4.5 in., Top: 6417 ft., Depth: 11196 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4490 ft.
SHANNON5062 ft.
NIOBRARA6570 ft.

Formation NBRR                     Formation Classification:  OW                     Status:  SI - 8/1/2022                  Interval Top: 7420 ft.    Interval Bottom: 11164 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/5/2010Choke Size:16.500 in.
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/15/2010
Treatment Summary:Frac'd with 1,234,411 Gals Gelled Water, 770,275 # 20/40 Sand, 650,461 # 30/50 Sand.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/8/2010Test Method:Flowing
Hours Tested:24Gas Type:SHALE
Gas Disposal:FLARED
Test TypeMeasure
BBLS_H2O 385
BBLS_OIL 362
BTU_GAS 1821
CALC_BBLS_H2O 385
CALC_BBLS_OIL 362
CALC_MCF_GAS 294
CASING_PRESS 870
GRAVITY_OIL 38
MCF_GAS 294
Perforation Data:
Interval Top:7420 ft.# Of Holes:672
Interval Bottom:11164 ft.Hole Size:0.39 in.
Primary Well Designation:
Noticed Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
01/29/2024
Defined Inactive (SI)YLast Production
07/31/2022
Low ProducingYProduction Period
01/2025 - 12/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
