COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-24029		Well Classification: GW Status: PR - 10/30/2019
Well Name/No:FEDERAL #RWF 43-7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC62160
Facility Status:PRStatus Date10/30/2019
FacilityID:457057LocationID:335744
County:GARFIELD #045Location:LOT 4 17 6S94W 6
Field:RULISON - #75400Elevation:6175 ft.
Basin:PICEANCE BASIN
Planned Location:473FNL  21 FWLLat/Long: 39.531131 / -107.921225Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.531130 / -107.921230Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 9/6/2019
End Date: 9/14/2019
Reported: 10/14/2019
Days to report: 30
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/30/2019             Measured TD: 9736 ft.    Vertical TD: 8994 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/30/2019
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:8/30/2020
Proposed Top PZ Location:Sec:7 Twp: 6S 94W Footage: 2497 FSL  935 FEL
Bottom Hole Location:Sec:7 Twp: 6S 94W Footage: 2497 FSL  935 FEL
Proposed Depth/Form:9765 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 47.4 , Citings Type: PLANNED
Cement:Sacks: 134, Top: 0 ft., Bottom: 80 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1300 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 317, Top: 0 ft., Bottom: 1300 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9765 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 1146, Top: 5051 ft., Bottom: 9765 ft.

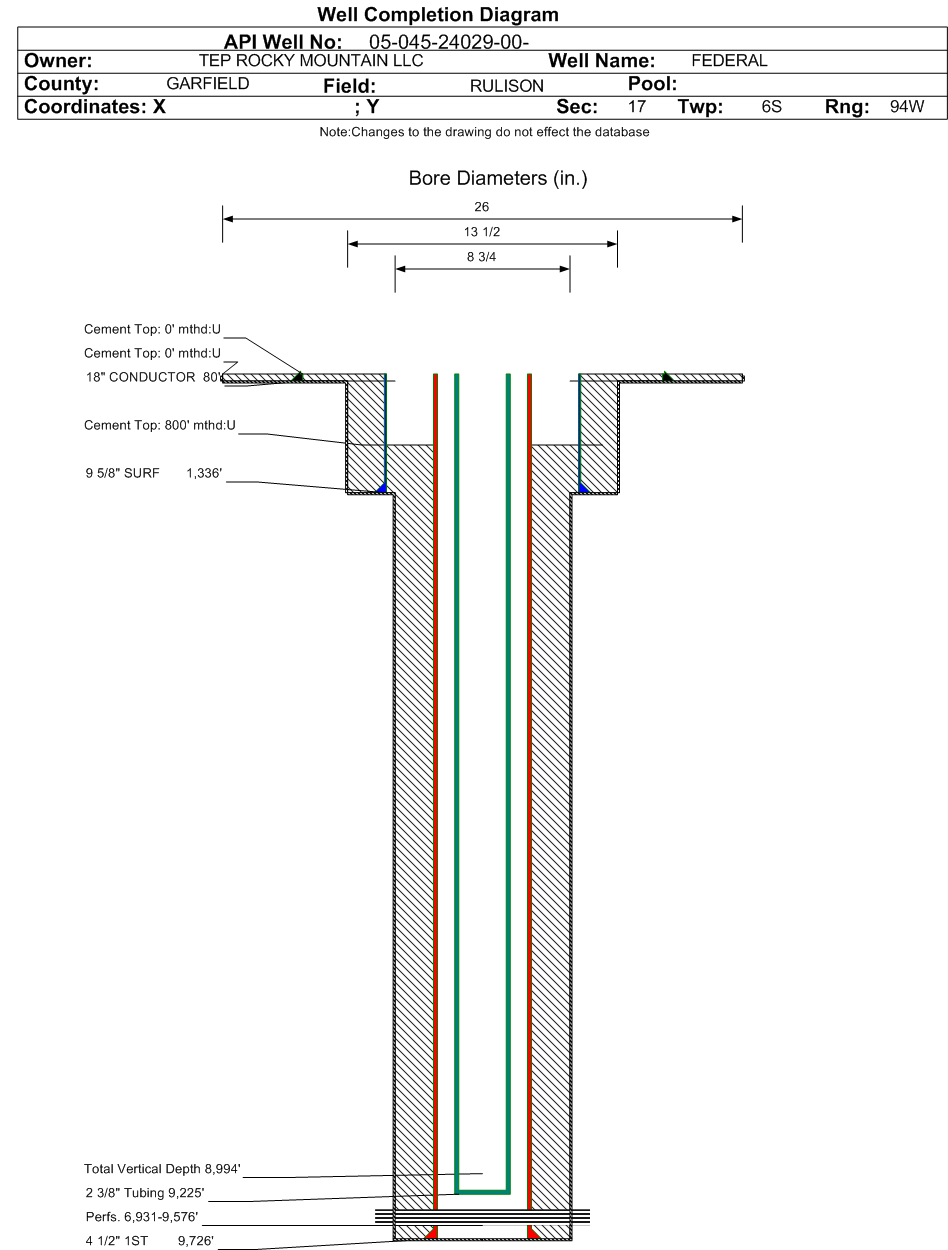

Wellbore Completed
Completion Date:8/7/2019
Spud Date:8/1/2019Spud Date Is:ACTUAL
Measured TD:9736 ft.Measured PB depth:9696 ft.
True Vertical TD:8994 ft.True Vertical PB depth:8953 ft.
Top PZ Location:Sec:7 Twp: 6S 94WFootage: 2406 FSL  904 FEL
Bottom Hole Location:Sec:7 Twp: 6S 94WFootage: 2505 FSL  935 FEL
Log Types:CBL, NEU, (Triple Combo in API 045-24035)
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 47.4 , Citings Type: ACTUAL
Cement:Sacks: 134, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1336 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 345, Top: 0 ft., Bottom: 1336 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9726 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1750, Top: 800 ft., Bottom: 9736 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2695 ft.
WASATCH4922 ft.
MESAVERDE5995 ft.
OHIO CREEK5995 ft.
WILLIAMS FORK6087 ft.
CAMEO8786 ft.
ROLLINS9643 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/30/2019                Interval Top: 6931 ft.    Interval Bottom: 9576 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:10/30/2019Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:9/6/2019Treatment End Date:9/14/2019
Treatment Summary:186018 bbls of Slickwater; 1831740 100/Mesh; 5709 gals of biocide
Total fluid used in treatment (bbls):186154Max pressure during treatment (psi):8291
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:15
Total acid used in treatment (bbls):0Min frac gradient (psi/ft):0.72
Recycled water used in treatment (bbls):186018Total flowback volume recovered (bbls):25476
Fresh water used in treatment (bbls):136Disposition method For flowback:RECYCLE
Total proppant used (lbs):1831740Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:9225 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/30/2019Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1078
CALC_MCF_GAS 2077
CASING_PRESS 2004
MCF_GAS 2077
TUBING_PRESS 1825
Perforation Data:
Interval Top:6931 ft.# Of Holes:315
Interval Bottom:9576 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)406
Total Gas Produced (MCF)166526
GOR410162
GOR DeterminationMCFE
Average BOE per Day79.792
Average MCFE per Day462.762

 Federal Financial Assurance  i Y

 Tribal Well  i No
