COGIS - WELL SCOUT CARD

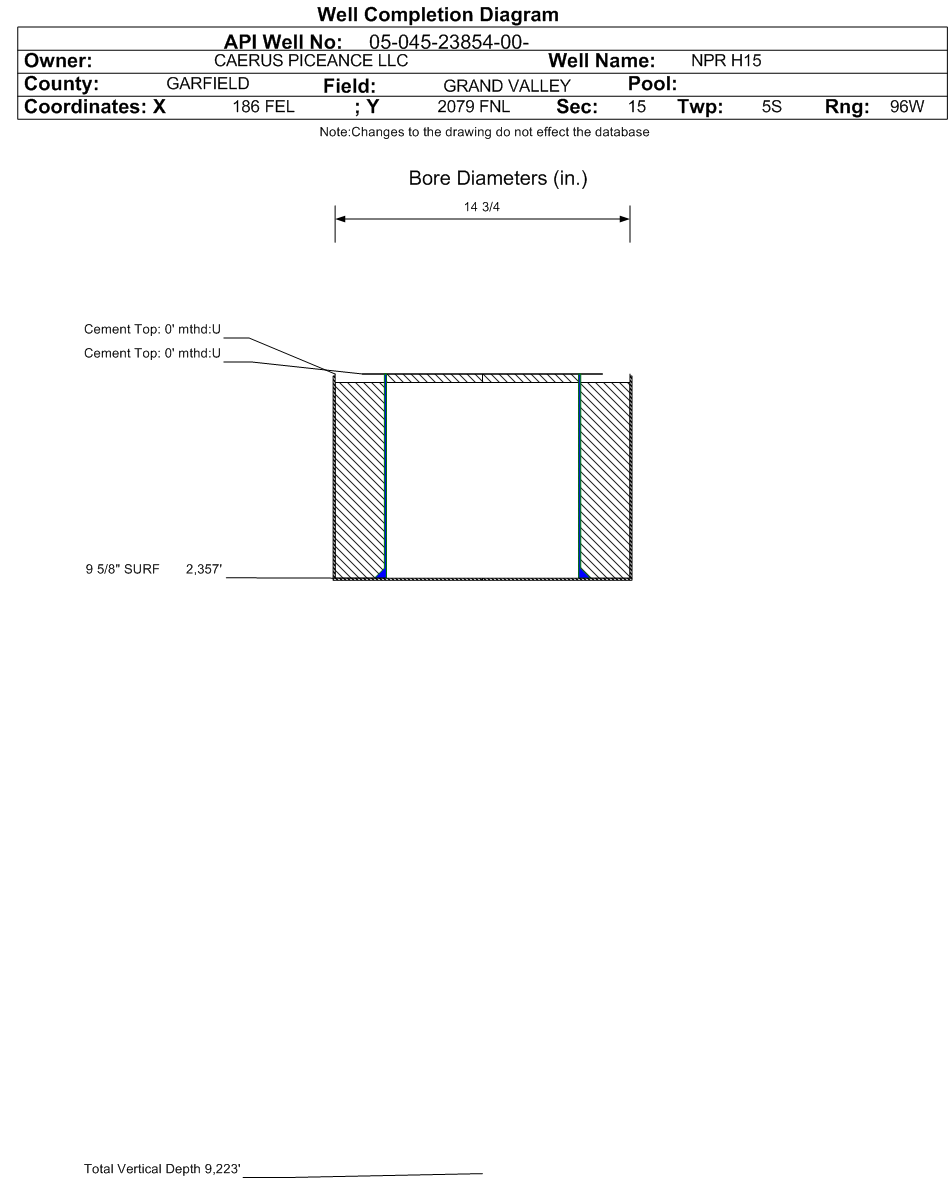

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-23854		Well Classification: GW Status: PA - 10/17/2018
Well Name/No:NPR H15 #25C-10 596
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CAERUS PICEANCE LLC - 10456
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/17/2018
FacilityID:454264LocationID:425805
County:GARFIELD #045Location:SENE 15 5S96W 6
Field:GRAND VALLEY - #31290Elevation:9428 ft.
Basin:PICEANCE BASIN
Planned Location:2079FNL  186 FELLat/Long: 39.616628 / -108.146739Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.616628 / -108.146739Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/17/2018             Measured TD: 9930 ft.    Vertical TD: 9223 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/17/2018
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:3/8/2020
Proposed Top PZ Location:Sec:10 Twp: 5S 96W Footage: 317 FSL  1379 FEL
Bottom Hole Location:Sec:10 Twp: 5S 96W Footage: 317 FSL  1379 FEL
Proposed Depth/Form:9899 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 100 ft., Weight: 54# , Citings Type: PLANNED
Cement:Sacks: 218, Top: 0 ft., Bottom: 100 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2000 ft., Weight: 36# , Citings Type: PLANNED
Cement:Sacks: 562, Top: 0 ft., Bottom: 2000 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9900 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 1254, Top: 2826 ft., Bottom: 9900 ft.
Wellbore Completed
Completion Date:N/A
Spud Date:8/6/2018Spud Date Is:ACTUAL
Measured TD:9930 ft.Measured PB depth:4707 ft.
True Vertical TD:9223 ft.True Vertical PB depth:4155 ft.
Bottom Hole Location:Sec:10 Twp: 5S 96WFootage: 317 FSL  1379 FEL
Log Types:
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 100 ft., Weight: 54# , Citings Type: ACTUAL
Cement:Sacks: 218, Top: 0 ft., Bottom: 100 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2357 ft., Weight: 36# , Citings Type: ACTUAL
Cement:Sacks: 705, Top: 0 ft., Bottom: 2357 ft., Determination Method: VISU
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/17/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
