Wellbore #00 Wellbore Classification: GW Status: PR - 1/2/2019 Measured TD: 9201 ft. Vertical TD: 8485 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/2/2019 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 10/19/2019 | | Proposed Top PZ Location: | Sec:24 Twp: 6S 95W | Footage: 2279 FNL 1927 FEL | | Bottom Hole Location: | Sec:24 Twp: 6S 95W | Footage: 2279 FNL 1927 FEL | | Proposed Depth/Form: | 9266 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-79 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 47.4 , Citings Type: PLANNED | | Cement: | Sacks: 134, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1100 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 266, Top: 0 ft., Bottom: 1100 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9243 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1224, Top: 2571 ft., Bottom: 9243 ft. |
| | |

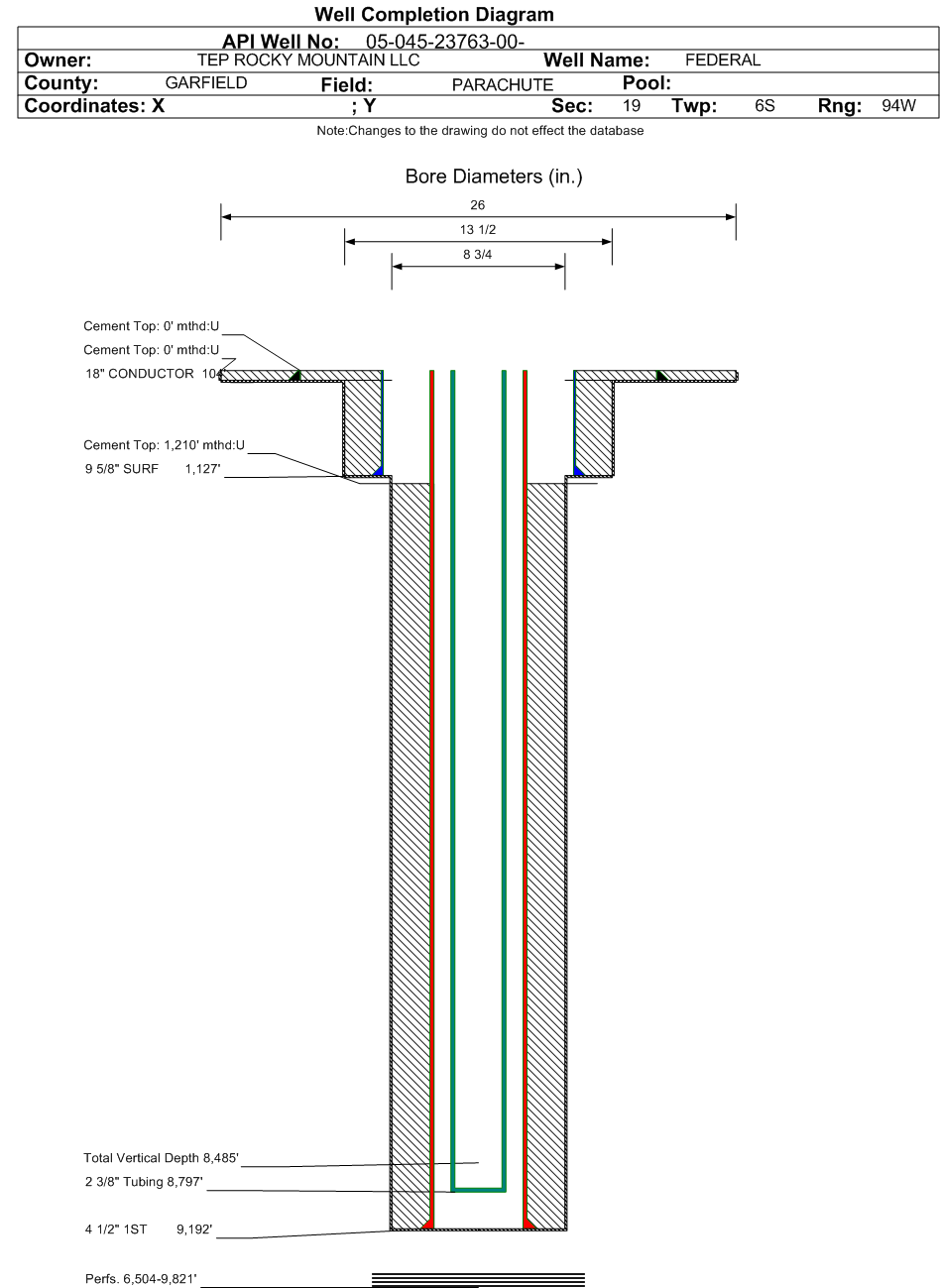

| Wellbore Completed | | Completion Date: | 10/12/2018 | | Spud Date: | 10/7/2018 | Spud Date Is: | ACTUAL | | Measured TD: | 9201 ft. | Measured PB depth: | 9161 ft. | | True Vertical TD: | 8485 ft. | True Vertical PB depth: | 8446 ft. | | Top PZ Location: | Sec:24 Twp: 6S 95W | Footage: 2268 FNL 1877 FEL | | Bottom Hole Location: | Sec:24 Twp: 6S 95W | Footage: 2307 FNL 1916 FEL | | Log Types: | CBL, NEU, (TRIPLE COMBO IN API 045-23764 and IN API 045-23776) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 104 ft., Weight: 47.44 , Citings Type: ACTUAL | | Cement: | Sacks: 174, Top: 0 ft., Bottom: 104 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1127 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 1127 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9192 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1950, Top: 1210 ft., Bottom: 9201 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2742 ft. | | | | | WILLIAMS FORK | 5441 ft. | | | | | MESAVERDE | 5543 ft. | | | | | OHIO CREEK | 5543 ft. | | | | | CAMEO | 8653 ft. | | | | | ROLLINS | 9134 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 1/2/2019 Interval Top: 6504 ft. Interval Bottom: 9821 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/2/2019 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 11/27/2018 | Treatment End Date: | 12/1/2018 | | Treatment Summary: | 95647 bbLs of Slickwater; 946900 100/Mesh; 2415 gals of biocide; 2250 gals of acid | | Total fluid used in treatment (bbls): | 95759 | Max pressure during treatment (psi): | 8642 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 13 | | Total acid used in treatment (bbls): | 54 | Min frac gradient (psi/ft): | 0.78 | | Recycled water used in treatment (bbls): | 95647 | Total flowback volume recovered (bbls): | 17660 | | Fresh water used in treatment (bbls): | 58 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 946900 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8797 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/2/2019 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1132 | | CALC_MCF_GAS | 2200 | | CASING_PRESS | 1935 | | MCF_GAS | 2200 | | TUBING_PRESS | 1640 |
| | Perforation Data: | | Interval Top: | 6504 ft. | # Of Holes: | 312 | | Interval Bottom: | 9821 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 187 |
| Total Gas Produced (MCF) | 111668 |
| GOR | 597155 |
| GOR Determination | MCFE |
| Average BOE per Day | 53.261 |
| Average MCFE per Day | 308.927 |
| Federal Financial Assurance | i | Y |
|
|
