Wellbore #00 Wellbore Classification: GW Status: PR - 7/30/2018 Measured TD: 8488 ft. Vertical TD: 8301 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/30/2018 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 9/26/2019 | | Proposed Top PZ Location: | Sec:26 Twp: 6S 95W | Footage: 2218 FSL 1461 FEL | | Bottom Hole Location: | Sec:26 Twp: 6S 95W | Footage: 2218 FSL 1461 FEL | | Proposed Depth/Form: | 8519 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-79 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 47.4 , Citings Type: PLANNED | | Cement: | Sacks: 134, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1100 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 266, Top: 0 ft., Bottom: 1100 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8519 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1145, Top: 2274 ft., Bottom: 8519 ft. |
| | |

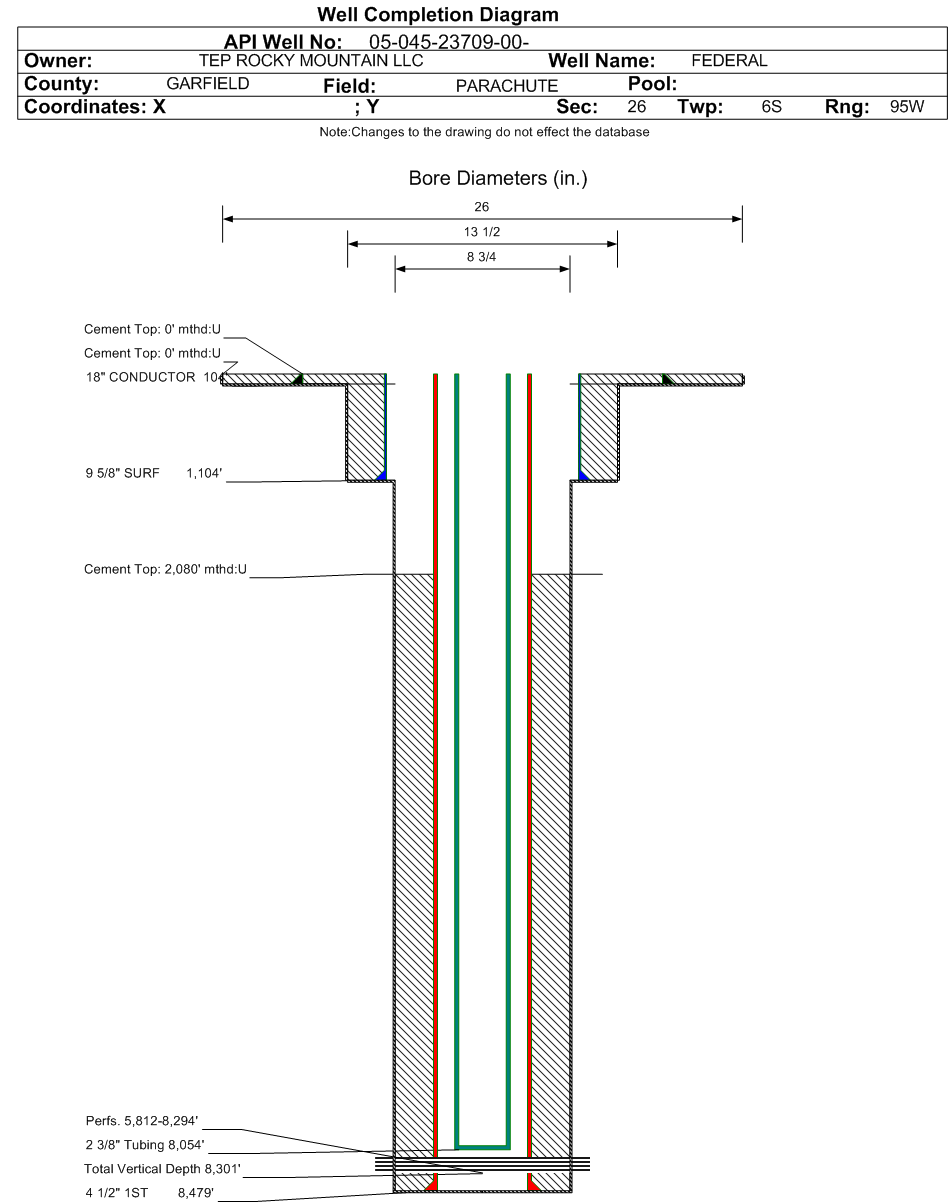

| Wellbore Completed | | Completion Date: | 4/10/2018 | | Spud Date: | 4/4/2018 | Spud Date Is: | ACTUAL | | Measured TD: | 8488 ft. | Measured PB depth: | 8445 ft. | | True Vertical TD: | 8301 ft. | True Vertical PB depth: | 8258 ft. | | Top PZ Location: | Sec:26 Twp: 6S 95W | Footage: 2228 FSL 1511 FEL | | Bottom Hole Location: | Sec:26 Twp: 6S 95W | Footage: 2192 FSL 1426 FEL | | Log Types: | CBL, PULSED NEUTRON, TRIPLE COMBO | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 104 ft., Weight: 47.44 , Citings Type: ACTUAL | | Cement: | Sacks: 174, Top: 0 ft., Bottom: 104 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1104 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 1104 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8479 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1825, Top: 2080 ft., Bottom: 8488 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 4276 ft. | | | | | WILLIAMS FORK | 4889 ft. | | | | | OHIO CREEK | 4889 ft. | | | | | MESAVERDE | 4929 ft. | | | | | CAMEO | 8045 ft. | | | | | ROLLINS | 8427 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 7/30/2018 Interval Top: 5812 ft. Interval Bottom: 8294 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 7/25/2018 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/11/2018 | Treatment End Date: | 6/16/2018 | | Treatment Summary: | 65487 bbls of slickwater; 1772900 100/Mesh; 2753 gals of biocide | | Total fluid used in treatment (bbls): | 65548 | Max pressure during treatment (psi): | 8476 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 12 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.76 | | Recycled water used in treatment (bbls): | 65487 | Total flowback volume recovered (bbls): | 23243 | | Fresh water used in treatment (bbls): | 61 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1772900 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8054 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/30/2018 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1118 | | CALC_MCF_GAS | 2575 | | CASING_PRESS | 1475 | | MCF_GAS | 2575 | | TUBING_PRESS | 995 |
| | Perforation Data: | | Interval Top: | 5812 ft. | # Of Holes: | 264 | | Interval Bottom: | 8294 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 127 |
| Total Gas Produced (MCF) | 55430 |
| GOR | 436456 |
| GOR Determination | MCFE |
| Average BOE per Day | 26.534 |
| Average MCFE per Day | 153.893 |
| Federal Financial Assurance | i | Y |
|
|
