COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-23533		Well Classification: GW Status: PR - 6/26/2018
Well Name/No:Federal GGU #24C-28-691
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC-041048
Facility Status:PRStatus Date6/26/2018
FacilityID:450783LocationID:335245
County:GARFIELD #045Location:SWSW 28 6S91W 6
Field:MAMM CREEK - #52500Elevation:6130 ft.
Basin:PICEANCE BASIN
Planned Location:976FSL  545 FWLLat/Long: 39.494455 / -107.566433Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.494455 / -107.566433Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 1/30/2018
End Date: 2/13/2018
Reported: 3/14/2018
Days to report: 29
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/26/2018             Measured TD: 7635 ft.    Vertical TD: 7346 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/26/2018
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:5/24/2019
Proposed Top PZ Location:Sec:28 Twp: 6S 91W Footage: 802 FSL  1997 FWL
Bottom Hole Location:Sec:28 Twp: 6S 91W Footage: 802 FSL  1997 FWL
Proposed Depth/Form:7653 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:Gibson Gulch II Unit Number:COC052447X
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-65 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-9 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 65 , Citings Type: PLANNED
Cement:Sacks: 194, Top: 0 ft., Bottom: 80 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 800 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 340, Top: 0 ft., Bottom: 800 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7653 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 859, Top: 3000 ft., Bottom: 7653 ft.
Wellbore Completed
Completion Date:12/2/2017
Spud Date:11/22/2017Spud Date Is:ACTUAL
Measured TD:7635 ft.Measured PB depth:7566 ft.
True Vertical TD:7346 ft.True Vertical PB depth:7277 ft.
Top PZ Location:Sec:28 Twp: 6S 91WFootage: 871 FSL  1973 FWL
Bottom Hole Location:Sec:28 Twp: 6S 91WFootage: 878 FSL  1997 FWL
Log Types:CBL, Temp, GR, (DIL in 045-07018).

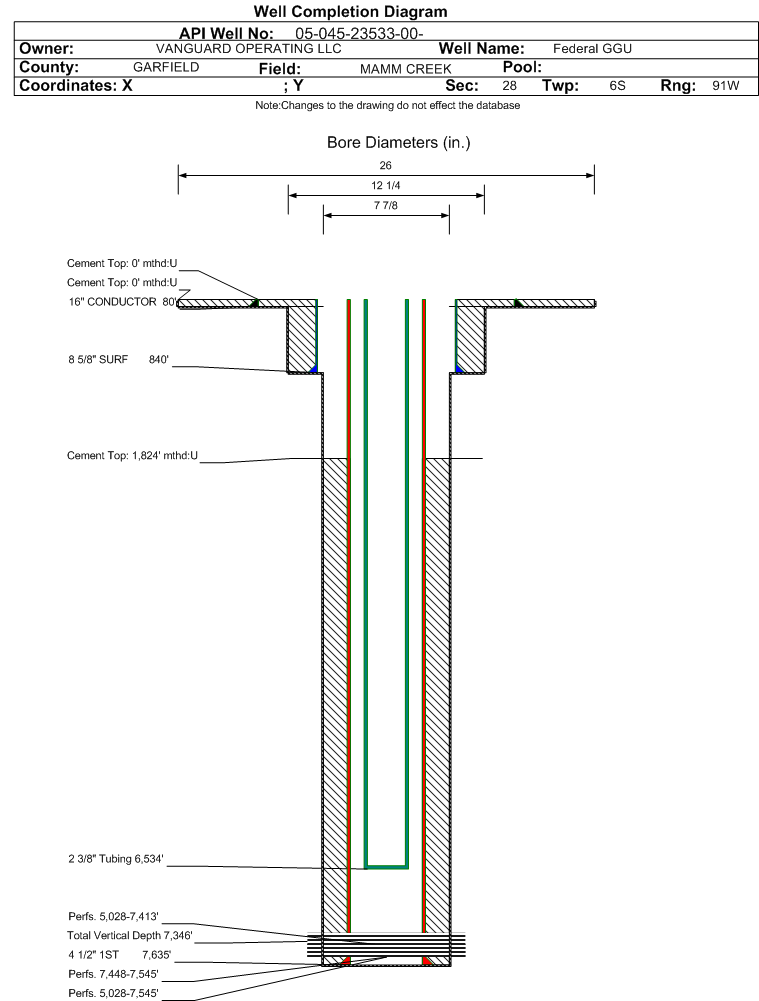

Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 65 , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 80 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 840 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 212, Top: 0 ft., Bottom: 840 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7635 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 767, Top: 1824 ft., Bottom: 7635 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION1572 ft.
WASATCH3019 ft.
MESAVERDE3378 ft.
WILLIAMS FORK3431 ft.
CAMEO COAL7152 ft.
ROLLINS7440 ft.

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 6/26/2018                 Interval Top: 7448 ft.    Interval Bottom: 7545 ft.

 Completed Information for Formation ROLLINS
1st Production Date:3/3/2018Choke Size:
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:1/20/2018Treatment End Date:2/13/2018
Treatment Summary:Rollins is commingled with Williams Fork
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:6534 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RLNS.
Perforation Data:
Interval Top:7448 ft.# Of Holes:27
Interval Bottom:7545 ft.Hole Size:0.37 in.

Formation WFCM                     Formation Classification:  OG                     Status:  PR - 6/26/2018                 Interval Top: 5028 ft.    Interval Bottom: 7413 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:3/3/2018Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:1/20/2018Treatment End Date:2/13/2018
Treatment Summary:Williams Fork is commingled with Rollins
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:6534 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:5028 ft.# Of Holes:333
Interval Bottom:7413 ft.Hole Size:0.37 in.

Formation WMRCM                   Formation Classification:  OG                   Status:  CM - 3/14/2018                 Interval Top: 5028 ft.    Interval Bottom: 7545 ft.

 Completed Information for Formation WILLIAMS FK-ROLLINS-CAMEO
1st Production Date:3/3/2018Choke Size:
Formation Name:WILLIAMS FK-ROLLINS-CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:1/20/2018Treatment End Date:2/13/2018
Treatment Summary:Williams Fork- Rollins frac'd with 74,993 bbls slurry, 104,846 bbls recycled water, 1,275,000 lbs 40/70 sand, and 226,125 lbs resin
Total fluid used in treatment (bbls):179839Max pressure during treatment (psi):4880
Total gas used in treatment (mcf):0Fluid density (lbs/gal):8.92
Type Of gas:Number Of staged intervals:8
Total acid used in treatment (bbls):0Min frac gradient (psi/ft):0.73
Recycled water used in treatment (bbls):104846Total flowback volume recovered (bbls):22958
Fresh water used in treatment (bbls):74993Disposition method For flowback:RECYCLE
Total proppant used (lbs):1501125Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:6534 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/14/2018Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1334
BBLS_OIL 22
BTU_GAS 1196
CALC_BBLS_H2O 1334
CALC_BBLS_OIL 22
CALC_GOR 51136
CALC_MCF_GAS 1125
CASING_PRESS 451
GRAVITY_OIL 52
MCF_GAS 1125
TUBING_PRESS 1490
Perforation Data:
Interval Top:5028 ft.# Of Holes:360
Interval Bottom:7545 ft.Hole Size:0.37 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)322
Total Gas Produced (MCF)32585
GOR101195
GOR DeterminationMCFE
Average BOE per Day16.278
Average MCFE per Day94.395

 Federal Financial Assurance  i Y

 Tribal Well  i No
