COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-23504		Well Classification: GW Status: PR - 12/11/2017
Well Name/No:GM #313-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC24603
Facility Status:PRStatus Date12/11/2017
FacilityID:450236LocationID:334816
County:GARFIELD #045Location:LOT 7 5 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5977 ft.
Basin:PICEANCE BASIN
Planned Location:753FSL  892 FELLat/Long: 39.461100 / -108.125506Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.461098 / -108.125506Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 11/18/2017
End Date: 11/21/2017
Reported: 12/12/2017
Days to report: 21
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/11/2017             Measured TD: 7288 ft.    Vertical TD: 6681 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/11/2017
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:5/4/2019
Proposed Top PZ Location:Sec:4 Twp: 7S 96W Footage: 2426 FSL  797 FWL
Bottom Hole Location:Sec:4 Twp: 7S 96W Footage: 2426 FSL  797 FWL
Proposed Depth/Form:7318 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 85 ft., Weight: 48 , Citings Type: PLANNED
Cement:Sacks: 142, Top: 0 ft., Bottom: 85 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: 244, Top: 0 ft., Bottom: 1000 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7318 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 596, Top: 3968 ft., Bottom: 7318 ft.

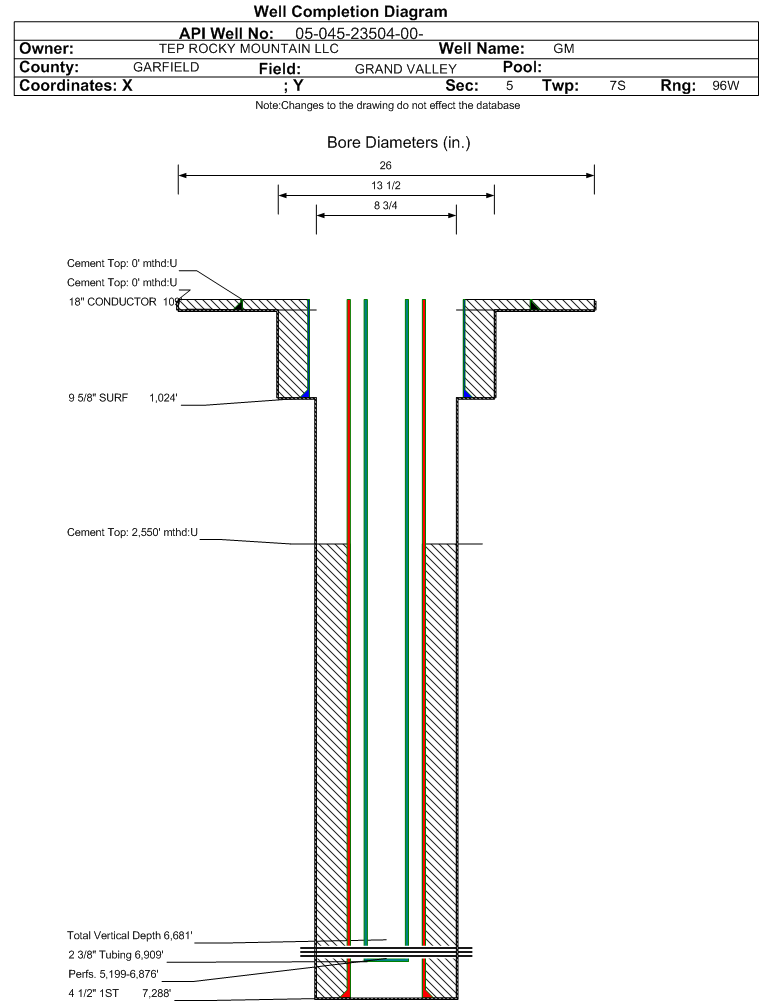

Wellbore Completed
Completion Date:8/31/2017
Spud Date:8/27/2017Spud Date Is:ACTUAL
Measured TD:7288 ft.Measured PB depth:7245 ft.
True Vertical TD:6681 ft.True Vertical PB depth:6638 ft.
Top PZ Location:Sec:4 Twp: 7S 96WFootage: 2399 FSL  767 FWL
Bottom Hole Location:Sec:4 Twp: 7S 96WFootage: 2405 FSL  811 FWL
Log Types:CBL/PULSED NEUTRON/(TRIPLE COMBO IN 045-22668)
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 109 ft., Weight: 47.44 , Citings Type: ACTUAL
Cement:Sacks: 182, Top: 0 ft., Bottom: 109 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1024 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 275, Top: 0 ft., Bottom: 1024 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7288 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 870, Top: 2550 ft., Bottom: 7288 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2338 ft.
MESAVERDE4137 ft.
OHIO CREEK4137 ft.
WILLIAMS FORK4377 ft.
CAMEO6817 ft.
ROLLINS7163 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/11/2017                Interval Top: 5199 ft.    Interval Bottom: 6876 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/11/2017Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:11/18/2017Treatment End Date:11/21/2017
Treatment Summary:54062 bbls of slickwater; No Proppant; 1160 gals of biocide
Total fluid used in treatment (bbls):54090Max pressure during treatment (psi):5206
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:8
Total acid used in treatment (bbls):Min frac gradient (psi/ft):0.62
Recycled water used in treatment (bbls):54062Total flowback volume recovered (bbls):20935
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:6909 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/11/2017Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1086
CALC_MCF_GAS 2762
CASING_PRESS 1530
MCF_GAS 2762
TUBING_PRESS 1480
Perforation Data:
Interval Top:5199 ft.# Of Holes:192
Interval Bottom:6876 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)100
Total Gas Produced (MCF)53713
GOR537130
GOR DeterminationMCFE
Average BOE per Day25.650
Average MCFE per Day148.767

 Federal Financial Assurance  i Y

 Tribal Well  i No
