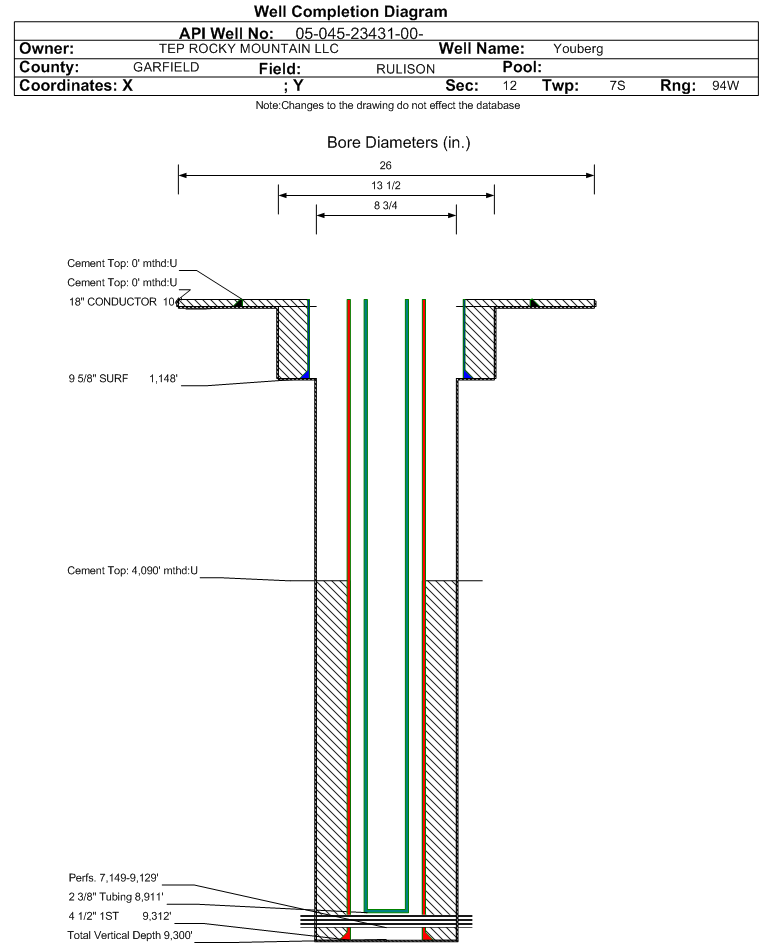

Wellbore #00 Wellbore Classification: GW Status: PR - 3/1/2023 Measured TD: 9312 ft. Vertical TD: 9300 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 11/28/2018 | | Proposed Top PZ Location: | Sec:12 Twp: 7S 94W | Footage: 1602 FNL 2050 FEL | | Bottom Hole Location: | Sec:12 Twp: 7S 94W | Footage: 1602 FNL 2050 FEL | | Proposed Depth/Form: | 9324 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-76 , Unit Acreage: 640, Drill Unit: All of Sec. 12 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 35, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1100 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 266, Top: 0 ft., Bottom: 1100 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9324 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 865, Top: 4642 ft., Bottom: 9324 ft. |
| | |
| Wellbore Completed | | Completion Date: | 7/3/2017 | | Spud Date: | 5/17/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 9312 ft. | Measured PB depth: | 9270 ft. | | True Vertical TD: | 9300 ft. | True Vertical PB depth: | 9258 ft. | | Top PZ Location: | Sec:12 Twp: 7S 94W | Footage: 1566 FNL 2050 FEL | | Bottom Hole Location: | Sec:12 Twp: 7S 94W | Footage: 1598 FNL 2079 FEL | | Log Types: | CBL/PULSED NEUTRON LOG(TRIPLE COMBO IN 045-23433) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 104 ft., Weight: 47.44 , Citings Type: ACTUAL | | Cement: | Sacks: 174, Top: 0 ft., Bottom: 104 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1148 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 1148 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9312 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1045, Top: 4090 ft., Bottom: 9312 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3219 ft. | | | | | MESAVERDE | 5493 ft. | | | | | OHIO CREEK | 5493 ft. | | | | | WILLIAMS FORK | 5662 ft. | | | | | CAMEO | 8433 ft. | | | | | ROLLINS | 9200 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 3/1/2023 Interval Top: 7149 ft. Interval Bottom: 9129 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/17/2017 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/3/2017 | Treatment End Date: | 8/7/2017 | | Treatment Summary: | 58880 bbls of slickwater; 1148760 100/Mesh; 2915 gals of biocide; 500 gals of acid | | Total fluid used in treatment (bbls): | 58961 | Max pressure during treatment (psi): | 7469 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 10 | | Total acid used in treatment (bbls): | 12 | Min frac gradient (psi/ft): | 0.72 | | Recycled water used in treatment (bbls): | 58880 | Total flowback volume recovered (bbls): | 14135 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1148760 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8911 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/18/2017 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1082 | | CALC_MCF_GAS | 1350 | | CASING_PRESS | 2650 | | MCF_GAS | 1350 | | TUBING_PRESS | 2250 |
| | Perforation Data: | | Interval Top: | 7149 ft. | # Of Holes: | 480 | | Interval Bottom: | 9129 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 114 |
| Total Gas Produced (MCF) | 39854 |
| GOR | 349596 |
| GOR Determination | MCFE |
| Average BOE per Day | 19.150 |
| Average MCFE per Day | 111.076 |
| Federal Financial Assurance | i | |
|
|
