Wellbore #00 Wellbore Classification: GW Status: PR - 12/31/2017 Measured TD: 10132 ft. Vertical TD: 9343 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/31/2017 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 9/8/2018 | | Proposed Top PZ Location: | Sec:12 Twp: 7S 94W | Footage: 1178 FNL 347 FWL | | Bottom Hole Location: | Sec:12 Twp: 7S 94W | Footage: 1178 FNL 347 FWL | | Proposed Depth/Form: | 9859 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-76 , Unit Acreage: 640, Drill Unit: All of Section 12 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 35, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1196 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 288, Top: 0 ft., Bottom: 1196 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10133 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 866, Top: 5449 ft., Bottom: 10133 ft. |
| | |

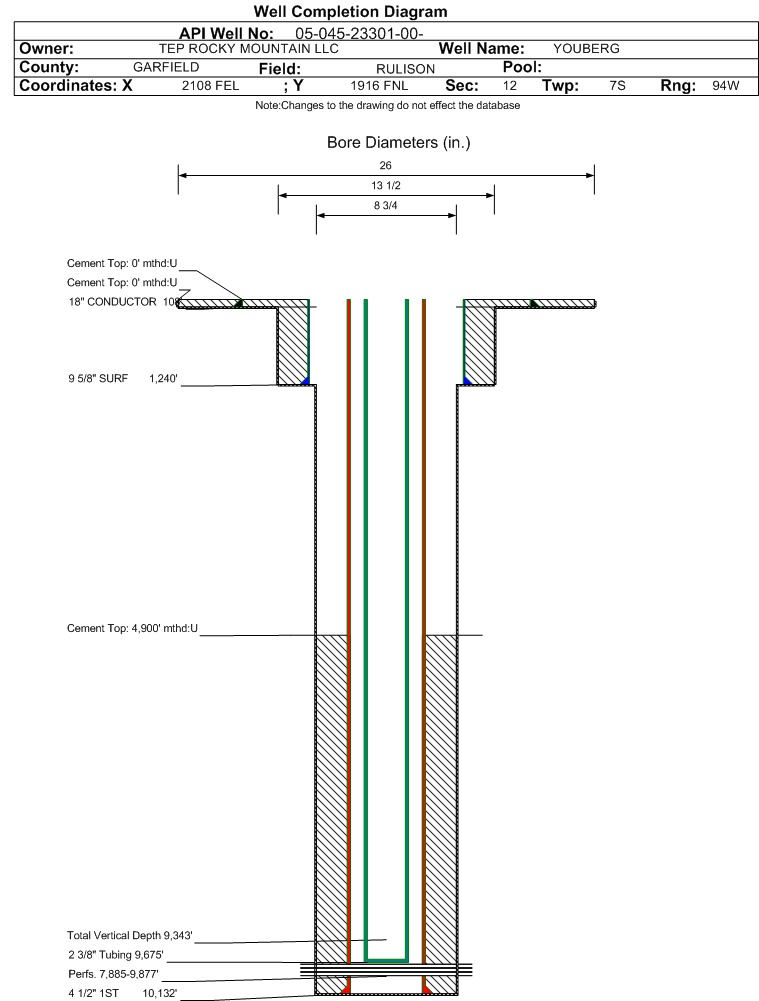

| Wellbore Completed | | Completion Date: | 8/17/2017 | | Spud Date: | 7/7/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 10132 ft. | Measured PB depth: | 10093 ft. | | True Vertical TD: | 9343 ft. | True Vertical PB depth: | 9304 ft. | | Top PZ Location: | Sec:12 Twp: 7S 94W | Footage: 1151 FNL 361 FWL | | Bottom Hole Location: | Sec:12 Twp: 7S 94W | Footage: 1170 FNL 328 FWL | | Log Types: | CBL/PULSED NEUTRON/(TRIPLE COMBO IN 045-23433.) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 108 ft., Weight: 47 , Citings Type: ACTUAL | | Cement: | Sacks: 180, Top: 0 ft., Bottom: 108 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1240 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1240 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10132 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1045, Top: 4900 ft., Bottom: 10132 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3817 ft. | | | | | MESAVERDE | 6270 ft. | | | | | OHIO CREEK | 6270 ft. | | | | | WILLIAMS FORK | 6418 ft. | | | | | CAMEO | 9162 ft. | | | | | ROLLINS | 9947 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 12/31/2017 Interval Top: 7885 ft. Interval Bottom: 9877 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/26/2017 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/4/2017 | Treatment End Date: | 12/7/2017 | | Treatment Summary: | 58760 bbls of slickwater; 1063400 100/Mesh; 851 gals of biocide | | Total fluid used in treatment (bbls): | 58780 | Max pressure during treatment (psi): | 7470 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 10 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.70 | | Recycled water used in treatment (bbls): | 58760 | Total flowback volume recovered (bbls): | 13962 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1063400 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9675 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/31/2017 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1090 | | CALC_MCF_GAS | 973 | | CASING_PRESS | 1925 | | MCF_GAS | 973 | | TUBING_PRESS | 1525 |
| | Perforation Data: | | Interval Top: | 7885 ft. | # Of Holes: | 480 | | Interval Bottom: | 9877 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 170 |
| Total Gas Produced (MCF) | 59275 |
| GOR | 348676 |
| GOR Determination | MCFE |
| Average BOE per Day | 28.469 |
| Average MCFE per Day | 165.133 |
| Federal Financial Assurance | i | Y |
|
|
