Wellbore #00 Wellbore Classification: GW Status: PR - 10/24/2016 Measured TD: 9435 ft. Vertical TD: 9417 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/24/2016 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/9/2018 | | Proposed Top PZ Location: | Sec:7 Twp: 7S 93W | Footage: 2236 FNL 1756 FWL | | Bottom Hole Location: | Sec:7 Twp: 7S 93W | Footage: 2257 FNL 1761 FWL | | Proposed Depth/Form: | 9408 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-76 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 30, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1124 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 296, Top: 0 ft., Bottom: 1124 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9408 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 787, Top: , Bottom: 9408 ft. |
| | |

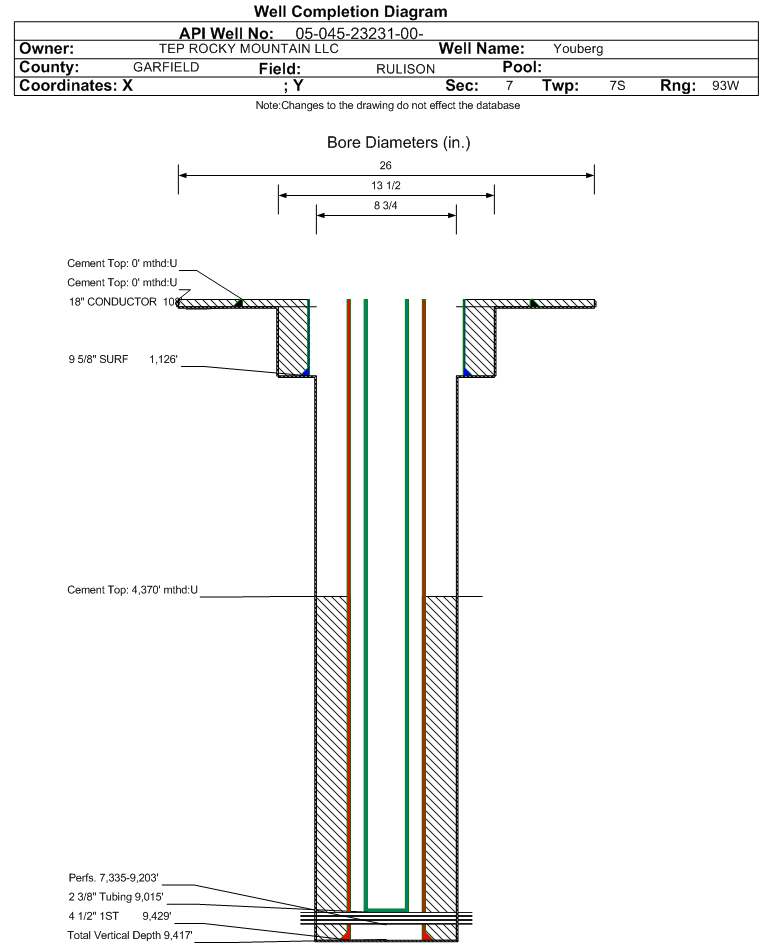

| Wellbore Completed | | Completion Date: | 8/21/2016 | | Spud Date: | 8/15/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 9435 ft. | Measured PB depth: | 9356 ft. | | True Vertical TD: | 9417 ft. | True Vertical PB depth: | 9338 ft. | | Top PZ Location: | Sec:7 Twp: 7S 93W | Footage: 2236 FNL 1756 FWL | | Bottom Hole Location: | Sec:7 Twp: 7S 93W | Footage: 2257 FNL 1761 FWL | | Log Types: | CBL/MUD/RPM/Triple Combo in API 045-23232 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 108 ft., Weight: 47.4 , Citings Type: ACTUAL | | Cement: | Sacks: 40, Top: 0 ft., Bottom: 108 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1126 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 305, Top: 0 ft., Bottom: 1126 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9429 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1110, Top: 4370 ft., Bottom: 9429 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3275 ft. | | | | | MESAVERDE | 5571 ft. | | | | | OHIO CREEK | 5571 ft. | | | | | WILLIAMS FORK | 5699 ft. | | | | | CAMEO | 8453 ft. | | | | | ROLLINS | 9303 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 10/24/2016 Interval Top: 7335 ft. Interval Bottom: 9203 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/9/2016 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/6/2016 | Treatment End Date: | 10/9/2016 | | Treatment Summary: | 49766 BBLS Slickwater; 946600 100/mesh; (summary)
| | Total fluid used in treatment (bbls): | 49766 | Max pressure during treatment (psi): | 6403 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 10 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.73 | | Recycled water used in treatment (bbls): | 49766 | Total flowback volume recovered (bbls): | 16487 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 946600 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9015 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/24/2016 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1097 | | CALC_MCF_GAS | 1680 | | CASING_PRESS | 2600 | | MCF_GAS | 1680 | | TUBING_PRESS | 1900 |
| | Perforation Data: | | Interval Top: | 7335 ft. | # Of Holes: | 240 | | Interval Bottom: | 9203 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 96 |
| Total Gas Produced (MCF) | 43331 |
| GOR | 451364 |
| GOR Determination | MCFE |
| Average BOE per Day | 20.737 |
| Average MCFE per Day | 120.252 |
| Federal Financial Assurance | i | |
|
|
