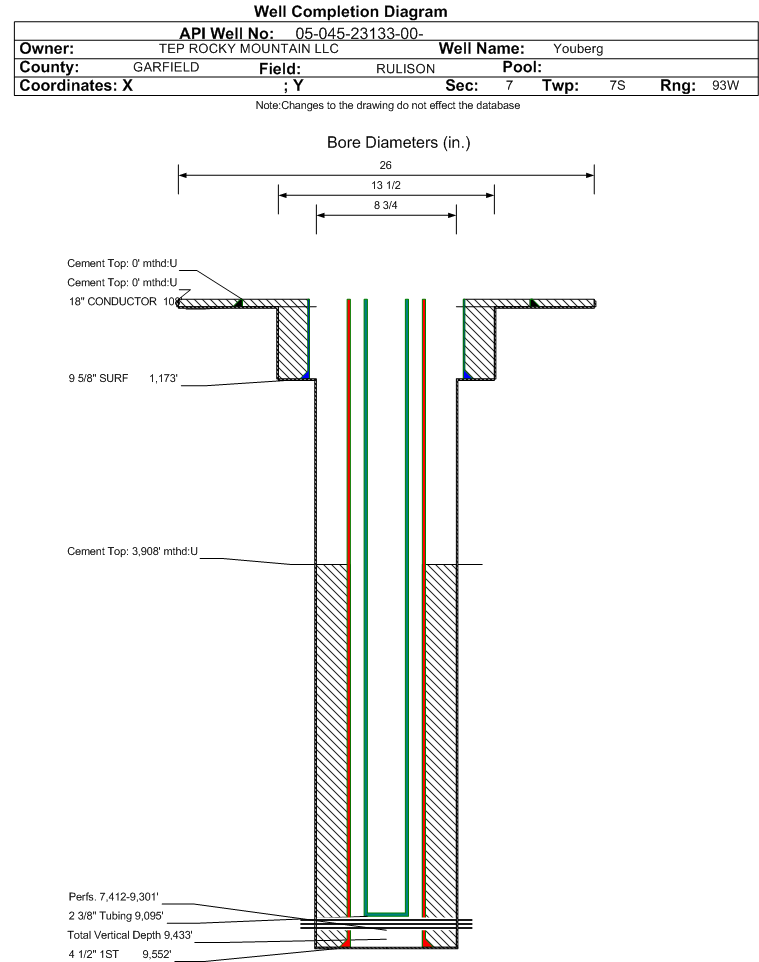

Wellbore #00 Wellbore Classification: GW Status: PR - 10/1/2016 Measured TD: 9565 ft. Vertical TD: 9433 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/1/2016 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 4/28/2018 | | Proposed Top PZ Location: | Sec:7 Twp: 7S 93W | Footage: 1812 FSL 2623 FWL | | Bottom Hole Location: | Sec:7 Twp: 7S 93W | Footage: 1805 FSL 2614 FWL | | Proposed Depth/Form: | 9506 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-76 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 30, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1124 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 296, Top: 0 ft., Bottom: 1124 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9506 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 782, Top: 5601 ft., Bottom: 9506 ft. |
| | |
| Wellbore Completed | | Completion Date: | 9/1/2016 | | Spud Date: | 8/27/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 9565 ft. | Measured PB depth: | 9478 ft. | | True Vertical TD: | 9433 ft. | True Vertical PB depth: | 9346 ft. | | Top PZ Location: | Sec:7 Twp: 7S 93W | Footage: 1812 FSL 2623 FWL | | Bottom Hole Location: | Sec:7 Twp: 7S 93W | Footage: 1805 FSL 2614 FWL | | Log Types: | CBL/MUD/RPM/Triple Combo in API 045-23232 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 108 ft., Weight: 47.4 , Citings Type: ACTUAL | | Cement: | Sacks: 40, Top: 0 ft., Bottom: 108 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1173 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 305, Top: 0 ft., Bottom: 1173 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9552 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1105, Top: 3908 ft., Bottom: 9552 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3346 ft. | | | | | MESAVERDE | 5672 ft. | | | | | OHIO CREEK | 5672 ft. | | | | | WILLIAMS FORK | 5811 ft. | | | | | CAMEO | 8594 ft. | | | | | ROLLINS | 9389 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 10/24/2016 Interval Top: 7412 ft. Interval Bottom: 9301 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/10/2016 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/6/2016 | Treatment End Date: | 10/9/2016 | | Treatment Summary: | 53443 BBLs Slickwater; 1000660 100/mesh; (summary)
| | Total fluid used in treatment (bbls): | 53443 | Max pressure during treatment (psi): | 6256 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 11 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.74 | | Recycled water used in treatment (bbls): | 53443 | Total flowback volume recovered (bbls): | 15058 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1000660 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9095 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/24/2016 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1097 | | CALC_MCF_GAS | 1616 | | CASING_PRESS | 2500 | | MCF_GAS | 1616 | | TUBING_PRESS | 1750 |
| | Perforation Data: | | Interval Top: | 7412 ft. | # Of Holes: | 264 | | Interval Bottom: | 9301 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 83 |
| Total Gas Produced (MCF) | 38726 |
| GOR | 466578 |
| GOR Determination | MCFE |
| Average BOE per Day | 18.465 |
| Average MCFE per Day | 107.091 |
| Federal Financial Assurance | i | |
|
|
