Wellbore #00 Wellbore Classification: GW Status: PR - 3/28/2016 Measured TD: 10000 ft. Vertical TD: 9974 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/28/2016 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 1/14/2017 | | Proposed Top PZ Location: | Sec:8 Twp: 7S 93W | Footage: 254 FNL 1929 FWL | | Bottom Hole Location: | Sec:8 Twp: 7S 93W | Footage: 254 FNL 1929 FWL | | Proposed Depth/Form: | 9971 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-76 , Unit Acreage: 480, Drill Unit: e/2, n2nw, s2sw | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1200 ft., Weight: 32 , Citings Type: PLANNED | | Cement: | Sacks: 315, Top: 0 ft., Bottom: 1200 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10292 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 964, Top: 6362 ft., Bottom: 10292 ft. |
| | |

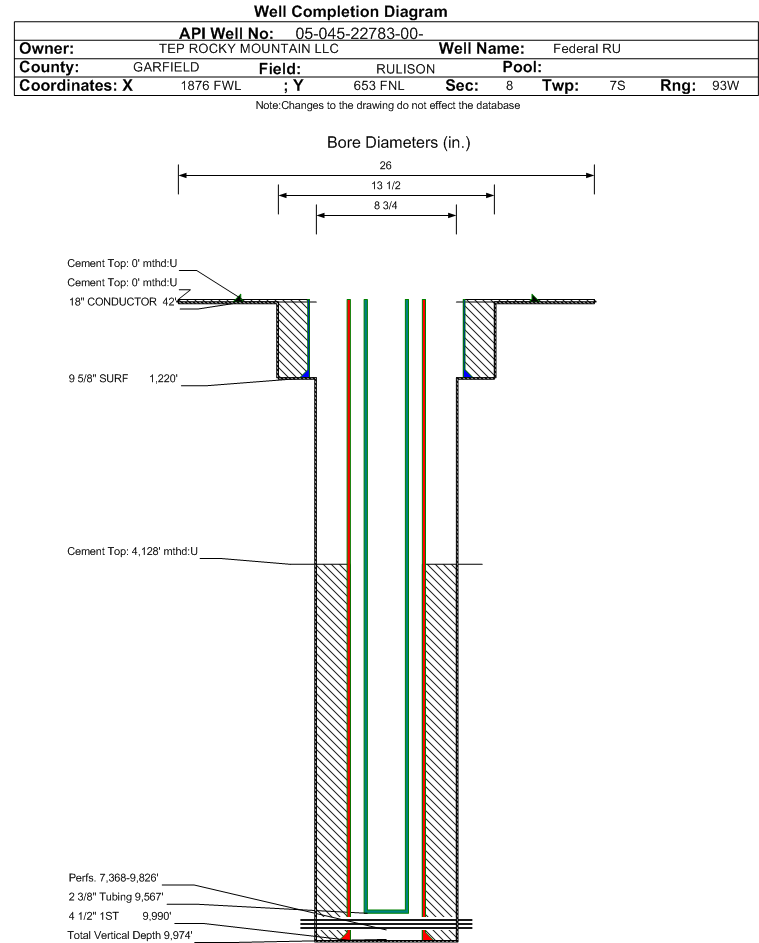

| Wellbore Completed | | Completion Date: | 11/26/2015 | | Spud Date: | 11/19/2015 | Spud Date Is: | ACTUAL | | Measured TD: | 10000 ft. | Measured PB depth: | 9964 ft. | | True Vertical TD: | 9974 ft. | True Vertical PB depth: | 9938 ft. | | Top PZ Location: | Sec:8 Twp: 7S 93W | Footage: 603 FNL 1462 FWL | | Bottom Hole Location: | Sec:8 Twp: 7S 93W | Footage: 645 FNL 1459 FWL | | Log Types: | CBL/MUD/Triple Combo | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 42 ft., Weight: 47.4 , Citings Type: ACTUAL | | Cement: | Sacks: 16, Top: 0 ft., Bottom: 42 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1220 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: 0 ft., Bottom: 1220 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9990 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1080, Top: 4128 ft., Bottom: 9990 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3718 ft. | | | | | MESAVERDE | 6190 ft. | | | | | WILLIAMS FORK | 6190 ft. | | | | | CAMEO | 9022 ft. | | | | | ROLLINS | 9847 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 3/28/2016 Interval Top: 7368 ft. Interval Bottom: 9826 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 3/15/2016 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/9/2016 | Treatment End Date: | 3/17/2016 | | Treatment Summary: | 2000 Gals 7.5% HCL; 103018 BBLs Slickwater; 994620 100/mesh; 982840 40/70 Sand; (summary)
| | Total fluid used in treatment (bbls): | 103066 | Max pressure during treatment (psi): | 5930 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 11 | | Total acid used in treatment (bbls): | 48 | Min frac gradient (psi/ft): | 0.62 | | Recycled water used in treatment (bbls): | 103018 | Total flowback volume recovered (bbls): | 13758 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1977460 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9567 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/28/2016 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1121 | | CALC_MCF_GAS | 1970 | | CASING_PRESS | 2500 | | MCF_GAS | 1970 | | TUBING_PRESS | 1700 |
| | Perforation Data: | | Interval Top: | 7368 ft. | # Of Holes: | 264 | | Interval Bottom: | 9826 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 100 |
| Total Gas Produced (MCF) | 74600 |
| GOR | 746000 |
| GOR Determination | MCFE |
| Average BOE per Day | 35.523 |
| Average MCFE per Day | 206.019 |
| Federal Financial Assurance | i | Y |
|
|
