Wellbore #00 Wellbore Classification: GW Status: PR - 3/1/2024 Measured TD: 10200 ft. Vertical TD: 10015 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 1/14/2017 | | Proposed Top PZ Location: | Sec:5 Twp: 7S 93W | Footage: 111 FSL 658 FWL | | Bottom Hole Location: | Sec:5 Twp: 7S 93W | Footage: 111 FSL 658 FWL | | Proposed Depth/Form: | 10201 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-76 , Unit Acreage: 403, Drill Unit: Sec 5 ALL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1200 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 315, Top: 0 ft., Bottom: 1200 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10128 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 927, Top: 6364 ft., Bottom: 10128 ft. |
| | |

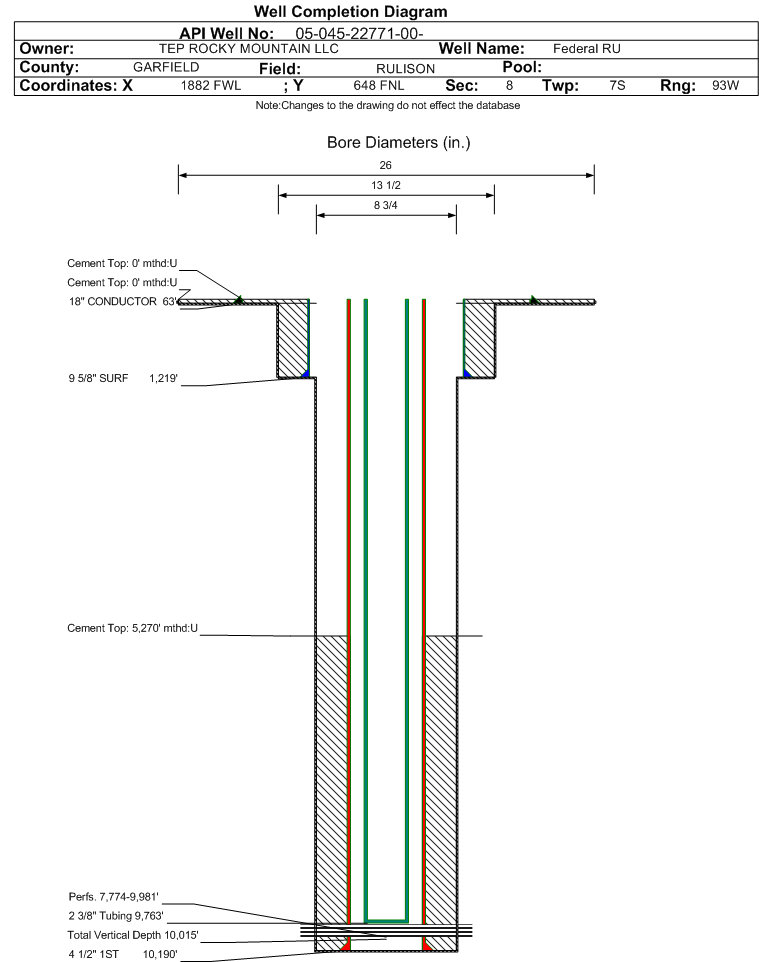

| Wellbore Completed | | Completion Date: | 1/27/2016 | | Spud Date: | 1/20/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 10200 ft. | Measured PB depth: | 10160 ft. | | True Vertical TD: | 10015 ft. | True Vertical PB depth: | 9975 ft. | | Top PZ Location: | Sec:5 Twp: 7S 93W | Footage: 188 FSL 679 FWL | | Bottom Hole Location: | Sec:5 Twp: 7S 93W | Footage: 132 FSL 647 FWL | | Log Types: | RPM/MUD/CBL/Triple Combo on 045-22773 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 63 ft., Weight: 47.4 , Citings Type: ACTUAL | | Cement: | Sacks: 24, Top: 0 ft., Bottom: 63 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1219 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: 0 ft., Bottom: 1219 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10190 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1025, Top: 5270 ft., Bottom: 10190 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3800 ft. | | | | | MESAVERDE | 6277 ft. | | | | | WILLIAMS FORK | 6277 ft. | | | | | CAMEO | 9214 ft. | | | | | ROLLINS | 10019 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 3/1/2024 Interval Top: 7774 ft. Interval Bottom: 9981 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/24/2016 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/21/2016 | Treatment End Date: | 5/3/2016 | | Treatment Summary: | 520 Gals 7.5% HCL; 88524 BBLS Slickwater; 1624425 100/Mesh; 85961 40/70 Sand; (summary)
| | Total fluid used in treatment (bbls): | 88536 | Max pressure during treatment (psi): | 6931 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 10 | | Total acid used in treatment (bbls): | 12 | Min frac gradient (psi/ft): | 0.63 | | Recycled water used in treatment (bbls): | 88524 | Total flowback volume recovered (bbls): | 25026 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1710386 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9763 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/12/2016 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1024 | | CALC_MCF_GAS | 2040 | | CASING_PRESS | 2300 | | MCF_GAS | 2040 | | TUBING_PRESS | 1575 |
| | Perforation Data: | | Interval Top: | 7774 ft. | # Of Holes: | 240 | | Interval Bottom: | 9981 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 46 |
| Total Gas Produced (MCF) | 35008 |
| GOR | 761043 |
| GOR Determination | MCFE |
| Average BOE per Day | 16.678 |
| Average MCFE per Day | 96.743 |
| Federal Financial Assurance | i | Y |
|
|
