Wellbore #00 Wellbore Classification: GW Status: PR - 11/28/2017 Measured TD: 7547 ft. Vertical TD: 6956 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/28/2017 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/11/2018 | | Proposed Top PZ Location: | Sec:10 Twp: 7S 96W | Footage: 1467 FNL 456 FEL | | Bottom Hole Location: | Sec:10 Twp: 7S 96W | Footage: 1467 FNL 456 FEL | | Proposed Depth/Form: | 7565 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 23, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 244, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7565 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 619, Top: 4083 ft., Bottom: 7565 ft. |
| | |

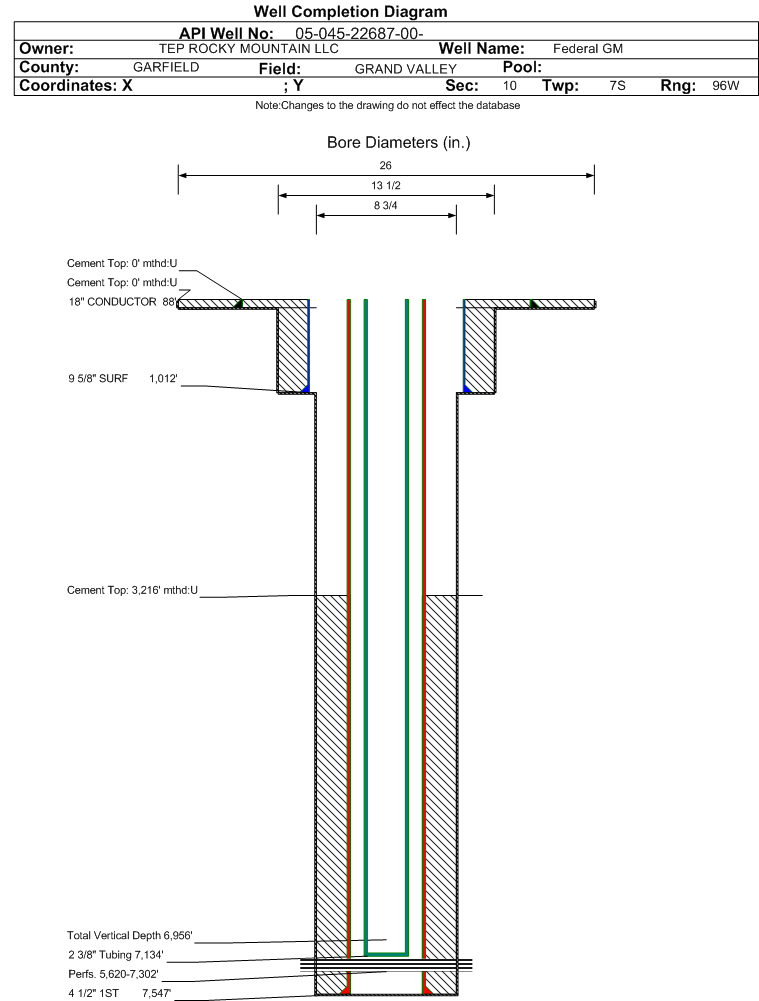

| Wellbore Completed | | Completion Date: | 9/8/2017 | | Spud Date: | 9/5/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 7547 ft. | Measured PB depth: | 7506 ft. | | True Vertical TD: | 6956 ft. | True Vertical PB depth: | 6915 ft. | | Top PZ Location: | Sec:10 Twp: 7S 96W | Footage: 1453 FNL 456 FEL | | Bottom Hole Location: | Sec:10 Twp: 7S 96W | Footage: 1487 FNL 487 FEL | | Log Types: | CBL/PULSED NEUTRON LOG/TRIPLE COMBO IN 045-22704 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 88 ft., Weight: 47.44 , Citings Type: ACTUAL | | Cement: | Sacks: 147, Top: 0 ft., Bottom: 88 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1012 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 275, Top: 0 ft., Bottom: 1012 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7547 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 905, Top: 3216 ft., Bottom: 7547 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2473 ft. | | | | | MESAVERDE | 4366 ft. | | | | | OHIO CREEK | 4366 ft. | | | | | WILLIAMS FORK | 4515 ft. | | | | | CAMEO | 7094 ft. | | | | | ROLLINS | 7379 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 11/28/2017 Interval Top: 5620 ft. Interval Bottom: 7302 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/28/2017 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 11/12/2017 | Treatment End Date: | 11/16/2017 | | Treatment Summary: | 58959 bbls of slickwater; 1129250 100/Mesh; 1275 gals of biocide | | Total fluid used in treatment (bbls): | 58989 | Max pressure during treatment (psi): | 6383 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 8 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.68 | | Recycled water used in treatment (bbls): | 58959 | Total flowback volume recovered (bbls): | 11060 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1129250 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7134 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/28/2017 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1068 | | CALC_MCF_GAS | 2677 | | CASING_PRESS | 1900 | | MCF_GAS | 2677 | | TUBING_PRESS | 1700 |
| | Perforation Data: | | Interval Top: | 5620 ft. | # Of Holes: | 192 | | Interval Bottom: | 7302 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 91 |
| Total Gas Produced (MCF) | 44367 |
| GOR | 487549 |
| GOR Determination | MCFE |
| Average BOE per Day | 21.207 |
| Average MCFE per Day | 123.019 |
| Federal Financial Assurance | i | Y |
|
|
