Wellbore #00 Wellbore Classification: GW Status: SI - 6/1/2024 Measured TD: 7224 ft. Vertical TD: 6726 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 6/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/11/2018 | | Proposed Top PZ Location: | Sec:9 Twp: 7S 96W | Footage: 2302 FNL 181 FEL | | Bottom Hole Location: | Sec:9 Twp: 7S 96W | Footage: 2302 FNL 181 FEL | | Proposed Depth/Form: | 7252 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 35, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1050 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 255, Top: 0 ft., Bottom: 1050 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7252 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 598, Top: 3893 ft., Bottom: 7252 ft. |
| | |

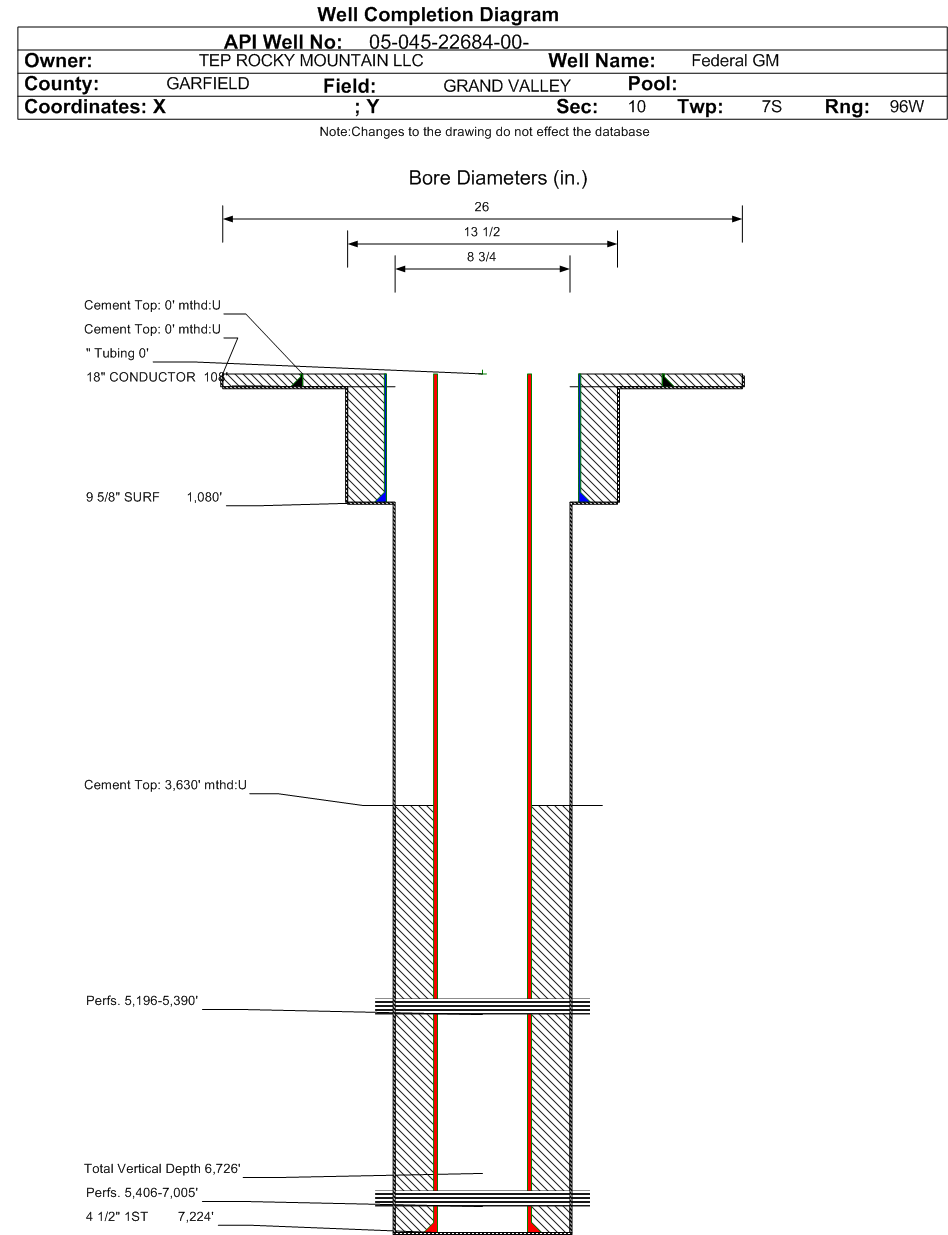

| Wellbore Completed | | Completion Date: | 5/25/2017 | | Spud Date: | 5/21/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 7224 ft. | Measured PB depth: | 7115 ft. | | True Vertical TD: | 6726 ft. | True Vertical PB depth: | 6617 ft. | | Top PZ Location: | Sec:9 Twp: 7S 96W | Footage: 2281 FNL 168 FEL | | Bottom Hole Location: | Sec:9 Twp: 7S 96W | Footage: 2314 FNL 181 FEL | | Log Types: | CBL/PULSED NEUTRON LOG/TRIPLE COMBO IN 045-22704 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 108 ft., Weight: 47.44 , Citings Type: ACTUAL | | Cement: | Sacks: 180, Top: 0 ft., Bottom: 108 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1080 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 285, Top: 0 ft., Bottom: 1080 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7224 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 765, Top: 3630 ft., Bottom: 7224 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2354 ft. | | | | | MESAVERDE | 4099 ft. | | | | | OHIO CREEK | 4099 ft. | | | | | WILLIAMS FORK | 4225 ft. | | | | | CAMEO | 6685 ft. | | | | | ROLLINS | 7080 ft. | | | |
Formation WFCM Formation Classification: GW Status: SI - 6/1/2024 Interval Top: 5406 ft. Interval Bottom: 7005 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/6/2018 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/10/2017 | Treatment End Date: | 7/15/2017 | | Treatment Summary: | 61563 bbls of slickwater; 1179760 100/Mesh; 3450 gals of biocide | | Total fluid used in treatment (bbls): | 61645 | Max pressure during treatment (psi): | 5490 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 9 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.65 | | Recycled water used in treatment (bbls): | 61563 | Total flowback volume recovered (bbls): | 9845 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1179760 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BTU_GAS | 1074 | | CALC_MCF_GAS | 2400 | | CASING_PRESS | 1900 | | MCF_GAS | 2400 | | TUBING_PRESS | 1700 |
| | Perforation Data: | | Interval Top: | 5406 ft. | # Of Holes: | 192 | | Interval Bottom: | 7005 ft. | Hole Size: | 0.35 in. |
|
Formation WMFK Formation Classification: OW Status: CM - 12/12/2019 Interval Top: 5196 ft. Interval Bottom: 5390 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 9/9/2018 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | Perforation Data: | | Interval Top: | 5196 ft. | # Of Holes: | 24 | | Interval Bottom: | 5390 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI ) | Y | Defined Inactive
05/31/2024 |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | Y |
|
|
