Wellbore #00 Wellbore Classification: GW Status: PR - 8/15/2017 Measured TD: 7790 ft. Vertical TD: 6734 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/15/2017 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/11/2018 | | Proposed Top PZ Location: | Sec:10 Twp: 7S 96W | Footage: 161 FSL 1438 FEL | | Bottom Hole Location: | Sec:10 Twp: 7S 96W | Footage: 161 FSL 1438 FEL | | Proposed Depth/Form: | 8201 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 35, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1198 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 289, Top: 0 ft., Bottom: 1198 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7793 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 613, Top: 4344 ft., Bottom: 7793 ft. |
| | |

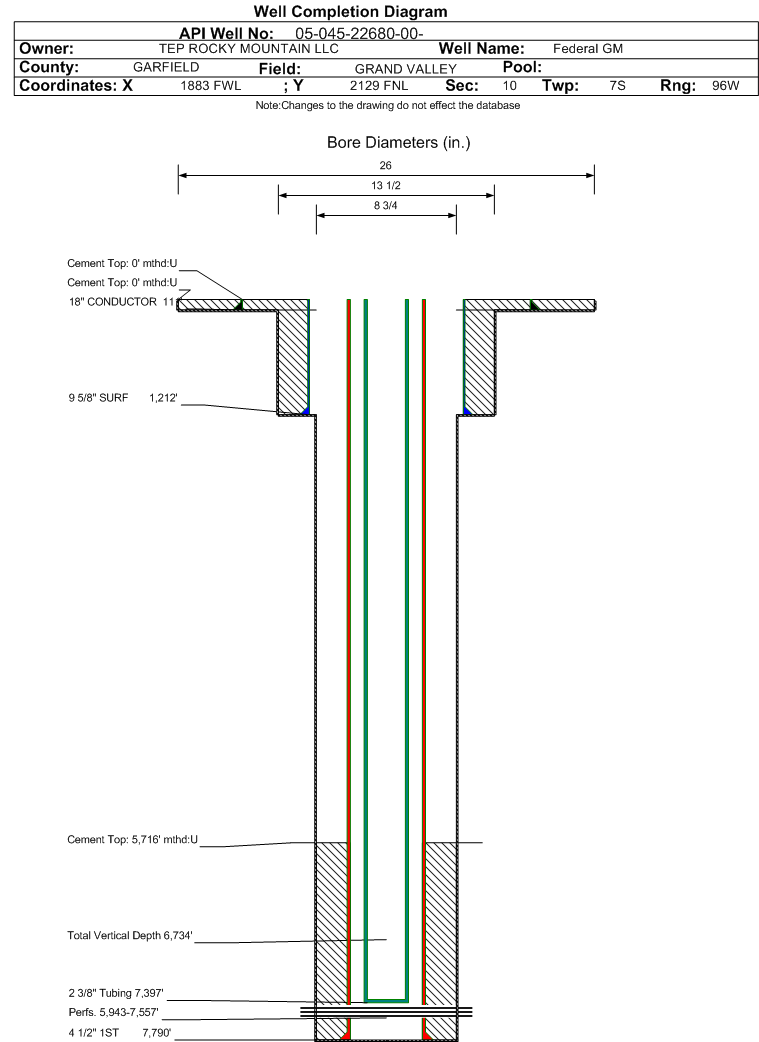

| Wellbore Completed | | Completion Date: | 6/28/2017 | | Spud Date: | 6/24/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 7790 ft. | Measured PB depth: | 7773 ft. | | True Vertical TD: | 6734 ft. | True Vertical PB depth: | 6734 ft. | | Top PZ Location: | Sec:10 Twp: 7S 96W | Footage: 220 FSL 1435 FEL | | Bottom Hole Location: | Sec:10 Twp: 7S 96W | Footage: 168 FSL 1459 FEL | | Log Types: | CBL/PULSED NEUTRON/TRIPLE COMBO IN 045-22704 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 111 ft., Weight: 47.44 , Citings Type: ACTUAL | | Cement: | Sacks: 185, Top: 0 ft., Bottom: 111 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1212 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1212 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7790 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 790, Top: 5716 ft., Bottom: 7790 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2428 ft. | | | | | MESAVERDE | 4591 ft. | | | | | OHIO CREEK | 4591 ft. | | | | | WILLIAMS FORK | 4704 ft. | | | | | CAMEO | 7250 ft. | | | | | ROLLINS | 7631 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 8/15/2017 Interval Top: 5943 ft. Interval Bottom: 7557 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/15/2017 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/25/2017 | Treatment End Date: | 7/28/2017 | | Treatment Summary: | 90854 bbls of slickwater; 1793119 100/Mesh; 4995 gals of biocide | | Total fluid used in treatment (bbls): | 90973 | Max pressure during treatment (psi): | 6549 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 8 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.62 | | Recycled water used in treatment (bbls): | 90854 | Total flowback volume recovered (bbls): | 16255 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1793113 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7397 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/15/2017 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1085 | | CALC_MCF_GAS | 1300 | | CASING_PRESS | 1900 | | MCF_GAS | 1300 | | TUBING_PRESS | 1500 |
| | Perforation Data: | | Interval Top: | 5943 ft. | # Of Holes: | 192 | | Interval Bottom: | 7557 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 218 |
| Total Gas Produced (MCF) | 107261 |
| GOR | 492022 |
| GOR Determination | MCFE |
| Average BOE per Day | 51.272 |
| Average MCFE per Day | 297.381 |
| Federal Financial Assurance | i | Y |
|
|
