Wellbore #00 Wellbore Classification: GW Status: PR - 11/16/2017 Measured TD: 7373 ft. Vertical TD: 6905 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/16/2017 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/11/2018 | | Proposed Top PZ Location: | Sec:10 Twp: 7S 96W | Footage: 193 FNL 2225 FWL | | Bottom Hole Location: | Sec:10 Twp: 7S 96W | Footage: 193 FNL 2225 FWL | | Proposed Depth/Form: | 7380 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 35, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1172 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 283, Top: 0 ft., Bottom: 1172 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7380 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 605, Top: 3980 ft., Bottom: 7380 ft. |
| | |

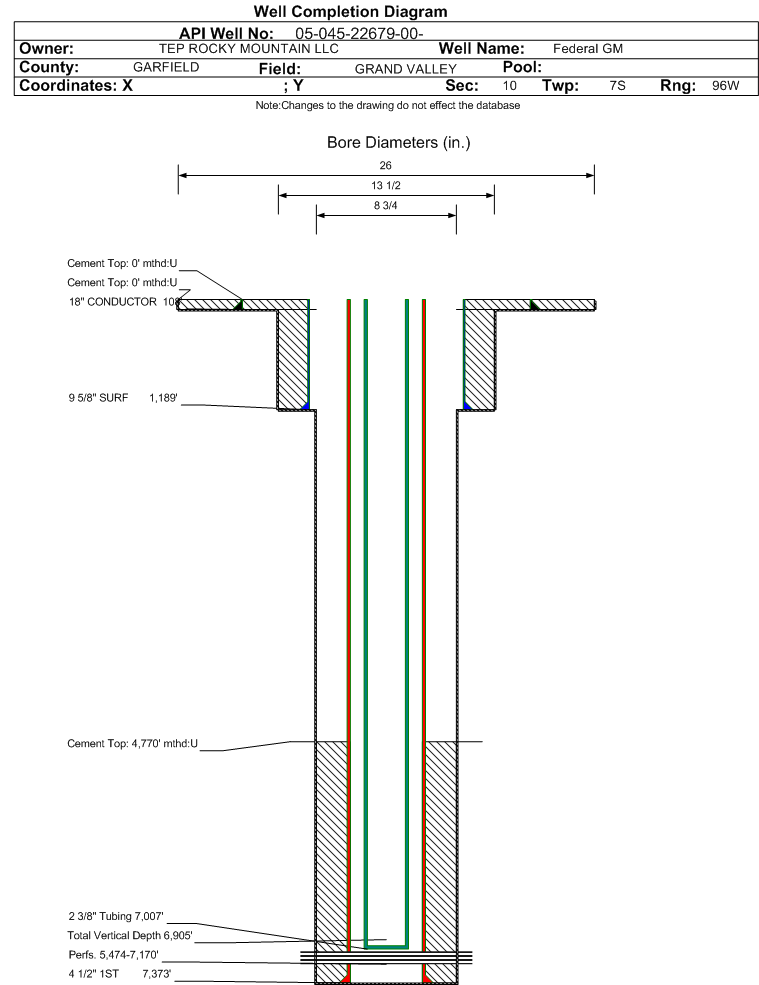

| Wellbore Completed | | Completion Date: | 8/9/2017 | | Spud Date: | 8/5/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 7373 ft. | Measured PB depth: | 7331 ft. | | True Vertical TD: | 6905 ft. | True Vertical PB depth: | 6863 ft. | | Top PZ Location: | Sec:10 Twp: 7S 96W | Footage: 156 FNL 2260 FWL | | Bottom Hole Location: | Sec:10 Twp: 7S 96W | Footage: 194 FNL 2218 FWL | | Log Types: | CBL/PULSED NEUTRON LOG/TRIPLE COMBO IN 045-22704 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 108 ft., Weight: 47.44 , Citings Type: ACTUAL | | Cement: | Sacks: 180, Top: 0 ft., Bottom: 108 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1189 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 315, Top: 0 ft., Bottom: 1189 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7373 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 830, Top: 4770 ft., Bottom: 7373 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2247 ft. | | | | | MESAVERDE | 4230 ft. | | | | | OHIO CREEK | 4230 ft. | | | | | WILLIAMS FORK | 4309 ft. | | | | | CAMEO | 6918 ft. | | | | | ROLLINS | 7237 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 11/16/2017 Interval Top: 5474 ft. Interval Bottom: 7170 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/16/2017 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/29/2017 | Treatment End Date: | 11/3/2017 | | Treatment Summary: | 55608 bbls of slickwater; No Proppant; 1223 gals of biocide | | Total fluid used in treatment (bbls): | 55637 | Max pressure during treatment (psi): | 4655 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 9 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.62 | | Recycled water used in treatment (bbls): | 55608 | Total flowback volume recovered (bbls): | 12997 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7007 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/16/2017 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1084 | | CALC_MCF_GAS | 1949 | | CASING_PRESS | 1800 | | MCF_GAS | 1949 | | TUBING_PRESS | 1400 |
| | Perforation Data: | | Interval Top: | 5474 ft. | # Of Holes: | 216 | | Interval Bottom: | 7170 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 55 |
| Total Gas Produced (MCF) | 28690 |
| GOR | 521636 |
| GOR Determination | MCFE |
| Average BOE per Day | 13.710 |
| Average MCFE per Day | 79.479 |
| Federal Financial Assurance | i | Y |
|
|
