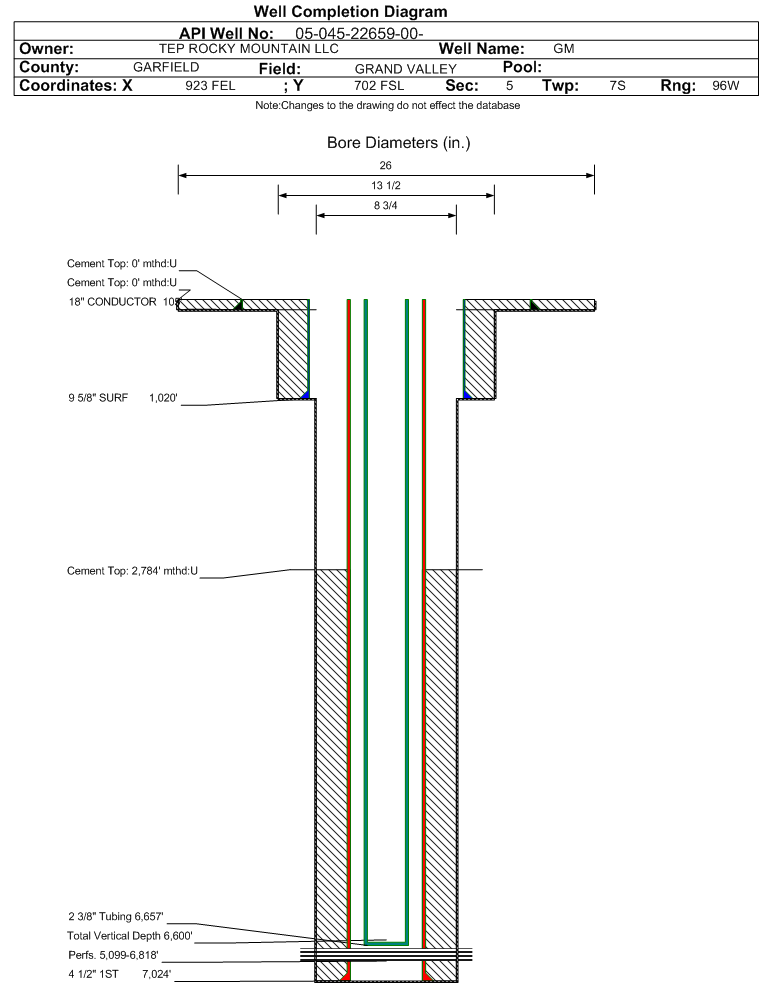

Wellbore #00 Wellbore Classification: GW Status: PR - 12/12/2017 Measured TD: 7024 ft. Vertical TD: 6600 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/12/2017 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 1/12/2019 | | Proposed Top PZ Location: | Sec:5 Twp: 7S 96W | Footage: 1364 FSL 2343 FEL | | Bottom Hole Location: | Sec:5 Twp: 7S 96W | Footage: 1364 FSL 2343 FEL | | Proposed Depth/Form: | 6993 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 85 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 142, Top: 0 ft., Bottom: 85 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 244, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7045 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 590, Top: 3731 ft., Bottom: 7045 ft. |
| | |
| Wellbore Completed | | Completion Date: | 10/3/2017 | | Spud Date: | 9/30/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 7024 ft. | Measured PB depth: | 6577 ft. | | True Vertical TD: | 6600 ft. | True Vertical PB depth: | 6153 ft. | | Top PZ Location: | Sec:5 Twp: 7S 96W | Footage: 1392 FSL 2334 FEL | | Bottom Hole Location: | Sec:5 Twp: 7S 96W | Footage: 1357 FSL 2324 FEL | | Log Types: | CBL/PULSED NEUTRON LOG/TRIPLE COMBO IN 045-22668 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 105 ft., Weight: 47.44 , Citings Type: ACTUAL | | Cement: | Sacks: 175, Top: 0 ft., Bottom: 105 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1020 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 275, Top: 0 ft., Bottom: 1020 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7024 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 865, Top: 2784 ft., Bottom: 7024 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2521 ft. | | | | | MESAVERDE | 3952 ft. | | | | | OHIO CREEK | 3952 ft. | | | | | WILLIAMS FORK | 4155 ft. | | | | | CAMEO | 6552 ft. | | | | | ROLLINS | 6900 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 12/12/2017 Interval Top: 5099 ft. Interval Bottom: 6818 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/14/2017 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 11/27/2017 | Treatment End Date: | 11/29/2017 | | Treatment Summary: | 42769 bbls of slickwater; 774000 100/Mesh; 1058 gals of biocide | | Total fluid used in treatment (bbls): | 42794 | Max pressure during treatment (psi): | 6381 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 9 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.73 | | Recycled water used in treatment (bbls): | 42769 | Total flowback volume recovered (bbls): | 10785 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 774000 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6657 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/12/2017 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1075 | | CALC_MCF_GAS | 2617 | | CASING_PRESS | 1530 | | MCF_GAS | 2617 | | TUBING_PRESS | 1450 |
| | Perforation Data: | | Interval Top: | 5099 ft. | # Of Holes: | 216 | | Interval Bottom: | 6818 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 74 |
| Total Gas Produced (MCF) | 40471 |
| GOR | 546905 |
| GOR Determination | MCFE |
| Average BOE per Day | 19.319 |
| Average MCFE per Day | 112.051 |
| Federal Financial Assurance | i | Y |
|
|
