Wellbore #00 Wellbore Classification: LO Status: PA - 11/25/2016 Measured TD: 9296 ft. Vertical TD: 9191 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: LO PA - 11/25/2016 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 11/13/2016 | | Proposed Top PZ Location: | Sec:6 Twp: 7S 93W | Footage: 1894 FNL 357 FWL | | Bottom Hole Location: | Sec:6 Twp: 7S 93W | Footage: 1894 FNL 357 FWL | | Proposed Depth/Form: | 9249 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-76 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1124 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 296, Top: 0 ft., Bottom: 1124 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9290 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 802, Top: 5282 ft., Bottom: 9290 ft. |
| | |

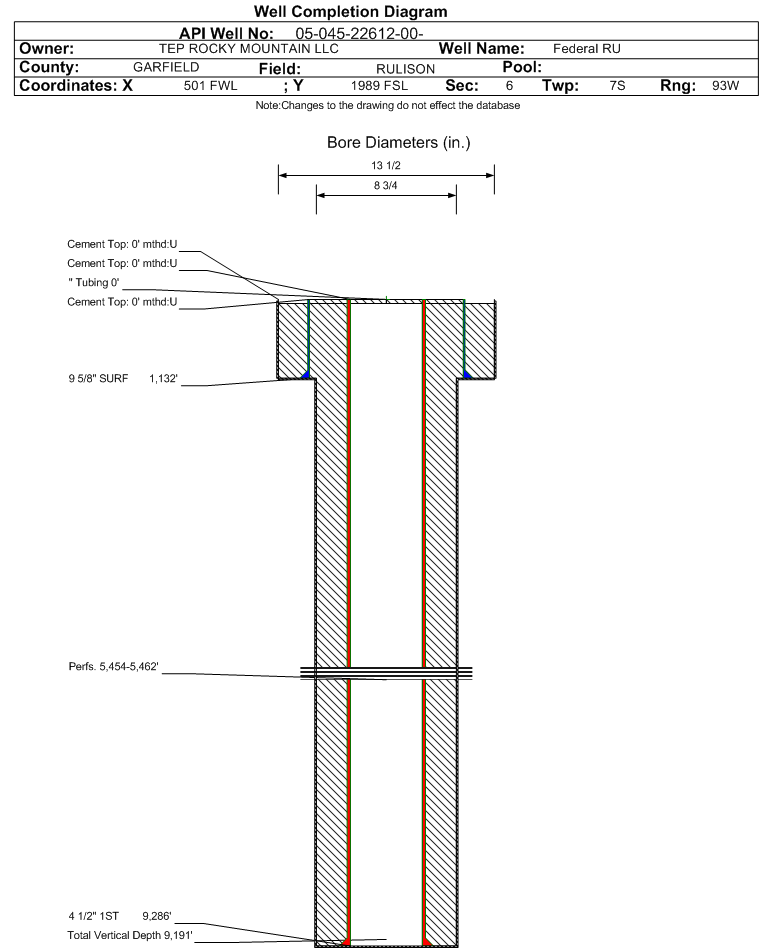

| Wellbore Completed | | Completion Date: | 5/15/2016 | | Spud Date: | 5/9/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 9296 ft. | Measured PB depth: | 0 ft. | | True Vertical TD: | 9191 ft. | True Vertical PB depth: | 0 ft. | | Top PZ Location: | Sec:6 Twp: 7S 93W | Footage: 1894 FNL 357 FWL | | Bottom Hole Location: | Sec:6 Twp: 7S 93W | Footage: 1914 FNL 318 FWL | | Log Types: | No logs | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 60 ft., Weight: 47.4 , Citings Type: ACTUAL | | Cement: | Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1132 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 315, Top: 0 ft., Bottom: 1132 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9286 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 946, Top: , Bottom: , Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2882 ft. | | | | | MESAVERDE | 5396 ft. | | | | | WILLIAMS FORK | 5396 ft. | | | | | CAMEO | 8171 ft. | | | | | ROLLINS | 8964 ft. | | | |
Formation WFCM Formation Classification: LO Status: AB - 11/25/2016 Interval Top: 5454 ft. Interval Bottom: 5462 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFCM. |
| | Perforation Data: | | Interval Top: | 5454 ft. | # Of Holes: | 1 | | Interval Bottom: | 5462 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 06/16/2016 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
