Wellbore #00 Wellbore Classification: GW Status: PR - 9/21/2016 Measured TD: 9197 ft. Vertical TD: 9179 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/21/2016 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 11/13/2016 | | Proposed Top PZ Location: | Sec:6 Twp: 7S 93W | Footage: 2215 FSL 542 FWL | | Bottom Hole Location: | Sec:6 Twp: 7S 93W | Footage: 2215 FSL 542 FWL | | Proposed Depth/Form: | 9155 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-76 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1124 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 296, Top: 0 ft., Bottom: 1124 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9198 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 801, Top: 5198 ft., Bottom: 9198 ft. |
| | |

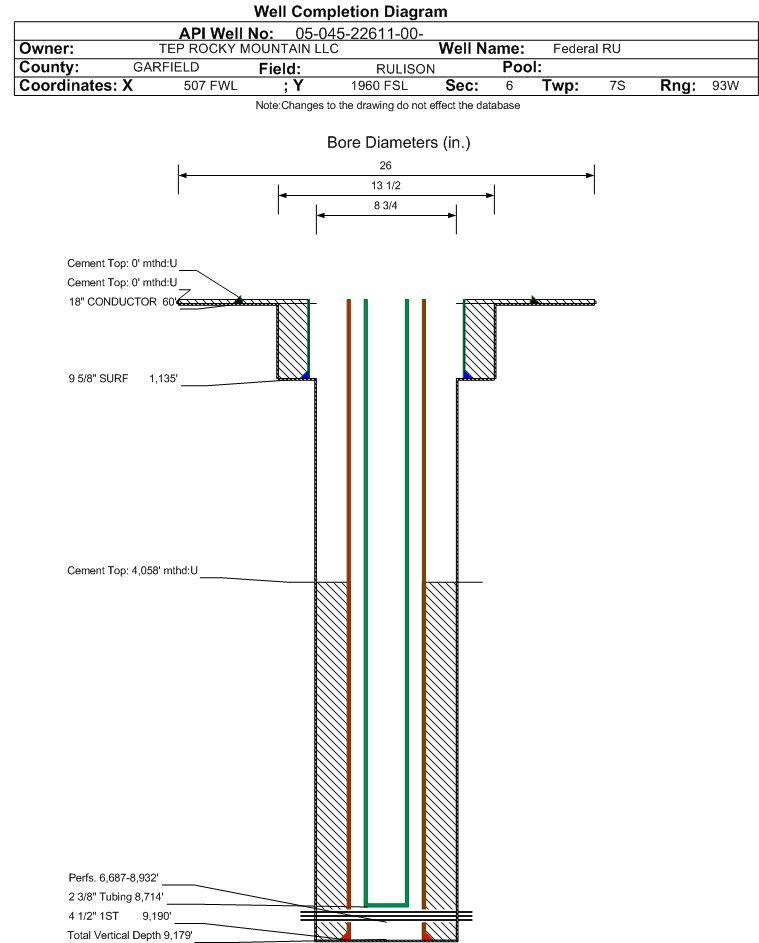

| Wellbore Completed | | Completion Date: | 4/12/2016 | | Spud Date: | 4/7/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 9197 ft. | Measured PB depth: | 9106 ft. | | True Vertical TD: | 9179 ft. | True Vertical PB depth: | 9088 ft. | | Top PZ Location: | Sec:6 Twp: 7S 93W | Footage: 2235 FSL 556 FWL | | Bottom Hole Location: | Sec:6 Twp: 7S 93W | Footage: 2228 FSL 510 FWL | | Log Types: | MUD/RPM/CBL/Triple combo on 045-22602 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 47.4 , Citings Type: ACTUAL | | Cement: | Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1135 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 305, Top: 0 ft., Bottom: 1135 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9190 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1075, Top: 4058 ft., Bottom: 9190 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2887 ft. | | | | | OHIO CREEK | 5264 ft. | | | | | MESAVERDE | 5398 ft. | | | | | WILLIAMS FORK | 5398 ft. | | | | | CAMEO | 8184 ft. | | | | | ROLLINS | 9019 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 7/25/2016 Interval Top: 6687 ft. Interval Bottom: 8932 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 7/8/2016 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/8/2016 | Treatment End Date: | 7/16/2016 | | Treatment Summary: | 106617 BBLs Slickwater; 2136400 mesh/100; (summary)
| | Total fluid used in treatment (bbls): | 106617 | Max pressure during treatment (psi): | 5610 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 10 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.68 | | Recycled water used in treatment (bbls): | 106617 | Total flowback volume recovered (bbls): | 21931 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 2136400 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8714 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/25/2016 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1028 | | CALC_MCF_GAS | 718 | | CASING_PRESS | 2575 | | MCF_GAS | 718 | | TUBING_PRESS | 1800 |
| | Perforation Data: | | Interval Top: | 6687 ft. | # Of Holes: | 240 | | Interval Bottom: | 8932 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 129 |
| Total Gas Produced (MCF) | 84515 |
| GOR | 655155 |
| GOR Determination | MCFE |
| Average BOE per Day | 40.292 |
| Average MCFE per Day | 233.669 |
| Federal Financial Assurance | i | Y |
|
|
