Wellbore #00 Wellbore Classification: GW Status: PR - 8/30/2016 Measured TD: 9970 ft. Vertical TD: 9313 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/30/2016 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 11/13/2016 | | Proposed Top PZ Location: | Sec:6 Twp: 7S 93W | Footage: 223 FNL 1546 FWL | | Bottom Hole Location: | Sec:6 Twp: 7S 93W | Footage: 223 FNL 1546 FWL | | Proposed Depth/Form: | 10199 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-76 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1124 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 296, Top: 0 ft., Bottom: 1124 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9983 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 816, Top: 5904 ft., Bottom: 9983 ft. |
| | |

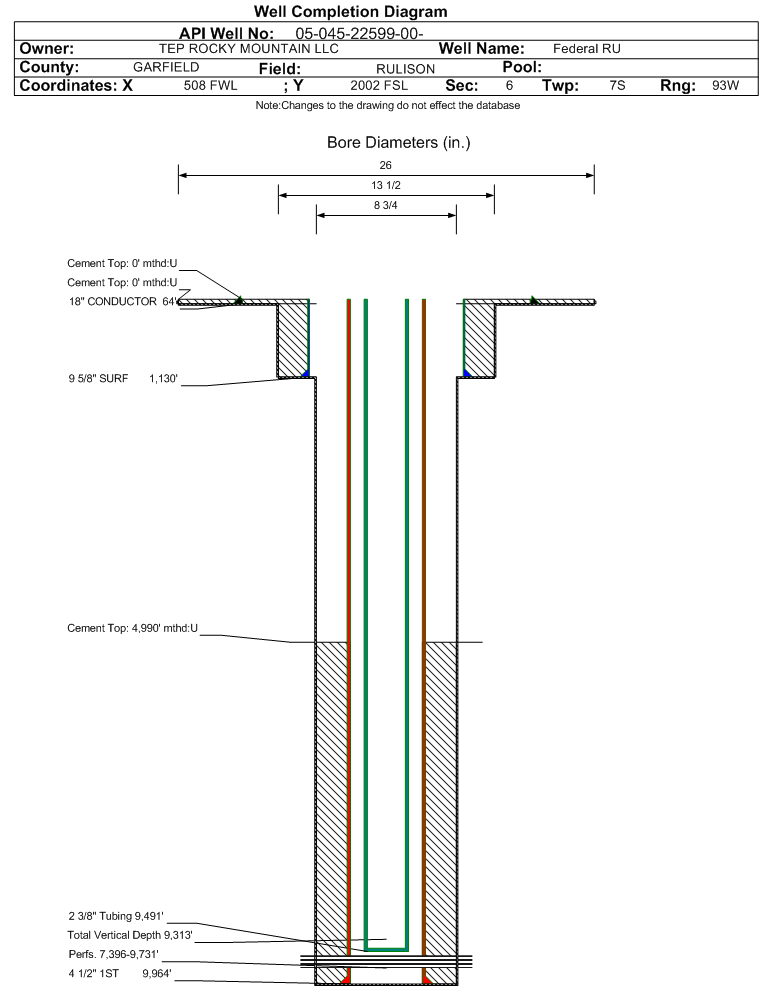

| Wellbore Completed | | Completion Date: | 4/27/2016 | | Spud Date: | 4/20/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 9970 ft. | Measured PB depth: | 9840 ft. | | True Vertical TD: | 9313 ft. | True Vertical PB depth: | 9183 ft. | | Top PZ Location: | Sec:6 Twp: 7S 93W | Footage: 234 FNL 1555 FWL | | Bottom Hole Location: | Sec:6 Twp: 7S 93W | Footage: 246 FNL 1544 FWL | | Log Types: | CBL/MUD/RPM/Triple combo on 045-22602 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 64 ft., Weight: 47.4 , Citings Type: ACTUAL | | Cement: | Sacks: 24, Top: 0 ft., Bottom: 64 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1130 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 315, Top: 0 ft., Bottom: 1130 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9964 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1105, Top: 4990 ft., Bottom: 9964 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3226 ft. | | | | | OHIO CREEK | 5943 ft. | | | | | MESAVERDE | 6051 ft. | | | | | WILLIAMS FORK | 6051 ft. | | | | | CAMEO | 8944 ft. | | | | | ROLLINS | 9803 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 8/30/2016 Interval Top: 7396 ft. Interval Bottom: 9731 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/15/2016 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/12/2016 | Treatment End Date: | 8/22/2016 | | Treatment Summary: | 102257 BBLs Slickwater; 2040278 mesh/100; (summary)
| | Total fluid used in treatment (bbls): | 102257 | Max pressure during treatment (psi): | 6543 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 10 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.60 | | Recycled water used in treatment (bbls): | 102257 | Total flowback volume recovered (bbls): | 21595 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 2040278 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9491 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/30/2016 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1106 | | CALC_MCF_GAS | 1624 | | CASING_PRESS | 2725 | | MCF_GAS | 1624 | | TUBING_PRESS | 1650 |
| | Perforation Data: | | Interval Top: | 7396 ft. | # Of Holes: | 240 | | Interval Bottom: | 9731 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 109 |
| Total Gas Produced (MCF) | 72944 |
| GOR | 669211 |
| GOR Determination | MCFE |
| Average BOE per Day | 34.756 |
| Average MCFE per Day | 201.596 |
| Federal Financial Assurance | i | Y |
|
|
