Wellbore #00 Wellbore Classification: GW Status: PR - 10/1/2016 Measured TD: 7921 ft. Vertical TD: 6609 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/1/2016 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 10/28/2016 | | Proposed Top PZ Location: | Sec:9 Twp: 7S 96W | Footage: 1960 FNL 1535 FEL | | Bottom Hole Location: | Sec:9 Twp: 7S 96W | Footage: 1960 FNL 1535 FEL | | Proposed Depth/Form: | 7917 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: Sec 9 N/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2543 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 648, Top: 0 ft., Bottom: 2543 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7917 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 763, Top: 4542 ft., Bottom: 7917 ft. |
| | |

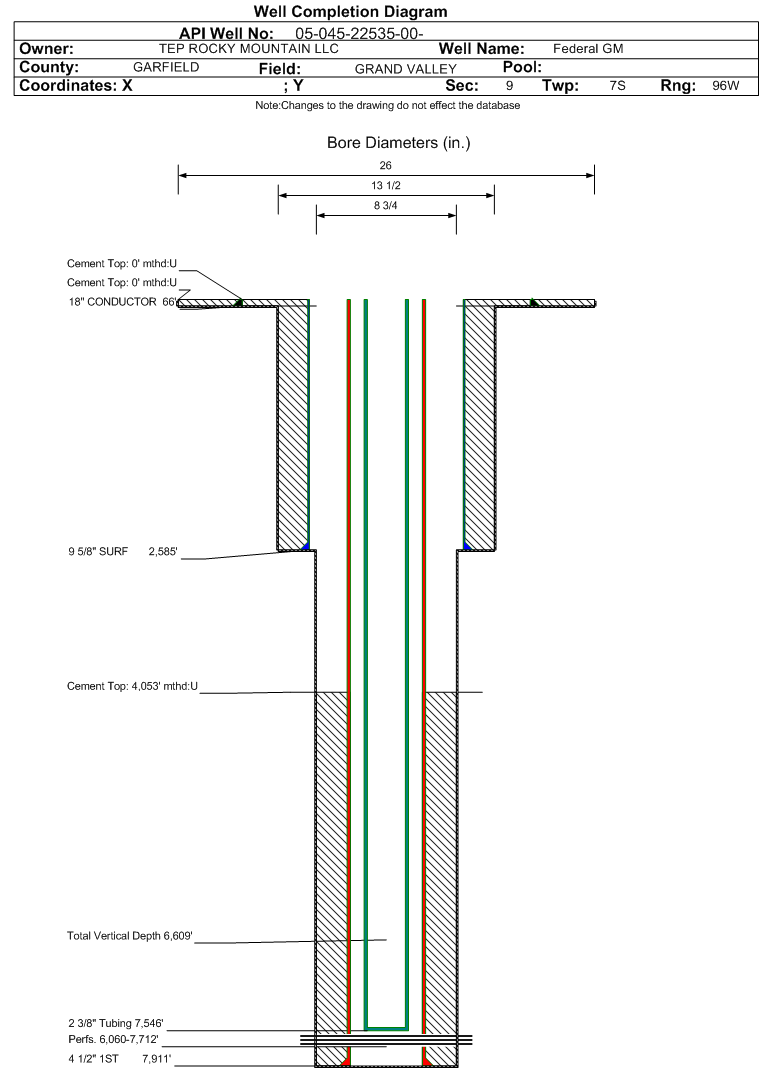

| Wellbore Completed | | Completion Date: | 7/4/2016 | | Spud Date: | 6/28/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 7921 ft. | Measured PB depth: | 7882 ft. | | True Vertical TD: | 6609 ft. | True Vertical PB depth: | 6570 ft. | | Top PZ Location: | Sec:9 Twp: 7S 96W | Footage: 1921 FNL 1566 FEL | | Bottom Hole Location: | Sec:9 Twp: 7S 96W | Footage: 1952 FNL 1506 FEL | | Log Types: | CBL/MUD/RPM/Triple Combo on 045-22531 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 66 ft., Weight: 47.4 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 66 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2585 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 695, Top: 0 ft., Bottom: 2585 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7911 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 865, Top: 4053 ft., Bottom: 7911 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2058 ft. | | | | | OHIO CREEK | 4598 ft. | | | | | MESAVERDE | 4766 ft. | | | | | WILLIAMS FORK | 4766 ft. | | | | | CAMEO | 7386 ft. | | | | | ROLLINS | 7793 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 9/7/2016 Interval Top: 6060 ft. Interval Bottom: 7712 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/2/2016 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/24/2016 | Treatment End Date: | 8/28/2016 | | Treatment Summary: | 37526 BBLS Slickwater; 704700 100/mesh; (summary)
| | Total fluid used in treatment (bbls): | 37526 | Max pressure during treatment (psi): | 4356 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.61 | | Recycled water used in treatment (bbls): | 37526 | Total flowback volume recovered (bbls): | 9018 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 704700 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7546 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/7/2016 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1081 | | CALC_MCF_GAS | 1329 | | CASING_PRESS | 2000 | | MCF_GAS | 1329 | | TUBING_PRESS | 1280 |
| | Perforation Data: | | Interval Top: | 6060 ft. | # Of Holes: | 168 | | Interval Bottom: | 7712 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 70 |
| Total Gas Produced (MCF) | 33960 |
| GOR | 485142 |
| GOR Determination | MCFE |
| Average BOE per Day | 16.243 |
| Average MCFE per Day | 94.196 |
| Federal Financial Assurance | i | Y |
|
|
