Wellbore #00 Wellbore Classification: GW Status: PR - 8/1/2016 Measured TD: 6965 ft. Vertical TD: 6605 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/1/2016 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 10/28/2016 | | Proposed Top PZ Location: | Sec:9 Twp: 7S 96W | Footage: 1688 FNL 1930 FWL | | Bottom Hole Location: | Sec:9 Twp: 7S 96W | Footage: 1688 FNL 1930 FWL | | Proposed Depth/Form: | 6949 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: Sec 9 N/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 266, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6949 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 732, Top: 3736 ft., Bottom: 6949 ft. |
| | |

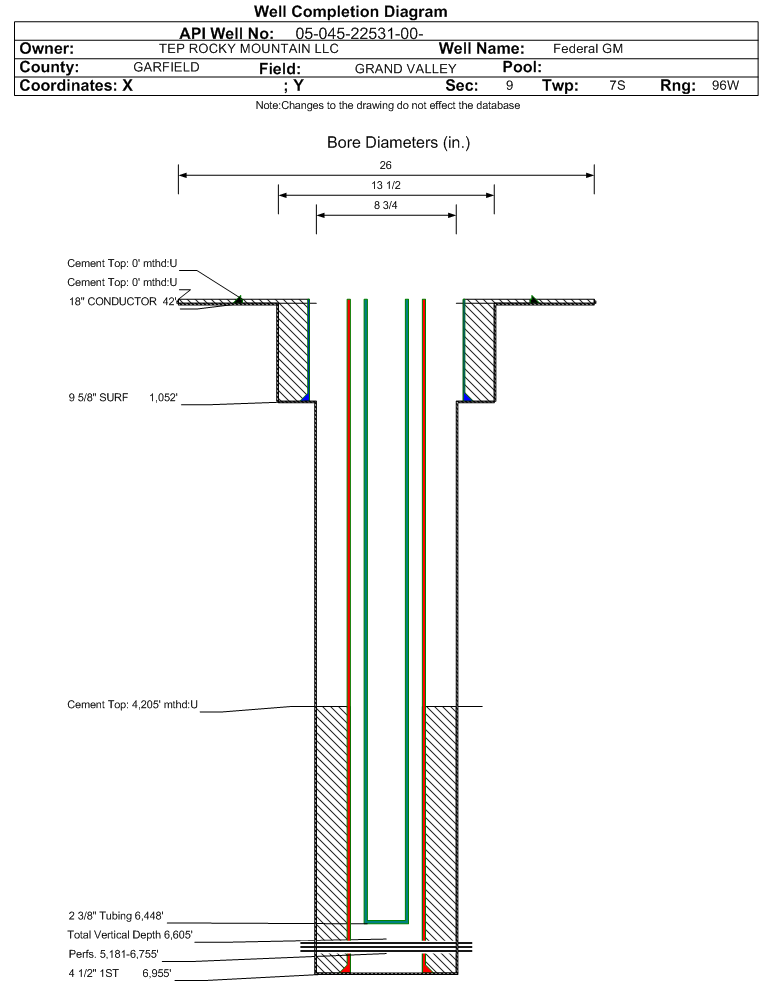

| Wellbore Completed | | Completion Date: | 6/12/2016 | | Spud Date: | 6/7/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 6965 ft. | Measured PB depth: | 6891 ft. | | True Vertical TD: | 6605 ft. | True Vertical PB depth: | 6531 ft. | | Top PZ Location: | Sec:9 Twp: 7S 96W | Footage: 1655 FNL 1937 FWL | | Bottom Hole Location: | Sec:9 Twp: 7S 96W | Footage: 1686 FNL 1950 FWL | | Log Types: | CBL/MUD/Triple Combo | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 42 ft., Weight: 47.4 , Citings Type: ACTUAL | | Cement: | Sacks: 16, Top: 0 ft., Bottom: 42 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1052 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 1052 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6955 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 800, Top: 4205 ft., Bottom: 6955 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2283 ft. | | | | | OHIO CREEK | 3895 ft. | | | | | MESAVERDE | 3933 ft. | | | | | WILLIAMS FORK | 3933 ft. | | | | | CAMEO | 6394 ft. | | | | | ROLLINS | 6845 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 8/1/2016 Interval Top: 5181 ft. Interval Bottom: 6755 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/5/2016 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/1/2016 | Treatment End Date: | 8/4/2016 | | Treatment Summary: | 37368 BBLS Slickwater; 651000 100/mesh; (summary)
| | Total fluid used in treatment (bbls): | 37368 | Max pressure during treatment (psi): | 3708 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 8 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.55 | | Recycled water used in treatment (bbls): | 37368 | Total flowback volume recovered (bbls): | 6378 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 651000 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6448 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/1/2016 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1083 | | CALC_MCF_GAS | 1055 | | CASING_PRESS | 1775 | | MCF_GAS | 1055 | | TUBING_PRESS | 1100 |
| | Perforation Data: | | Interval Top: | 5181 ft. | # Of Holes: | 192 | | Interval Bottom: | 6755 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 57 |
| Total Gas Produced (MCF) | 27627 |
| GOR | 484684 |
| GOR Determination | MCFE |
| Average BOE per Day | 13.205 |
| Average MCFE per Day | 76.595 |
| Federal Financial Assurance | i | Y |
|
|
