Wellbore #00 Wellbore Classification: GW Status: PR - 10/1/2016 Measured TD: 7071 ft. Vertical TD: 6552 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/1/2016 | | Wellbore Permit | Directional | | Permit #: | | Expiration Date: | 10/28/2016 | | Proposed Top PZ Location: | Sec:9 Twp: 7S 96W | Footage: 2308 FNL 1423 FWL | | Bottom Hole Location: | Sec:9 Twp: 7S 96W | Footage: 2308 FNL 1423 FWL | | Proposed Depth/Form: | 7064 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: Sec 9 N/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1568 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 406, Top: 0 ft., Bottom: 1568 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7064 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 736, Top: 3836 ft., Bottom: 7064 ft. |
| | |

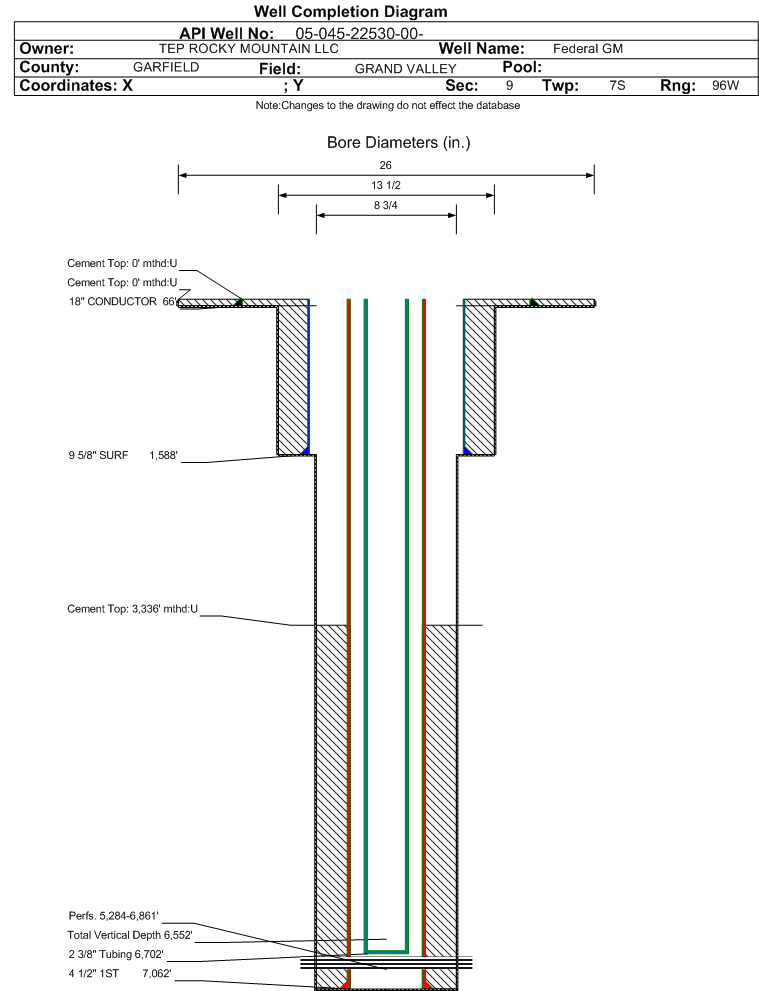

| Wellbore Completed | | Completion Date: | 7/15/2016 | | Spud Date: | 7/10/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 7071 ft. | Measured PB depth: | 6978 ft. | | True Vertical TD: | 6552 ft. | True Vertical PB depth: | 6459 ft. | | Top PZ Location: | Sec:9 Twp: 7S 96W | Footage: 2271 FNL 1445 FWL | | Bottom Hole Location: | Sec:9 Twp: 7S 96W | Footage: 2295 FNL 1430 FWL | | Log Types: | CBL/MUD/RPM/Triple Combo on 045-22531 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 66 ft., Weight: 47.4 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 66 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1588 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 410, Top: 0 ft., Bottom: 1588 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7062 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 835, Top: 3336 ft., Bottom: 7062 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 1268 ft., Depth: 1730 ft., Bottom: 1734 ft., Sacks: 35, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2267 ft. | | | | | OHIO CREEK | 4000 ft. | | | | | MESAVERDE | 4077 ft. | | | | | WILLIAMS FORK | 4077 ft. | | | | | CAMEO | 6509 ft. | | | | | ROLLINS | 6937 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 9/7/2016 Interval Top: 5284 ft. Interval Bottom: 6861 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/4/2016 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/24/2016 | Treatment End Date: | 8/28/2016 | | Treatment Summary: | 36123 BBLS Slickwater; 667500 100/mesh; (summary)
| | Total fluid used in treatment (bbls): | 36123 | Max pressure during treatment (psi): | 4178 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.62 | | Recycled water used in treatment (bbls): | 36123 | Total flowback volume recovered (bbls): | 6653 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 667500 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6702 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/7/2016 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1071 | | CALC_MCF_GAS | 1313 | | CASING_PRESS | 1900 | | MCF_GAS | 1313 | | TUBING_PRESS | 1250 |
| | Perforation Data: | | Interval Top: | 5284 ft. | # Of Holes: | 168 | | Interval Bottom: | 6861 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 67 |
| Total Gas Produced (MCF) | 32877 |
| GOR | 490701 |
| GOR Determination | MCFE |
| Average BOE per Day | 15.716 |
| Average MCFE per Day | 91.148 |
| Federal Financial Assurance | i | Y |
|
|
