Wellbore #00 Wellbore Classification: GW Status: PR - 5/31/2015 Measured TD: 7889 ft. Vertical TD: 6834 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/31/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 8/15/2016 | | Proposed Top PZ Location: | Sec:28 Twp: 6S 96W | Footage: 1799 FNL 714 FEL | | Bottom Hole Location: | Sec:28 Twp: 6S 96W | Footage: 1799 FNL 714 FEL | | Proposed Depth/Form: | 7953 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-17 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1576 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 408, Top: 0 ft., Bottom: 1576 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7953 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 781, Top: , Bottom: 7953 ft. |
| | |

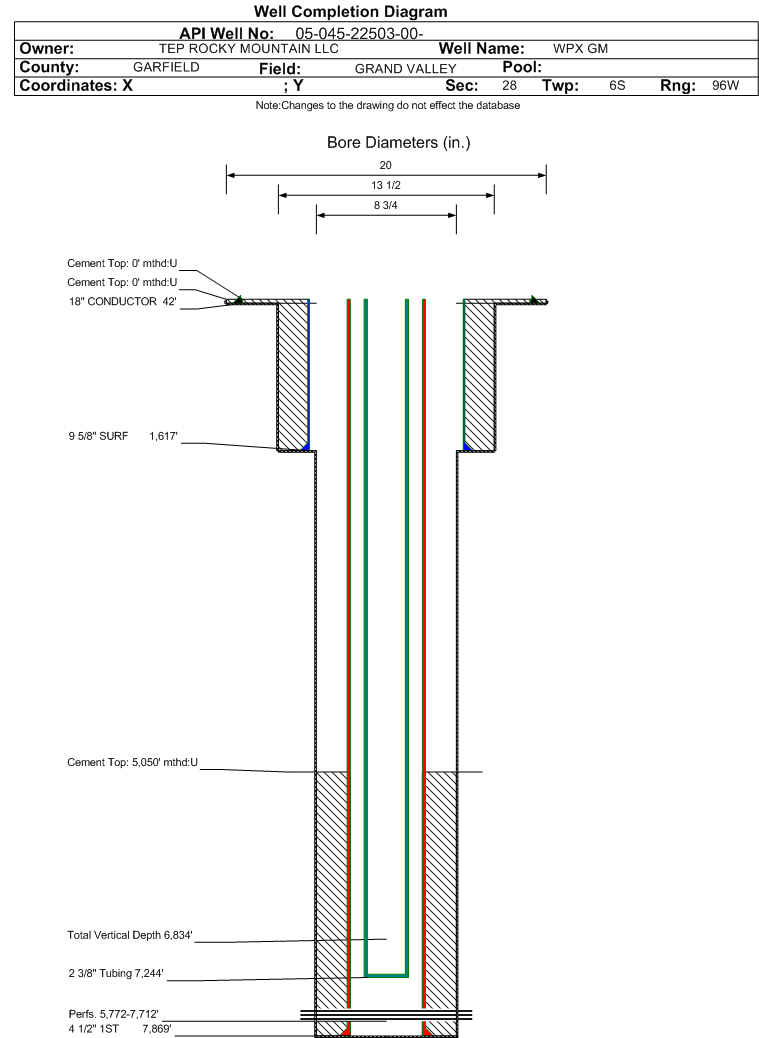

| Wellbore Completed | | Completion Date: | 1/8/2015 | | Spud Date: | 12/30/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 7889 ft. | Measured PB depth: | 7838 ft. | | True Vertical TD: | 6834 ft. | True Vertical PB depth: | 6783 ft. | | Top PZ Location: | Sec:28 Twp: 6S 96W | Footage: 1833 FNL 753 FEL | | Bottom Hole Location: | Sec:28 Twp: 6S 96W | Footage: 1800 FNL 712 FEL | | Log Types: | RPM/CBL/MUD; No OH logs were run on this well; OH logs were run on the GM 433-28 API# 05-045-22508 and GM 522-28 API# 05-045-22499. | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 18 in., Top: 0 ft., Depth: 42 ft., Weight: 47.4 , Citings Type: ACTUAL | | Cement: | Sacks: 16, Top: 0 ft., Bottom: 42 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1617 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 390, Top: 0 ft., Bottom: 1617 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7869 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1100, Top: 5050 ft., Bottom: 7869 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2817 ft. | | | | | MESAVERDE | 4683 ft. | | | | | WILLIAMS FORK | 4683 ft. | | | | | CAMEO | 7310 ft. | | | | | ROLLINS | 7761 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 5/31/2015 Interval Top: 5772 ft. Interval Bottom: 7712 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/8/2015 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/2/2015 | Treatment End Date: | 4/6/2015 | | Treatment Summary: | 1373 Gals 7 ½% HCL; 35714 Bbls Slickwater; 1374900 # 40/70 Sand (Summary) | | Total fluid used in treatment (bbls): | 35747 | Max pressure during treatment (psi): | 5686 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | 33 | Min frac gradient (psi/ft): | 0.58 | | Recycled water used in treatment (bbls): | 35714 | Total flowback volume recovered (bbls): | 5492 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1374900 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7244 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/31/2015 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1069 | | CALC_MCF_GAS | 1127 | | CASING_PRESS | 1599 | | MCF_GAS | 1127 | | TUBING_PRESS | 1381 |
| | Perforation Data: | | Interval Top: | 5772 ft. | # Of Holes: | 336 | | Interval Bottom: | 7712 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 56 |
| Total Gas Produced (MCF) | 28196 |
| GOR | 503500 |
| GOR Determination | MCFE |
| Average BOE per Day | 13.460 |
| Average MCFE per Day | 78.073 |
| Federal Financial Assurance | i | Y |
|
|
