Wellbore #00 Wellbore Classification: GW Status: PR - 5/4/2015 Measured TD: 7490 ft. Vertical TD: 6865 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/4/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 8/15/2016 | | Proposed Top PZ Location: | Sec:28 Twp: 6S 96W | Footage: 1515 FNL 2479 FWL | | Bottom Hole Location: | Sec:28 Twp: 6S 96W | Footage: 1515 FNL 2479 FWL | | Proposed Depth/Form: | 7446 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-13 , Unit Acreage: 320, Drill Unit: S.28:W/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1332 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 348, Top: 0 ft., Bottom: 1332 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7446 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 772, Top: , Bottom: 7446 ft. |
| | |

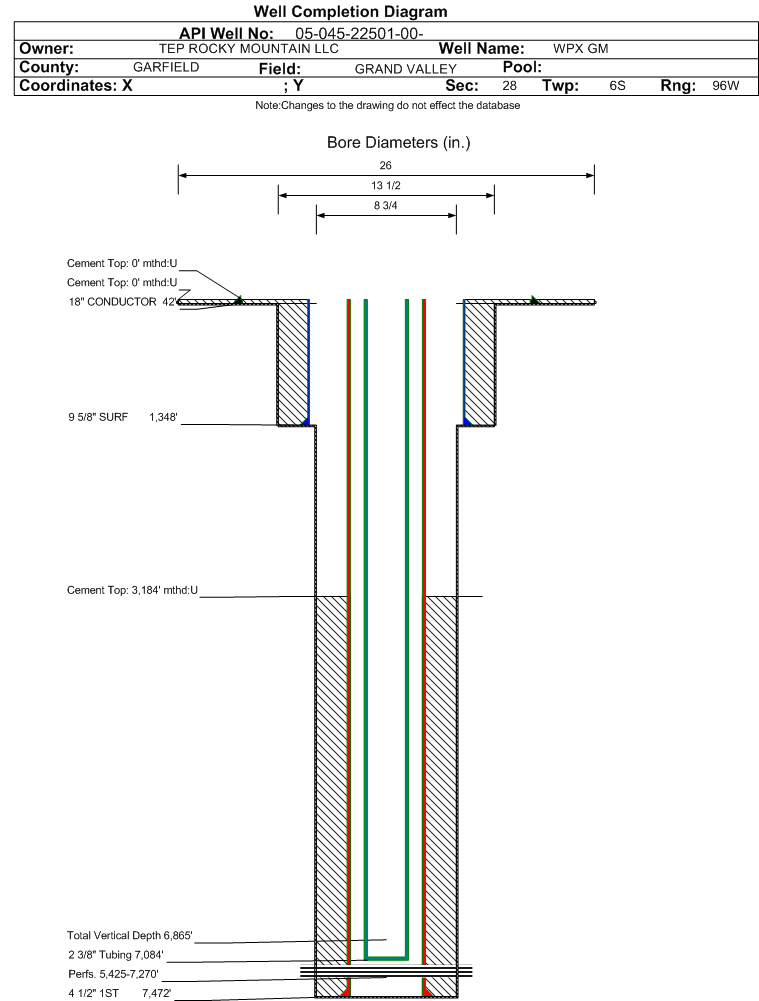

| Wellbore Completed | | Completion Date: | 2/10/2015 | | Spud Date: | 2/3/2015 | Spud Date Is: | ACTUAL | | Measured TD: | 7490 ft. | Measured PB depth: | 7440 ft. | | True Vertical TD: | 6865 ft. | True Vertical PB depth: | 6815 ft. | | Top PZ Location: | Sec:28 Twp: 6S 96W | Footage: 1550 FNL 2475 FWL | | Bottom Hole Location: | Sec:28 Twp: 6S 96W | Footage: 1496 FNL 2491 FWL | | Log Types: | CBL/RPM/MUD-No open hole logs were run on this well. Triple Combination logs were run on the GM 433-28 API# 05-045-22508 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 42 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 16, Top: 0 ft., Bottom: 42 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1348 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 345, Top: 0 ft., Bottom: 1348 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7472 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1085, Top: 3184 ft., Bottom: 7472 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2222 ft. | | | | | MESAVERDE | 4182 ft. | | | | | WILLIAMS FORK | 4182 ft. | | | | | CAMEO | 6844 ft. | | | | | ROLLINS | 7310 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 5/4/2015 Interval Top: 5425 ft. Interval Bottom: 7270 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/3/2015 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/28/2015 | Treatment End Date: | 4/1/2015 | | Treatment Summary: | 1129610# 40/70 Sand; 29950 Bbls Slickwater; (Summary)
*All flowback water entries are total estimates based on commingled volumes.
| | Total fluid used in treatment (bbls): | 29950 | Max pressure during treatment (psi): | 3630 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.71 | | Recycled water used in treatment (bbls): | 29950 | Total flowback volume recovered (bbls): | 10040 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1129610 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7084 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/4/2015 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1056 | | CALC_MCF_GAS | 633 | | CASING_PRESS | 1867 | | MCF_GAS | 633 | | TUBING_PRESS | 1496 |
| | Perforation Data: | | Interval Top: | 5425 ft. | # Of Holes: | 167 | | Interval Bottom: | 7270 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 73 |
| Total Gas Produced (MCF) | 41778 |
| GOR | 572301 |
| GOR Determination | MCFE |
| Average BOE per Day | 19.936 |
| Average MCFE per Day | 115.635 |
| Federal Financial Assurance | i | |
|
|
