Wellbore #00 Wellbore Classification: GW Status: PR - 3/1/2023 Measured TD: 6942 ft. Vertical TD: 6826 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 7/28/2016 | | Proposed Top PZ Location: | Sec:8 Twp: 7S 95W | Footage: 770 FNL 660 FEL | | Bottom Hole Location: | Sec:8 Twp: 7S 95W | Footage: 770 FNL 660 FEL | | Proposed Depth/Form: | 7101 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-70 , Unit Acreage: 320, Drill Unit: S. 8:N/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 84 , Citings Type: PLANNED | | Cement: | Sacks: 111, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1725 ft., Weight: 32 , Citings Type: PLANNED | | Cement: | Sacks: 357, Top: 0 ft., Bottom: 1725 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7101 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 492, Top: , Bottom: 7101 ft. |
| | |

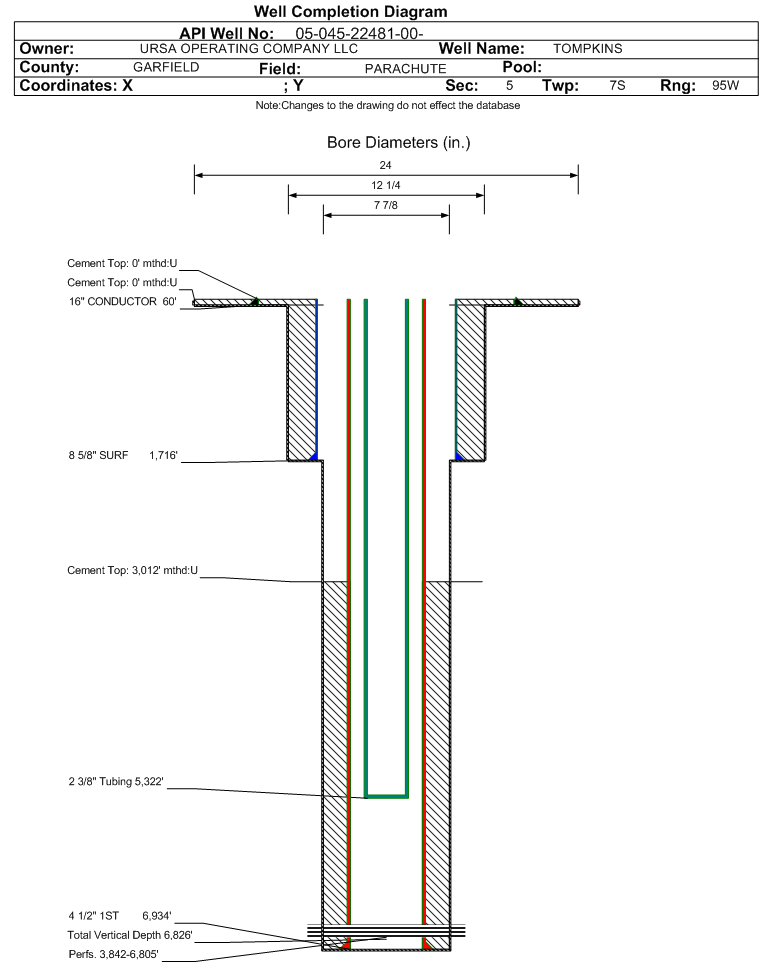

| Wellbore Completed | | Completion Date: | 6/25/2016 | | Spud Date: | 6/15/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 6942 ft. | Measured PB depth: | 6891 ft. | | True Vertical TD: | 6826 ft. | True Vertical PB depth: | 6775 ft. | | Top PZ Location: | Sec:8 Twp: 7S 95W | Footage: 521 FNL 628 FEL | | Bottom Hole Location: | Sec:8 Twp: 7S 95W | Footage: 698 FNL 642 FEL | | Log Types: | CBL/MUD/PULSED NEUTRON/Triple Combo in 045-22480 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 75 , Citings Type: ACTUAL | | Cement: | Sacks: 70, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1716 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 382, Top: 0 ft., Bottom: 1716 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6934 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 786, Top: 3012 ft., Bottom: 6934 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2102 ft. | | N | N | | OHIO CREEK | 3561 ft. | | N | N | | WILLIAMS FORK | 3711 ft. | | N | N | | CAMEO | 6287 ft. | | N | N | | ROLLINS | 6810 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 3/1/2023 Interval Top: 3842 ft. Interval Bottom: 6805 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/29/2016 | Choke Size: | 64.000 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 11/4/2016 | Treatment End Date: | 11/22/2016 | | Treatment Summary: | Frac'd with 181,146 bbls 2% KCL slickwater and no proppant. Frac pair with Tompkins 31C-08-07-95 (05-045-22479) and Tompkins 21B-08-07-95 (API 05-045-22821). | | Total fluid used in treatment (bbls): | 181146 | Max pressure during treatment (psi): | 7775 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 10 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.72 | | Recycled water used in treatment (bbls): | 181146 | Total flowback volume recovered (bbls): | 50567 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5322 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/23/2016 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1324 | | BTU_GAS | 1019 | | CALC_BBLS_H2O | 1324 | | CALC_MCF_GAS | 2109 | | CASING_PRESS | 450 | | MCF_GAS | 2109 | | TUBING_PRESS | 1200 |
| | Perforation Data: | | Interval Top: | 3842 ft. | # Of Holes: | 720 | | Interval Bottom: | 6805 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 24 |
| Total Gas Produced (MCF) | 40207 |
| GOR | 1675291 |
| GOR Determination | MCFE |
| Average BOE per Day | 19.087 |
| Average MCFE per Day | 110.703 |
| Federal Financial Assurance | i | |
|
|
