Wellbore #00 Wellbore Classification: GW Status: PR - 2/10/2015 Measured TD: 6476 ft. Vertical TD: 6284 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/10/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 7/28/2016 | | Proposed Top PZ Location: | Sec:12 Twp: 7S 96W | Footage: 220 FNL 1209 FWL | | Bottom Hole Location: | Sec:12 Twp: 7S 96W | Footage: 220 FNL 1209 FWL | | Proposed Depth/Form: | 6436 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-14 , Unit Acreage: 320, Drill Unit: W2W2,E2NW,E2SW | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 30, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1563 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 405, Top: 0 ft., Bottom: 1563 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6436 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 754, Top: 3120 ft., Bottom: 6436 ft. |
| | |

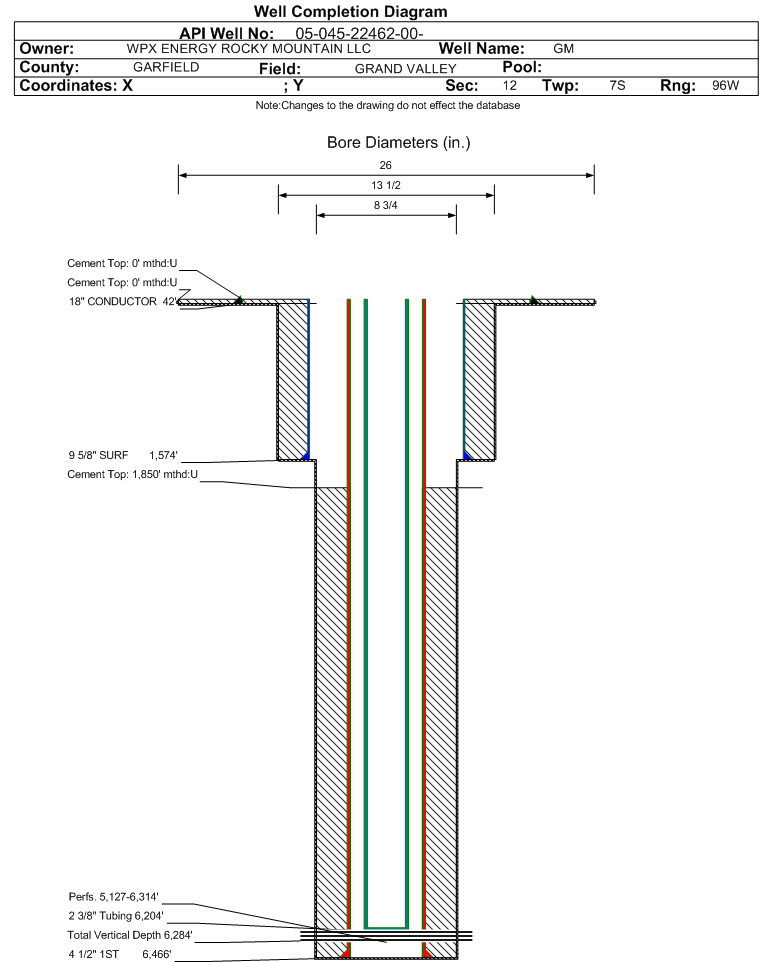

| Wellbore Completed | | Completion Date: | 12/21/2014 | | Spud Date: | 12/15/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 6476 ft. | Measured PB depth: | 6432 ft. | | True Vertical TD: | 6284 ft. | True Vertical PB depth: | 6240 ft. | | Top PZ Location: | Sec:12 Twp: 7S 96W | Footage: 195 FNL 1216 FWL | | Bottom Hole Location: | Sec:12 Twp: 7S 96W | Footage: 200 FNL 1203 FWL | | Log Types: | CBL, Mud, and Reservoir Performance Monitor (RPM) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 42 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 16, Top: 0 ft., Bottom: 42 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1574 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 395, Top: 0 ft., Bottom: 1574 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6466 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1075, Top: 1850 ft., Bottom: 6466 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 738 ft. | | N | | | MESAVERDE | 3339 ft. | | N | | | CAMEO | 5875 ft. | | N | | | ROLLINS | 6351 ft. | | N | |
Formation WFCM Formation Classification: GW Status: PR - 2/10/2015 Interval Top: 5127 ft. Interval Bottom: 6314 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/21/2015 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/20/2015 | Treatment End Date: | 1/22/2015 | | Treatment Summary: | 4 STAGES; 557400 # 40/70 Sand: 15086 Bbls Slickwater (Summary) | | Total fluid used in treatment (bbls): | 15086 | Max pressure during treatment (psi): | 3999 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 4 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.67 | | Recycled water used in treatment (bbls): | 15086 | Total flowback volume recovered (bbls): | 5082 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 557400 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6204 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/10/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1060 | | CALC_MCF_GAS | 509 | | CASING_PRESS | 1325 | | MCF_GAS | 509 | | TUBING_PRESS | 915 |
| | Perforation Data: | | Interval Top: | 5127 ft. | # Of Holes: | 96 | | Interval Bottom: | 6314 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 34 |
| Total Gas Produced (MCF) | 24446 |
| GOR | 719000 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.636 |
| Average MCFE per Day | 67.498 |
| Federal Financial Assurance | i | |
|
|
