Wellbore #00 Wellbore Classification: GW Status: PR - 10/1/2023 Measured TD: 7972 ft. Vertical TD: 7260 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 5/11/2016 | | Proposed Top PZ Location: | Sec:9 Twp: 7S 91W | Footage: 500 FSL 762 FEL | | Bottom Hole Location: | Sec:9 Twp: 7S 91W | Footage: 500 FSL 762 FEL | | Proposed Depth/Form: | 7968 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WFILS , Formation: WILLIAMS FORK-ILES , Order: 191-32 , Unit Acreage: 640, Drill Unit: All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 84# , Citings Type: PLANNED | | Cement: | Sacks: 111, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1100 ft., Weight: 32# , Citings Type: PLANNED | | Cement: | Sacks: 289, Top: 0 ft., Bottom: 1100 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7968 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 617, Top: , Bottom: 7968 ft. |
| | |

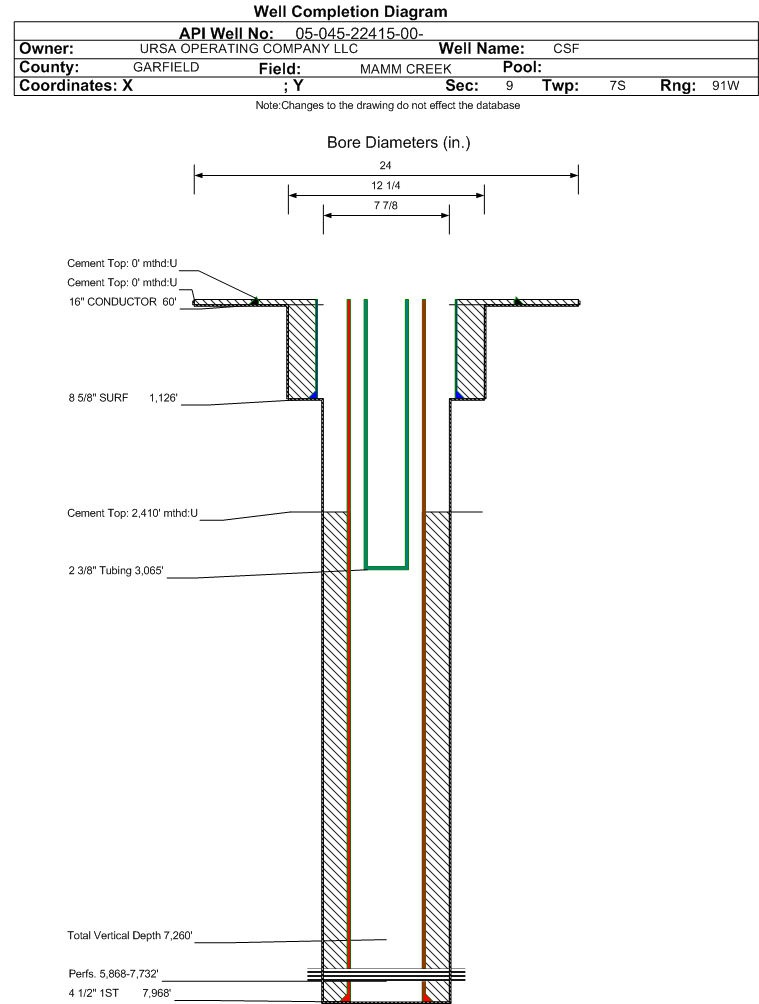

| Wellbore Completed | | Completion Date: | 7/15/2014 | | Spud Date: | 6/22/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 7972 ft. | Measured PB depth: | 7921 ft. | | True Vertical TD: | 7260 ft. | True Vertical PB depth: | 7209 ft. | | Top PZ Location: | Sec:9 Twp: 7S 91W | Footage: 500 FSL 762 FEL | | Bottom Hole Location: | Sec:9 Twp: 7S 91W | Footage: 500 FSL 762 FEL | | Log Types: | CBL, MUD, PULSED NEUTRON | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 84 , Citings Type: ACTUAL | | Cement: | Sacks: 70, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1126 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 280, Top: 0 ft., Bottom: 1126 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7968 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1075, Top: 2410 ft., Bottom: 7968 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3307 ft. | | N | N | | CAMEO | 6436 ft. | | N | N | | ROLLINS | 7759 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 10/1/2023 Interval Top: 5868 ft. Interval Bottom: 7732 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/8/2014 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/30/2014 | Treatment End Date: | 9/12/2014 | | Treatment Summary: | frac'd with 121,725 bbls 2% slickwater, 71 bbls 7.5% HCL Acid and 1,504,710 lbs of 20/40 sand. | | Total fluid used in treatment (bbls): | 121796 | Max pressure during treatment (psi): | 7650 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | 71 | Min frac gradient (psi/ft): | 0.68 | | Recycled water used in treatment (bbls): | 121725 | Total flowback volume recovered (bbls): | 36515 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1504710 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 3065 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/13/2014 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 418 | | BTU_GAS | 1209 | | CALC_BBLS_H2O | 418 | | CALC_MCF_GAS | 424 | | CASING_PRESS | 320 | | MCF_GAS | 424 |
| | Perforation Data: | | Interval Top: | 5868 ft. | # Of Holes: | 324 | | Interval Bottom: | 7732 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 69 |
| Total Gas Produced (MCF) | 26404 |
| GOR | 382666 |
| GOR Determination | MCFE |
| Average BOE per Day | 12.656 |
| Average MCFE per Day | 73.410 |
| Federal Financial Assurance | i | Y |
|
|
